1.6 Controls and Indicators

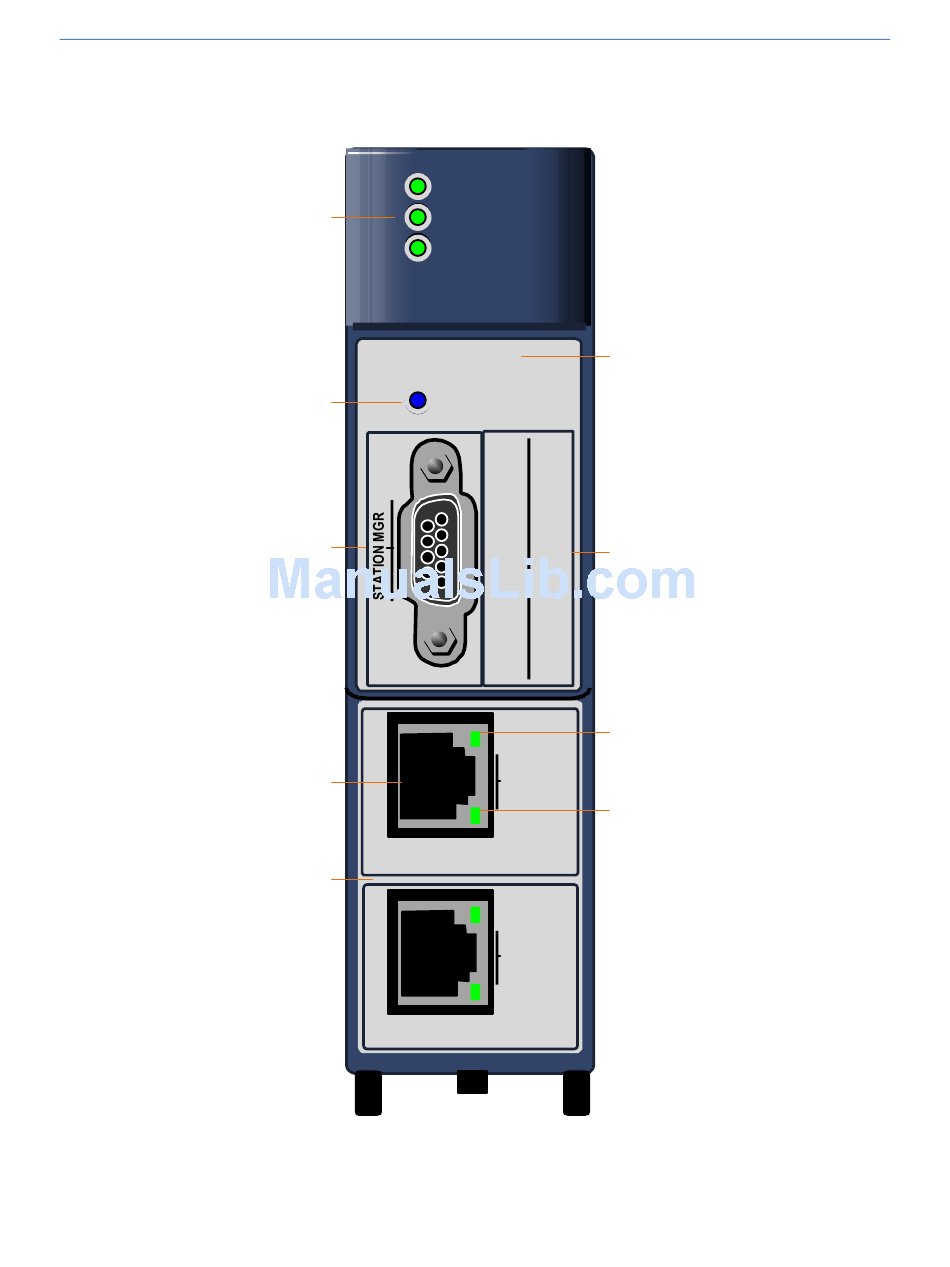

Figure 4 shows the front of the module and identifies its controls and indicators.
6
ETHERNET OK
LAN OK
Status LEDs
LOG EMPTY
Restart
Pushbutton
Station
Manager
Port
RS-232
RJ-45
Connector
10/100 Mbps ETHERNET
Ethernet
Ports (2)
10BaseT/
100BaseTX
10/100 Mbps ETHERNET

Figure 4: IEC 104 Server Module EIS001 Features at a Glance

PACSystems RX3i Ethernet 104 Server Module User Manual
EIS001
Module ID
ETHERNET
RESTART
MAC IP
100 Mbps
Port 1A
LINK
100 Mbps
Port 1B
LINK
Address
ID Area
Network
Speed LED
Network
Link OK LED
GFK-2949C
