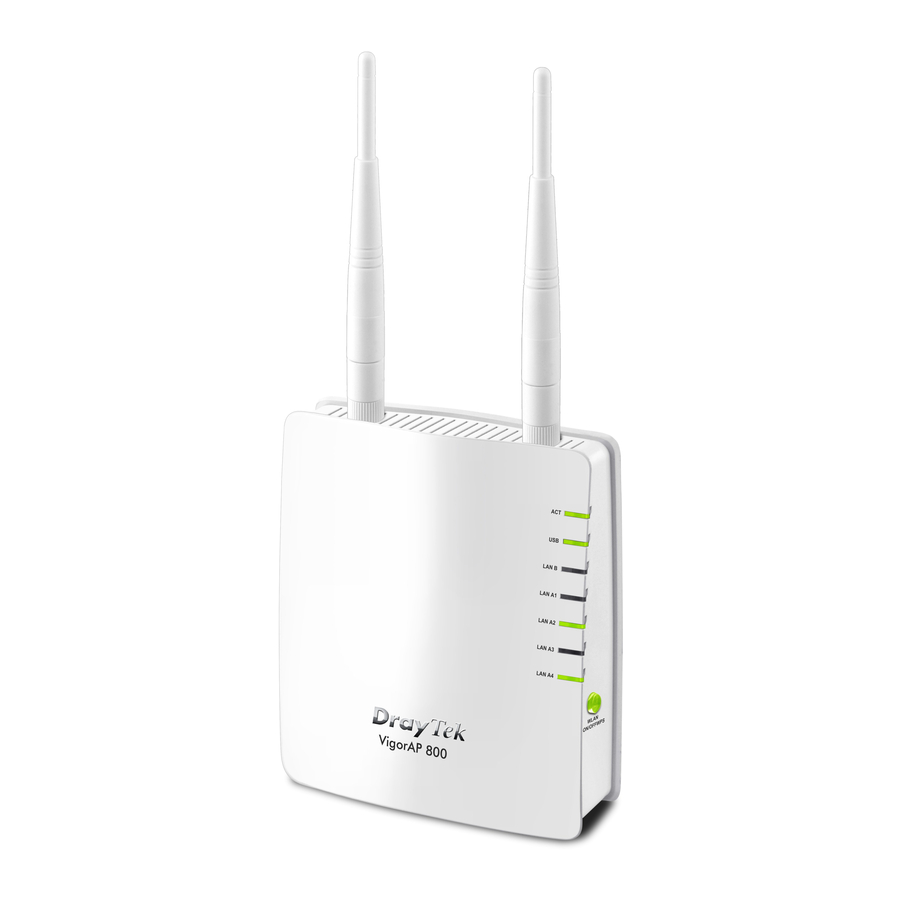

Draytek VigorAP 800 User Manual

802.11n access point
Hide thumbs Also See for VigorAP 800:
Table of Contents

Advertisement

Quick Links

i
VigorAP 800 User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Draytek VigorAP 800

Summary of Contents for Draytek VigorAP 800

  • Page 1 VigorAP 800 User’s Guide...
  • Page 2 VigorAP 800 User’s Guide...
  • Page 3 ’ ’ Version: 1.1 Firmware Version: V1.0.2 Date: 21/03/2011 VigorAP 800 User’s Guide...
  • Page 4 Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all modems will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. http://www.draytek.com VigorAP 800 User’s Guide...

  • Page 5: Federal Communication Commission Interference Statement

    No. 26, Fu Shing Road, Hukou Township, Hsinchu Industrial Park, Hsinchu County, Taiwan 303 Product: VigorAP 800 DrayTek Corp. declares that VigorAP 800 is in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
  • Page 6 VigorAP 800 User’s Guide...

  • Page 7: Table Of Contents

    3.4 Wireless LAN Settings for AP Mode ..................29 3.4.1 General Setup......................... 29 3.4.2 Security ........................... 32 3.4.3 Access Control........................ 35 3.4.4 WPS..........................37 3.4.5 AP Discovery ........................38 3.4.6 Station List ........................39 3.5 Wireless LAN Settings for Station-Infrastructure Mode ............40 VigorAP 800 User’s Guide...
  • Page 8 3.11.6 Firmware Upgrade ......................93 3.12 Diagnostics.......................... 93 3.13 Support Area ........................94 Application and Examples................97 4.1 Upgrade Firmware for Your Modem..................97 4.2 How to set different segments for different SSIDs in VigorAP 800 ........100 VigorAP 800 User’s Guide viii...
  • Page 9 5.2 Checking If the Network Connection Settings on Your Computer Is OK or Not ....104 5.3 Pinging the Modem from Your Computer................106 5.4 Backing to Factory Default Setting If Necessary ..............107 5.5 Contacting Your Dealer ....................... 108 VigorAP 800 User’s Guide...

  • Page 11: Preface

    Thank you for purchasing this VigorAP 800! With this high cost-efficiency VigorAP 800, computers and wireless devices which are compatible with 802.11n can connect to existing wired Ethernet network via this VigorAP 800, at the speed of 300Mbps. Easy install procedures allows any computer users to setup a network environment in very short time - within minutes, even inexperienced users.

  • Page 12: Led Indicators And Connectors

    Blinking Data is transmitting (sending/receiving). (Orange) WPS Button Press this button for 2 seconds to wait for client device making network connection through WPS. When the orange LED lights up, the WPS will be on. VigorAP 800 User’s Guide...
  • Page 13 Connector for future use. Restore the default settings. Usage: Turn on VigorAP 800. Press the button and keep for more than 10 seconds. Then VigorAP 800 will restart with the factory default configuration. ON/OFF: Power switch. PWR: Connecter for a power adapter.

  • Page 14: Hardware Installation

    Before starting to configure the modem, you have to connect your devices correctly. Connect VigorAP 800 to ADSL modem, router, or switch/hub in your network through the LAN A port of the access point by Ethernet cable.

  • Page 15: Wired Connection For Notebook In Wlan

    Connect VigorAP 800 to ADSL modem or router in your network through the LAN A port of the access point by Ethernet cable. Connect the A/C power adapter to the wall socket, and then connect it to the PWR connector of the access point.

  • Page 16: Wireless Connection

    Power on VigorAP 800. Check all LEDs on the front panel. ACT LED should be steadily on, LAN LEDs should be on if VigorAP 800 is correctly connected to the ADSL modem, router or switch/hub. (For the detailed information of LED status, please refer to section 1.2.)

  • Page 17: Poe Connection

    VigorAP 800 can gain the power from the connected switch, e.g., VigorSwitch P2260. PoE (Power over Ethernet) can break the install limitation caused by the fixed power supply. Connect VigorAP 800 to a switch in your network through the LAN A1 port of the access point by Ethernet cable.
  • Page 18 This page is left blank. VigorAP 800 User’s Guide...

  • Page 19: Network Configuration

    After the network connection is built, the next step you should do is setup VigorAP 800 with proper network parameters, so it can work properly in your network environment. Before you can connect to the access point and start configuration procedures, your computer must be able to get an IP address automatically (use dynamic IP address).
  • Page 20 Select Specify an IP address, then input the following settings in respective field and click OK when finish. IP address: 192.168.1.9 Subnet Mask: 255.255.255.0 VigorAP 800 User’s Guide...

  • Page 21: Windows 2000 Ip Address Setup

    Area Connection, and Local Area Connection Properties window will appear. Select Internet Protocol (TCP/IP), then click Properties. Select Use the following IP address, then input the following settings in respective field and click OK when finish. IP address: 192.168.1.9 Subnet Mask: 255.255.255.0 VigorAP 800 User’s Guide...

  • Page 22: Windows Xp Ip Address Setup

    Connections, and then double-click Local Area Connection, Local Area Connection Status window will appear, and then click Properties. Select Use the following IP address, then input the following settings in respective field and click OK when finish: IP address: 192.168.1.9 Subnet Mask: 255.255.255.0. VigorAP 800 User’s Guide...

  • Page 23: Windows Vista Ip Address Setup

    Connection Properties window will appear, select Internet Protocol Version 4 (TCP / IPv4), and then click Properties. Select Use the following IP address, then input the following settings in respective field and click OK when finish: IP address: 192.168.1.9 Subnet Mask: 255.255.255.0. VigorAP 800 User’s Guide...

  • Page 24: Accessing To Web User Interface

    IP address of the computer to be the same subnet as the default IP address of VigorAP 800 192.168.1.1. For the detailed information, please refer to the later section - Trouble Shooting of the guide.

  • Page 25: Changing Password

    Go to System Maintenance page and choose Administrator Password. Enter the new login password on the field of Password. Then click OK to continue. Now, the password has been changed. Next time, use the new password to access the Web Configurator for this modem. VigorAP 800 User’s Guide...

  • Page 26: Quick Start Wizard

    There are six operation modes for wireless connection. Settings for each mode are different. Wireless Mode At present, VigorAP 800 can connect to 11b only, 11g only, 11n only, Mixed (11b+11g) and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode.

  • Page 27: Configuring 2.4G Wireless Settings Based On The Operation Mode

    Click this button to open the Station List dialog. It provides the knowledge of connecting wireless clients now along with its status code. Click this button to open the AP Discovery dialog. VigorAP 800 AP Discovery can scan all regulatory channels and find working APs in the neighborhood.
  • Page 28 When you choose Station-Infrastructure, you will need to configure the following page to connect to one AP. When you choose AP Bridge-Point to Point, you will need to configure the following page. VigorAP 800 User’s Guide...
  • Page 29 When you choose AP Bridge-Point to Multi-Point, you will need to configure the following page. When you choose AP Bridge-WDS, you will need to configure the following page. VigorAP 800 User’s Guide...

  • Page 30: Configuring 5G Wireless Settings

    After finishing this web page configuration, please click Next to continue. VigorAP 800 offers 5G wireless connection capability. You can setup 5G features in Quick Start Wizard first. Once the USB 5G wireless dongle connects to VigorAP 800, it can work immediately.

  • Page 31: Finishing The Wireless Settings Wizard

    After finishing this web page configuration, please click Next to continue. When you see this page, it means the wireless setting wizard is almost finished. Just click Finish to save the settings and complete the setting procedure. VigorAP 800 User’s Guide...

  • Page 32: Online Status

    RX Packets Displays the total number of received packets at the LAN interface. TX Bytes Displays the total transmitted size at the LAN interface. RX Bytes Displays the total number of received size at the LAN interface. VigorAP 800 User’s Guide...

  • Page 33: Web Configuration

    Open a web browser on your PC and type http://192.168.1.2. The window will ask for typing username and password. Please type “admin/admin” on Username/Password for administration operation. Now, the Main Screen will appear. Be aware that “Admin mode” will be displayed on the bottom left side. VigorAP 800 User’s Guide...

  • Page 34: Operation Mode

    AP Bridge-Point to This mode can establish wireless connection with another Point VigorAP 800 using the same mode, and link the wired network which these two VigorAP 800s connected together. Only one access point can be connected in this mode.

  • Page 35: Lan

    Enable Server lets the modem assign IP address to every host in Enable Server / Disable Server the LAN. Disable Server lets you manually or use other DHCP server to assign IP address to every host in the LAN. VigorAP 800 User’s Guide...

  • Page 36: General Concepts For Wireless Lan

    In an Infrastructure Mode of wireless network, VigorAP 800 plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs will share the same Internet connection via VigorAP 800.
  • Page 37 Start PBC button or using PIN Code. On the side of VigorAP 800 series which served as an AP, press WPS button once on the front panel of VigorAP 800 or click Start PBC on web configuration interface. On the side of a station with network card installed, press Start PBC button of network card.
  • Page 38 VigorAP 800 User’s Guide...

  • Page 39: Wireless Lan Settings For Ap Mode

    Mode selected in section 3.1. By clicking the General Setup, a new web page will appear so that you could configure the SSID and the wireless channel. Please refer to the following figure for more information. VigorAP 800 User’s Guide...
  • Page 40 Enable Wireless LAN Check the box to enable wireless function. Mode At present, VigorAP 800 can connect to 11b only, 11g only, 11n only, Mixed (11b+11g) and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Enable 2 Subnet Check the box to enable the function for two independent subnets.
  • Page 41 Note: Vigor N61 wireless adapter supports this function. Therefore, you can use and install it into your PC for matching with Packet-OVERDRIVE (refer to the following picture of Vigor N61 wireless utility window, choose Enable for TxBURST on the tab of Option). VigorAP 800 User’s Guide...

  • Page 42: Security

    To apply WMM parameters for wireless data transmission, please WMM Capable click the Enable radio button. Antenna VigorAP 800 can be attached with two antennas to have good data transmission via wireless connection. However, if you have only one antenna attached, please choose 1T1R. Tx Power The default setting is the maximum (100%).
  • Page 43 Key) entered manually in this field below or automatically negotiated via 802.1x authentication. WEP/802.1x - The built-in RADIUS client feature enables VigorAP 800 to assist the remote dial-in user or a wireless station and the RADIUS server in performing mutual authentication. It enables centralized remote access authentication for network management.
  • Page 44 ASCII characters from 33(!) to 126(~) except '#' and ','. Such feature is available for WEP mode. 802.1x WEP Disable - Disable the WEP Encryption. Data sent to the AP will not be encrypted. VigorAP 800 User’s Guide...

  • Page 45: Access Control

    Click the link of RADIUS Server to access into the following page for more settings. Use internal RADIUS There is a RADIUS server built in VigorAP 800 which is used to authenticate the wireless client connecting to the access Server point.
  • Page 46 Delete the selected MAC address in the list. Edit the selected MAC address in the list. Edit Cancel Give up the access control set up. Click it to save the access control list. Cancel Clean all entries in the MAC address list. VigorAP 800 User’s Guide...

  • Page 47: Wps

    VigorAP 800 will wait for WPS requests from wireless clients about two minutes. The WPS LED on VigorAP 800 will blink fast when WPS is in progress. It will return to normal condition after two minutes. (You need to...

  • Page 48: Ap Discovery

    VigorAP 800 can scan all regulatory channels and find working APs in the neighborhood. Based on the scanning result, users will know which channel is clean for usage. Also, it can be used to facilitate finding an AP for a WDS link. Notice that during the scanning process (about 5 seconds), no client is allowed to connect to Vigor.

  • Page 49: Station List

    LAN MAC address of client. Only the valid MAC address that has been configured can access the wireless LAN interface. Click this button to add current typed MAC address into Access Control. VigorAP 800 User’s Guide...

  • Page 50: Wireless Lan Settings For Station-Infrastructure Mode

    Enable Wireless LAN Check the box to enable wireless function. Mode At present, VigorAP 800 can connect to 11 b only, 11 g only, 11 n only, Mixed (11b+11g), Mixed (11b+11g+11n) and Mixed (11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode.
  • Page 51 TxBURST on the tab of Option). Mac Clone Check this box and manually enter the MAC address for Station mode driver. To add a new wireless profile for the stations, click Add. The following dialog box will appear. VigorAP 800 User’s Guide...
  • Page 52 Set the RTS threshold of wireless radio. Do not modify default RTS Threshold value if you don’t know what it is, default value is 2347. Fragment Threshold Set the Fragment threshold of wireless radio. Do not modify VigorAP 800 User’s Guide...
  • Page 53 Therefore WEP is still a good choice for you if you have such kind of client in your network environment. There are two types of WEP key length: 64-bit and 128-bit. Using 128-bit is safer than 64-bit, but it will reduce some data VigorAP 800 User’s Guide...
  • Page 54 You can set up to four sets of WEP key, and you can decide Default Key which key is being used as default here. If you don’t know which one you should use, select ‘Key 1’. Below shows an example for a wireless profile created. VigorAP 800 User’s Guide...

  • Page 55: Site Survey

    Add Profile The system will add a profile automatically for you to connect with the wireless AP that you choose. This page displays the statistics for data transmission and receiving between the access point and the stations. VigorAP 800 User’s Guide...

  • Page 56: Wps (Wi-Fi Protected Setup)

    Display the encryption setting of the access points. If you have selected the access point with security setting, you have to go to 2-7 Wireless Security to set the same security with the access point you want to associate. Ver. (Version) Display the version of WPS. VigorAP 800 User’s Guide...
  • Page 57 Note: When you’re using PBC type WPS setup, you must press PBC button (hardware or software) of wireless client within 2 minutes. If you didn’t press PBC button of wireless client within this time period, please press PBC button (hardware or software) of this access point again. VigorAP 800 User’s Guide...

  • Page 58: Wireless Lan Settings For Ap Bridge-Point To Point/Ap Bridge-Point To Multi-Point Mode

    Wireless LAN menu items will include General Setup, AP Discovery and WDS AP Status. AP Bridge-Point to Point allows VigorAP 800 to connect to another VigorAP 800 which uses the same mode. All wired Ethernet clients of both VigorAP 800s will be connected together.
  • Page 59 Enable Wireless LAN Check the box to enable wireless function. Mode At present, VigorAP 800 can connect to 11b only, 11g only, 11n only, Mixed (11b+11g) and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Channel Means the channel of frequency of the wireless LAN. The default channel is 11.
  • Page 60 To apply WMM parameters for wireless data transmission, please click the Enable radio button. Antenna VigorAP 800 can be attached with two antennas to have good data transmission via wireless connection. However, if you have only one antenna attached, please choose 1T1R.

  • Page 61: Ap Discovery

    This page is used to scan the existence of the APs on the wireless LAN. Yet, only the AP which is in the same channel of VigorAP 800 can be found. Please click Scan to discover all the connected APs.

  • Page 62: Wds Ap Status

    VigorAP 800 can display the status such as MAC address, physical mode, power save and bandwidth for the working AP connected with WDS. Click Refresh to get the newest information. VigorAP 800 User’s Guide...

  • Page 63: Wireless Lan Settings For Ap Bridge-Wds Mode

    General Setup, Security, Access Control, WPS, AP Discovery and Station List. By clicking the General Setup, a new web page will appear so that you could configure the Phy mode, security, Tx Burst and choose proper mode. Please refer to the following figure for more information. VigorAP 800 User’s Guide...
  • Page 64 Enable Wireless LAN Check the box to enable wireless function. Mode At present, VigorAP 800 can connect to 11b only, 11g only, 11n only, Mixed (11b+11g) and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. VigorAP 800 User’s Guide...
  • Page 65 Depending on the wireless utility, the user may only see the information except SSID or just cannot see any thing about VigorAP 800 while site surveying. The system allows you to set three sets of SSID for different usage. SSID Set a name for VigorAP 800 to be identified.
  • Page 66 Note: Vigor N61 wireless adapter supports this function. Therefore, you can use and install it into your PC for matching with Packet-OVERDRIVE (refer to the following picture of Vigor N61 wireless utility window, choose Enable for TxBURST on the tab of Option). VigorAP 800 User’s Guide...
  • Page 67 To apply WMM parameters for wireless data transmission, WMM Capable please click the Enable radio button. Antenna VigorAP 800 can be attached with two antennas to have good data transmission via wireless connection. However, if you have only one antenna attached, please choose 1T1R. Tx Power The default setting is the maximum (100%).

  • Page 68: Security

    802.1x authentication. WEP/802.1x - The built-in RADIUS client feature enables VigorAP 800 to assist the remote dial-in user or a wireless station and the RADIUS server in performing mutual VigorAP 800 User’s Guide...
  • Page 69 10 hexadecimal values in 64-bit encryption level, or restricted to 13 ASCII characters or 26 hexadecimal values in 128-bit encryption level. The allowed content is the ASCII characters from 33(!) to 126(~) except '#' and ','. Such feature is VigorAP 800 User’s Guide...

  • Page 70: Access Control

    Click the link of RADIUS Server to access into the following page for more settings. Use internal RADIUS There is a RADIUS server built in VigorAP 800 which is used Server to authenticate the wireless client connecting to the access point.
  • Page 71 Delete the selected MAC address in the list. Edit Edit the selected MAC address in the list. Cancel Give up the access control set up. Click it to save the access control list. Cancel Clean all entries in the MAC address list. VigorAP 800 User’s Guide...

  • Page 72: Wps

    This page is used to scan the existence of the APs on the wireless LAN. Yet, only the AP which is in the same channel of VigorAP 800 can be found. Please click Scan to discover all the connected APs.
  • Page 73 SSID Display the SSID of the AP scanned by VigorAP 800. BSSID Display the MAC address of the AP scanned by VigorAP 800. RSSI Display the signal strength of the access point. RSSI is the abbreviation of Receive Signal Strength Indication.

  • Page 74: Wds Ap Status

    VigorAP 800 can display the status such as MAC address, physical mode, power save and bandwidth for the working AP connected with WDS. Click Refresh to get the newest information. Station List provides the knowledge of connecting wireless clients now along with its status code.

  • Page 75: Wireless Lan Settings For Universal Repeater Mode

    General Setup, Security, WPS, AP Discovery, Universal Repeater and Station List. By clicking the General Setup, a new web page will appear so that you could configure the SSID and the wireless channel. Please refer to the following figure for more information. VigorAP 800 User’s Guide...
  • Page 76 Enable Wireless LAN Check the box to enable wireless function. Mode At present, VigorAP 800 can connect to 11b only, 11g only, 11n only, Mixed (11b+11g) and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Enable 2 Subnet Check the box to enable the function for two independent (Simulate 2 APs) subnets.
  • Page 77 Depending on the wireless utility, the user may only see the information except SSID or just cannot see any thing about VigorAP 800 while site surveying. The system allows you to set three sets of SSID for different usage. SSID Set a name for VigorAP 800 to be identified.
  • Page 78 Note: Vigor N61 wireless adapter supports this function. Therefore, you can use and install it into your PC for matching with Packet-OVERDRIVE (refer to the following picture of Vigor N61 wireless utility window, choose Enable for TxBURST on the tab of Option). VigorAP 800 User’s Guide...

  • Page 79: Security

    To apply WMM parameters for wireless data transmission, please click the Enable radio button. Antenna VigorAP 800 can be attached with two antennas to have good data transmission via wireless connection. However, if you have only one antenna attached, please choose 1T1R.
  • Page 80 802.1x authentication. WEP/802.1x - The built-in RADIUS client feature enables VigorAP 800 to assist the remote dial-in user or a wireless station and the RADIUS server in performing mutual authentication. It enables centralized remote access authentication for network management.
  • Page 81 Click the link of RADIUS Server to access into the following page for more settings. Use internal RADIUS There is a RADIUS server built in VigorAP 800 which is used Server to authenticate the wireless client connecting to the access point.
  • Page 82 Session Timeout Set the maximum time of service provided before re-authentication. Set to zero to perform another authentication immediately after the first authentication has successfully completed. (The unit is second.) VigorAP 800 User’s Guide...

  • Page 83: Access Control

    Delete the selected MAC address in the list. Edit Edit the selected MAC address in the list. Cancel Give up the access control set up. Click it to save the access control list. Clean all entries in the MAC address list. Cancel VigorAP 800 User’s Guide...

  • Page 84: Wps

    VigorAP 800 will wait for WPS requests from wireless clients about two minutes. The WPS LED on t VigorAP 800 will blink fast when WPS is in progress. It will return to normal condition after two minutes. (You need to setup...

  • Page 85: Ap Discovery

    This page is used to scan the existence of the APs on the wireless LAN. Yet, only the AP which is in the same channel of VigorAP 800 can be found. Please click Scan to discover all the connected APs.

  • Page 86: Universal Repeater

    AutoSelect to let system determine for you. Security Mode There are several modes provided for you to choose. Each mode will bring up different parameters (e.g., WEP keys, Pass Phrase) for you to configure. VigorAP 800 User’s Guide...
  • Page 87 33(!) to 126(~) except '#' and ','. Encryption Type Select TKIP or AES as the algorithm for WPA. Pass Phrase Either 8~63 ASCII characters, such as 012345678 (or 64 Hexadecimal digits leading by 0x, such as "0x321253abcde..."). VigorAP 800 User’s Guide...

  • Page 88: Station List

    LAN MAC address of client. Only the valid MAC address that has been configured can access the wireless LAN interface. Click this button to add current typed MAC address into Access Control. VigorAP 800 User’s Guide...

  • Page 89: Wireless Lan (5G) Settings For Ap Mode

    The AP mode allows wireless clients to connect to access point and exchange data with the devices connected to the wired network. If no 5G dongle connected to VigorAP 800, an error message will be displayed and no function in this menu can be activated.

  • Page 90: Security

    VigorAP 800 while site surveying. The system allows you to set three sets of SSID for different usage. SSID Set a name for VigorAP 800 to be identified. Default settings are DrayTek-LAN-A and DrayTek-LAN-B. When Enable 2 Subnet is enabled, you can specify subnet interface (LAN-A or LAN-B) for each SSID by using the drop down menu.
  • Page 91 802.1x authentication. WEP/802.1x - The built-in RADIUS client feature enables VigorAP 800 to assist the remote dial-in user or a wireless station and the RADIUS server in performing mutual authentication. It enables centralized remote access authentication for network management.
  • Page 92 128-bit encryption level. The allowed content is the ASCII characters from 33(!) to 126(~) except '#' and ','. Such feature is available for WEP mode. 802.1x WEP Disable - Disable the WEP Encryption. Data sent to the AP will not be encrypted. VigorAP 800 User’s Guide...

  • Page 93: Access Control

    Click the link of RADIUS Server to access into the following page for more settings. Use internal RADIUS There is a RADIUS server built in VigorAP 800 which is used to authenticate the wireless client connecting to the access Server point.

  • Page 94: Ap Discovery

    This page is used to scan the existence of the APs on the wireless LAN. Yet, only the AP which is in the same channel of VigorAP 800 can be found. Please click Scan to discover all the connected APs.

  • Page 95: Station List

    SSID Display the SSID of the AP scanned by VigorAP 800. BSSID Display the MAC address of the AP scanned by VigorAP 800. RSSI Display the signal strength of the access point. RSSI is the abbreviation of Receive Signal Strength Indication.
  • Page 96 LAN MAC address of client. Only the valid MAC address that has been configured can access the wireless LAN interface. Click this button to add current typed MAC address into Access Control. VigorAP 800 User’s Guide...

  • Page 97: Radius Server

    VigorAP 800 offers a built-in RADIUS server to authenticate the wireless client that tries to connect to VigorAP 800. The AP can accept the wireless connection authentication requested by wireless clients. Enable RADIUS Server Check it to enable the internal RADIUS server.

  • Page 98: System Maintenance

    Display the period that such device connects to Internet. System Uptime Operation Mode Display the operation mode that the device used. System ------- Memory total Display the total memory of your system. Memory left Display the remaining memory of your system. LAN------- VigorAP 800 User’s Guide...

  • Page 99: Tr-069

    Auto Configuration Server user’s manual for detailed information. CPE Settings Such information is useful for Auto Configuration Server (ACS). Enable– Check the box to allow the CPE Client to connect with Auto Configuration Server. VigorAP 800 User’s Guide...

  • Page 100: Administrator Password

    On – Choose the interface (LAN-A or LAN-B) for VigorAP 800 connecting to ACS server. Port – Sometimes, port conflict might be occurred. To solve such problem, you might change port number for CPE. The default setting is Enable. Please set interval time or schedule Periodic Inform time for the AP to send notification to CPE.

  • Page 101: Configuration Backup

    Click Backup button to get into the following dialog. Click Save button to open another dialog for saving configuration as a file. In Save As dialog, the default filename is config.cfg. You could give it another name by yourself. VigorAP 800 User’s Guide...

  • Page 102: Reboot System

    Note: When the system pops up Reboot System web page after you configure web settings, please click OK to reboot your modem for ensuring normal operation and preventing unexpected errors of the modem in the future. VigorAP 800 User’s Guide...

  • Page 103: Firmware Upgrade

    Click System Maintenance>> Firmware Upgrade to launch the Firmware Upgrade Utility. Click Browse to locate the newest firmware from your hard disk and click Upgrade. Diagnostic Tools provide a useful way to view or diagnose the status of your VigorAP 800. At present, only System Log is offered.

  • Page 104: Support Area

    When you click the menu item under Support Area, you will be guided to visit www.draytek.com and open the corresponding pages directly. Click Support Area>>Application Note, the following web page will be displayed. Click Support Area>>FAQ, the following web page will be displayed. VigorAP 800 User’s Guide...
  • Page 105 Click Support Area>>Product Registration, the following web page will be displayed. VigorAP 800 User’s Guide...
  • Page 106 This page is left blank. VigorAP 800 User’s Guide...

  • Page 107: Application And Examples

    3. Access into Support >> Downloads. Please find out Utility menu and click it. 4. Click on the link of Router Tools to download the file. After downloading the files, please decompressed the file onto your host. VigorAP 800 User’s Guide...
  • Page 108 You will find out two files with different extension names, xxxx.all (keep the old custom settings) and xxxx.rst (reset all the custom settings to default settings). Choose any one of them that you need. VigorAP 800 User’s Guide...
  • Page 109 10. Click Send. 11. Now the firmware update is finished. VigorAP 800 User’s Guide...

  • Page 110: How To Set Different Segments For Different Ssids In Vigorap 800

    SSIDs with different network segments for reaching the target of managing wireless network. See the following figure. In the above figure, VigorAP 800 is used to control the wireless network connection. It can separate the wireless traffic between accessing internal server and the usage of video.
  • Page 111 LAN-B for SSID 2. Specify the wireless channel. Then, click OK to save the configuration. Open Wireless LAN >> Security Settings. Set the encryption method and set the password for SSID 1 and SSID 2 respectively. VigorAP 800 User’s Guide...
  • Page 112 SSID 1 can get the IP address assigned by LAN-A 192.168.1.0/24 for accessing the internal server. The wireless equipment connecting to VigorAP 800 with SSID 2 can get the IP address assigned by LAN-B 192.168.2.0/24 for using the video/audio uploading and downloading services.

  • Page 113: Trouble Shooting

    Power on the modem. Make sure the POWER LED, ACT LED and LAN LED are bright. If not, it means that there is something wrong with the hardware status. Simply back to “1.3 Hardware Installation” to execute the hardware installation again. And then, try again. VigorAP 800 User’s Guide...
  • Page 114 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. VigorAP 800 User’s Guide...
  • Page 115 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. VigorAP 800 User’s Guide...

  • Page 116: Pinging The Modem From Your Computer

    Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. VigorAP 800 User’s Guide...

  • Page 117: Backing To Factory Default Setting If Necessary

    While the modem is running, press the Factory Reset button and hold for more than 5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the modem will restart with the default configuration. VigorAP 800 User’s Guide...

  • Page 118: Contacting Your Dealer

    If the modem still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. VigorAP 800 User’s Guide...

Table of Contents
