- Page 1 AlcoQuant 6020 plus Operating manual 059-07-1001779_A6020plus_GB-5.2.1 Technical changes reserved! © 12.2021 Honeywell Healthcare Solutions GmbH...
-
Page 2: Table Of Contents
AlcoQuant 6020 plus General Safety and Service Notes ..........................4 Designated use and description ........................... 5 Operation ..................................7 Operating menu (overview) ............................ 8 Switch-on / Switch-off .............................. 9 Settings ................................... 10 3.3.1 Date/Time ............................ 10 3.3.2 Keys ............................. 11 3.3.3 Contrast ............................ - Page 3 Reprints, translations and duplication in any form – including excerpts – require the written permission of the manufacturer. This manual is subject to the alteration service of Honeywell Healthcare Solutions GmbH. Doc.-No.: 059-07-1001779_A6020plus_GB-5.2.1 © 2021 Honeywell Healthcare Solutions GmbH Honeywell Healthcare Solutions GmbH Tel.: +49 - (0) 3841-360-1...
-
Page 4: General Safety And Service Notes
(concluding in a report). Maintenance work must be carried out on the device by authorised service personnel only. Only original parts from Honeywell Healthcare Solutions GmbH may be used for repairs. Six-monthly calibration of the device is necessary to guarantee the specified measuring accuracy (see specifications) over the entire period. -
Page 5: Designated Use And Description

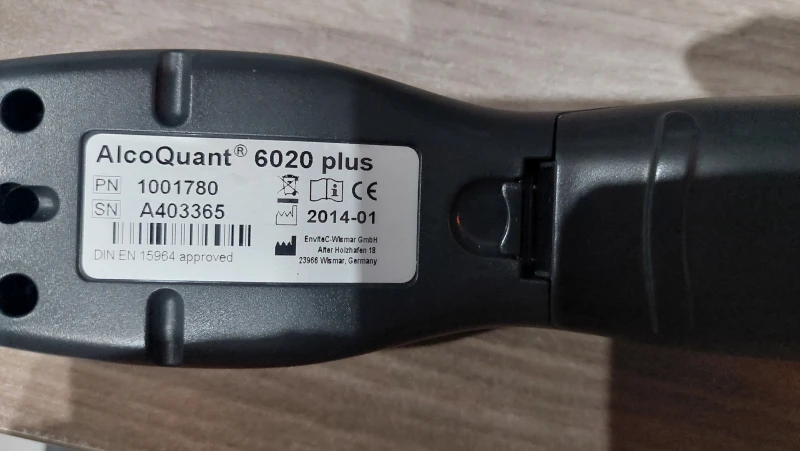

AlcoQuant 6020 plus Designated use and description The AlcoQuant 6020 plus is designed for a quick and accurate determination to check the presence of alcohol or alcohol intake and is the optimal solution for the following applications: police routine alcohol verification •... - Page 6 AlcoQuant 6020 plus Label symbols Follow the instructions given in the Serial number operating manual! Date of manufacture Product number Manufacturer Follow the disposal instructions! CE certification Wireless interface Symbols shown on the display Measurement mode Memory Wireless printing activated Printer test Battery symbol Setting...
-
Page 7: Operation
AlcoQuant 6020 plus Operation The device is operated using the three membrane keys. These membrane keys can be cleaned with a damp cloth in order to comply with hygiene requirements. All of the system's status and error messages are shown in plain text on the illuminated screen. Front view Rear view Description... -
Page 8: Operating Menu (Overview)
AlcoQuant 6020 plus Operating menu (overview) Main menu The >Service< menu item is for authorised service personnel use only. Keys Left function key The current function is shown on the display. Right function key Confirm the selected menu item Exit: Briefly press key ... -
Page 9: Switch-On / Switch-Off
AlcoQuant 6020 plus Switch-on / Switch-off Once the device has been switched on, it will automatically test all of its internal functions and components. While performing these tests, the screen displays information about the "next calibration" and "software revision status" for about 2 seconds. Hold down the button for around 1 second. -
Page 10: Settings
AlcoQuant 6020 plus Settings The different menu items for setting the basic functions are available in the >Settings< menu. 3.3.1 Date/Time The device's date and time is set in this menu item. Select >Date/Time< from the >Settings< menu. Confirm the selection with >OK<. Time To change the time, select the >Time<... -
Page 11: Keys
AlcoQuant 6020 plus 3.3.2 Keys This menu item determines whether an acoustic beep is made when a key is pressed and whether the background light for the keys is on or off. Select >Keys< from the >Settings< menu. Confirm the >Keys< selection with >OK<. Tone (ON/OFF) Select and confirm the >Tone<... -
Page 12: Auto-Off
AlcoQuant 6020 plus 3.3.4 Auto-off This menu item determines whether the device automatically switches itself off after a certain length of time in ready for operation mode. Auto-off helps extend the operating time of the device. This setting applies to the device's "Standby"... -
Page 13: Language
AlcoQuant 6020 plus 3.3.6 Language This menu item determines the display and system text language (e.g. German or English). Select >Language< from the >Settings< menu. Confirm the >Language< selection with >OK<. Now select the desired language and confirm again. Doc no.: 059-07-1001779_A6020plus_WL_GB-5.2.1 / 12.2021... -
Page 14: Printer Settings (Optional)
AlcoQuant 6020 plus 3.3.7 Printer settings (optional) This menu items determines Settings regarding the printer output. Within the menu >Settings<, select the menu item >Printer Setup<. This item is only available for devices with wireless option. Confirm > Printer Setup< with >OK<. Then select the desired printing option: >Cable<... -
Page 15: Printer Test
AlcoQuant 6020 plus Printer Test Select main menu item >Printer Test<. Confirm with >OK<. Press >Print< to for a test printout. Whether >Cable< or >Wireless< printing is used, depends on the option that has been selected in >Printer Setup<. The AlcoQuant 6020 plus will identify itself on the printout with its own serial number. -
Page 16: Device Information
AlcoQuant 6020 plus 3.5.2 Device information Select >Device information< from the >Information< menu. Confirm the >Device information< selection with >OK<. The device-specific information about this AlcoQuant 6020 plus is displayed. To change the information screens, press OK. Information screens: Date of next calibration •... -
Page 17: Printing Measurement Results
AlcoQuant 6020 plus Printing measurement results The measured value displayed can be printed on the connected printer. If more than one type of printer is available (option wireless), the correct printer type has to be selected in >Printer Setup<, either >Wireless<... -
Page 18: Measurement
Water trap Use only original Honeywell Healthcare Solutions GmbH mouth pieces. Do not remove the small round disc inside the mouth piece! The mouth pieces are equipped with a water trap that will strip away excess moisture from the breath. Even if the person that blows in does not change, don’t use a mouth piece for more than three... - Page 19 AlcoQuant 6020 plus Cold ambient conditions In very cold ambient conditions change the mouth piece after every single blow to avoid an excess of water in the device. Always put down the device with display side showing up, this orientation will make sure that any drops that passed the water trap will run out of the tube system again.
- Page 20 AlcoQuant 6020 plus How to insert the mouthpiece The prepared original mouthpiece must be inserted into the mouthpiece port of the AlcoQuant 6020 plus before measuring is performed. For this purpose the hygienic packaging of the mouth piece must first be removed. Please use the hygienic packaging as an hygienic protection (refer to pictures).
- Page 21 AlcoQuant 6020 plus The measurement is automatically started by blowing into the device. Start Green LED starts to flash. During sample collection the test person must breathe into the device with a sufficiently large respiratory flow, evenly and without interruptions. A breathed air volume from 1.2 liters must achieved.
- Page 22 AlcoQuant 6020 plus Click on the >OK< button to return to ready mode. Doc no.: 059-07-1001779_A6020plus_GB-5.2.1 / 12.2021...
-
Page 23: Measurement In Passive Mode
AlcoQuant 6020 plus Measurement in passive mode The passive mode (without mouthpiece) serves to check the ambient air for any alcohol content it may contain, e.g. for possible presence of alcohol content in the case of patients who are not responsive. It is only to check if there is any alcohol in the ambient air. - Page 24 AlcoQuant 6020 plus The yellow LED is flashing during the evaluation of the breath sample. Depending alcohol concentration this can take several seconds. Press the ON/OFF key to return to active mode. No alcohol detected If no alcohol is detected, a high signal sounds off and the green LED lights up.
-
Page 25: Data Memory
AlcoQuant 6020 plus Data memory The device provides a data memory to log measured values. Each alcohol measurement performed is automatically stored with date, time, measured value and log number. The last 9999 data records are stored in the data memory. Once the internal memory is 95% full (9,499 measurements), a "Memory 95% full"... - Page 26 AlcoQuant 6020 plus The measured values stored in the data memory will be retained even if the batteries are replaced. Doc no.: 059-07-1001779_A6020plus_GB-5.2.1 / 12.2021...
-
Page 27: Maintenance
• Test whether device functions are in proper working order • Test of calibration The device may only be serviced by Honeywell Healthcare Solutions GmbH or service personnel who have been trained by Honeywell Healthcare Solutions • GmbH. Please contact your dealer or send the device and all of its accessories to the following... -
Page 28: Battery
AlcoQuant 6020 plus Battery A repeated beep and the status display “Change battery” indicates that the batteries must be replaced. The device switches itself off after 10 seconds. The batteries can be replaced by lightly pressing on the battery compartment opener, which releases the lock and enables the battery compartment cover to be removed. -
Page 29: Accumulator And Charging Adaptor
AlcoQuant 6020 plus Accumulator and charging adaptor A rechargeable battery pack and a charging station are available as optional accessories. The signals and switch-off process for a empty accumulator are the same as that for a regular battery. The charger AN-IS-2001-003 (P/N 1001923) is intended to be used only to charge the build- in rechargeable NiMh battery pack (P/N 1001871, 2100mAh, 4.8V) in the breathalyzer device AlcoQuant ®... -
Page 30: Replacing The Accumulator
5.2.4 Replacing the accumulator To replace the accumulator, the cover must be removed and the accumulator cable disconnected. The accumulator compartment holds a block of 4x Honeywell Healthcare Solutions GmbH Nickel-Metallhydride rechargeable batteries (NiMH) 4.8 V (4x 2100 mAh). The entire accumulator block must be replaced. The battery block is then reinserted into the case, the accumulator cable connected and the cover closed again. -
Page 31: Error Messages And Removal Of Errors
AlcoQuant 6020 plus Error messages and removal of errors Each device error is signalised acoustically by a short dual signal and optically either by the yellow (error that does not impair measurement) or by the red LED (error impairing measurement). It leads to a corresponding error message on the display. - Page 32 AlcoQuant 6020 plus Phase Display on Result LED signals Cause/solution device Switching on Error Confirm Device must be recalibrated. Calibration with key No measurements are possible. Contact service. Measurement Error sound Error RED, Errors prevent measurement Return to menu sound remains on readiness.
- Page 33 AlcoQuant 6020 plus Phase Display on Result Cause/solution device signals Measurement Warning Confirm YELLOW The measurement memory is Memory full with key 100% full. The oldest measurements are overwritten from now on (ring memory). Download data with PC software and/or delete old measurements. Measurement Connecting Printout...
- Page 34 AlcoQuant 6020 plus Move AlcoQuant 6020 plus closer to the printer. Check, if the used printer has wireless printing capability at all. Set >Printer Setup< to >Cable< and have a test printout, to check if there is a general printing problem.
-
Page 35: Technical Specifications
1.2 litres • Batteries or accumulator (optional) 4x LR6 (AA) alkaline Mignon batteries (Industrial by Duracell recommended) or Honeywell Healthcare Solutions GmbH -Akku NiMH 4.8V (4 x 2100 mAh) Charging station (optional) protection class II Input: AC 100–240 V/50–60 Hz/93 mA Output: DC 5.6 V/500 mA/2.8 VA... - Page 36 Display backlit, fully graphic Memory storage of 9999 measurement values with date and time Mouthpieces single-use Honeywell Healthcare Solutions GmbH mouthpiece (type S or D) Software PC software for statistical analysis, data transfer and logging Calibration every 6 months...
-
Page 37: Warranty
AlcoQuant 6020 plus Warranty As of the purchase date, Honeywell Healthcare Solutions GmbH offers a two year warranty for faults arising from material or manufacturing defects. Excepted from this is the battery (see the General Terms of Business). Faults that are covered by warranty will be corrected within the framework of our warranty conditions. -
Page 38: Order Information
AlcoQuant 6020 plus Order information AlcoQuant ® 6020 plus – complete alcohol breathalyser Order no. AlcoQuant ® 6020 plus, battery version E1001779 (case, 4x R6/AA batteries, 25 mouthpieces, operating manual) AlcoQuant ® 6020 plus, accumulator version E1001940 (case, 4x 2.1 Ah rechargeable batteries, 25 mouthpieces, operating manual) AlcoQuant 6020 plus, wireless printer Interface, battery version (case, E1002249 batteries 4 x R6/AA, 25 mouthpieces, operating manual) - Page 39 AlcoQuant 6020 plus Notes Doc no.: 059-07-1001779_A6020plus_WL_GB-5.2.1 / 12.2021...
- Page 40 Honeywell Healthcare Solutions GmbH Alter Holzhafen 18 Tel.: 49 - (0) 3841 360-1 23966 Wismar, Germany Fax.: 49 - (0) 3841 360-222 Internet: www.envitec.com...
