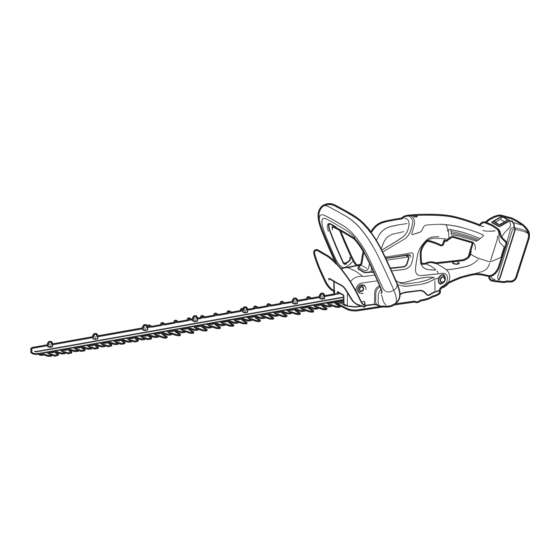

- Page 1 INSTRUCTION MANUAL Cordless Hedge Trimmer DUH507 DUH607 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DUH507 DUH607 Blade length 500 mm 600 mm Strokes per minute 2,700 min Overall length 872 mm 976 mm (Without battery) Rated voltage D.C. 18 V Net weight 2.7 - 3.0 kg 2.8 - 3.1 kg • Due to our continuing program of research and development, the specifications herein are subject to change without notice. -
Page 3: General Power Tool Safety Warnings
Use personal protective equipment. Always SAFETY WARNINGS wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions General power tool safety warnings will reduce personal injuries. Prevent unintentional starting. Ensure the WARNING Read all safety warnings, instructions, switch is in the off-position before connecting illustrations and specifications provided with this... - Page 4 Disconnect the plug from the power source Follow all charging instructions and do not and/or remove the battery pack, if detachable, charge the battery pack or tool outside the temperature range specified in the instruc- from the power tool before making any adjust- ments, changing accessories, or storing power tions.
- Page 5 Electrical and battery safety Additional Safety Instructions Avoid dangerous environment. Don't use the tool Preparation in dump or wet locations or expose it to rain. Water Check the hedges and bushes for foreign entering the tool will increase the risk of electric shock. objects, such as wire fences or hidden wiring Do not dispose of the battery(ies) in a fire.
-
Page 6: Functional Description
Avoid storing battery cartridge in a con- causing fires, personal injury and damage. It will tainer with other metal objects such as also void the Makita warranty for the Makita tool and nails, coins, etc. charger. Do not expose battery cartridge to water or rain. - Page 7 Let the machine and battery(ies) cool down. 25% to 50% If no improvement can be found by restoring protection system, then contact your local Makita Service Center. 0% to 25% NOTICE: If the tool stops due to a cause...
-
Page 8: Indication Lamp
Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly stop the shear blades after releasing the switch trigger or the switch lever, have the tool serviced at Makita Authorized Service Center. 8 ENGLISH... - Page 9 Remove the bolts and the shear blades from the ASSEMBLY tool. Then remove the dust guard, the metal sleeves and the flat washer from the shear blades. CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. CAUTION: When replacing the shear blades, always wear gloves so that your hands do not...
- Page 10 Remove the blade cover, and then attach it to the Apply some grease provided with the new shear new shear blades. blades as illustrated. Fig.9 Fig.12 ► 1 . Blade cover ► 1 . Grease Adjust the hole positions by turning the gear as Hold the guide bar, and then slide out the shear blades as shown in the figure.
- Page 11 13. Place the metal sleeves and the flat washer, then Place the new shear blades on the tool so that the resin sleeves fit in the holes in the gear. If the resin tighten the bolts. sleeves on the pins come off mistakenly, put them into the holes in the gear beforehand. Fig.15 ► 1 . Shear blades 2. Resin sleeve 3. Hole 12. Slide the guide bar as shown in the figure. Fig.17 ► 1 . Metal sleeve 2. Flat washer 3. Bolt 14.
- Page 12 Press the levers on the chip receiver, and then Installing or removing the chip hook the claws on the other side to the groove on the receiver shear blades. Make sure that all the claws are hocked in the groove of Optional accessory the guide bar firmly.
-
Page 13: Operation
Hold the tool with both hands, hold the front handle OPERATION while pressing the switch lever and pull the switch trig- ger, and then move the tool forward. WARNING: Keep hands away from shear blades. CAUTION: Avoid operating the tool in very hot weather as much as practicable. -
Page 14: Cleaning The Tool
Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. 14 ENGLISH... -
Page 15: Troubleshooting
Fig.32 ► 1 . Hole TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. -
Page 16: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
