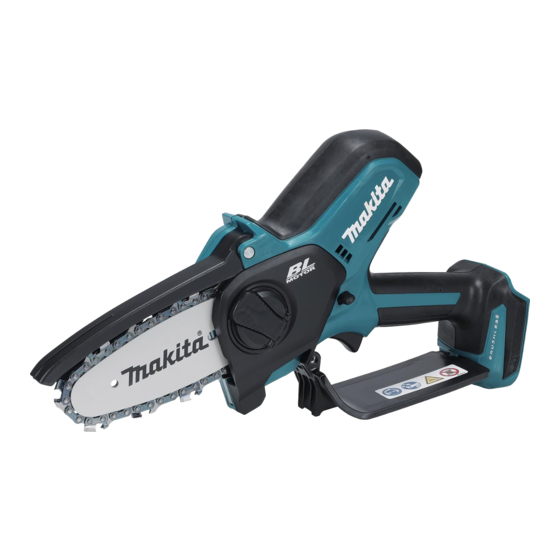

- Page 1 Cordless Pruning Saw INSTRUCTION MANUAL ZHCN 充电式修剪锯 使用说明书 Gergaji Pemangkas Tanpa PETUNJUK PENGGUNAAN Kabel Gergaji Pemangkas Tanpa MANUAL ARAHAN Kord Máy Cưa Cành Cầm Tay Hoạt TÀI LIỆU HƯỚNG DẪN Động Bằng Pin เลื ่ อ ยตั ด ไร้ ส าย คู...
- Page 2 Fig.1 Fig.2 Fig.3 Fig.4...
- Page 3 Fig.5 Fig.8 Fig.6 Fig.9 Fig.7 Fig.10...
- Page 4 Fig.15 Fig.11 Fig.16 Fig.12 Fig.17 Fig.13 Fig.18 Fig.14...
- Page 5 Fig.19 Fig.22 Fig.20 Fig.23 Fig.21 Fig.24...
- Page 6 Fig.25 Fig.29 Fig.26 Fig.30 Fig.27 Fig.31 Fig.32 Fig.28...
- Page 7 Fig.33 Fig.34 Fig.35...
-
Page 8: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model: DUC101 Overall length 357 mm (without guide bar and battery) Rated voltage D.C. 18 V Net weight 1.1 kg 1.6 - 2.0 kg Standard guide bar length 100 mm Recommended guide bar length 100 mm Applicable saw chain type 80TXL (refer to the table below) -
Page 9: Intended Use
Recommended cord connected power source Portable power pack PDC01 • The cord connected power source(s) listed above may not be available depending on your region of residence. • Before using the cord connected power source, read instruction and cautionary markings on them. Symbols SAFETY WARNINGS The followings show the symbols which may be used General power tool safety warnings for the equipment. Be sure that you understand their meaning before use. WARNING: Read all safety warnings, instruc- Read instruction manual. - Page 10 Power tools can produce electromagnetic fields (EMF) that are not harmful to the user. However, users of pacemakers and other similar medical devices should contact the maker of their device and/or doctor for advice before operating this power tool. Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 11 Battery tool use and care Wear eye protection. Further protective equip- ment for hearing, head, hands, legs and feet is Recharge only with the charger specified by recommended. Adequate protective equipment the manufacturer. A charger that is suitable for will reduce personal injury from flying debris or one type of battery pack may create a risk of fire accidental contact with the saw chain.
-
Page 12: Additional Safety Instructions
Maintain a firm grip, with thumbs and fin- Do not stand directly under the branch that • gers encircling the pruner saw handles, is being cut. Pay attention to the falling with both hands on the saw and position branches. your body and arm to allow you to resist Do not operate the tool in bad weather or if kickback forces. -
Page 13: Parts Description
The battery cartridge can explode in a fire. have been altered, may result in the battery bursting causing fires, personal injury and damage. It will Do not nail, cut, crush, throw, drop the battery also void the Makita warranty for the Makita tool and cartridge, or hit against a hard object to the charger. battery cartridge. Such conduct may result in a fire, excessive heat, or explosion. -
Page 14: Functional Description
Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Only for battery cartridges with the indicator ► Fig.4: 1. Indicator lamps 2. Check button CAUTION: Always be sure that the tool is Press the check button on the battery cartridge to indi- switched off and the battery cartridge is removed cate the remaining battery capacity. - Page 15 Removing the saw chain Switch action To remove the saw chain, perform the following steps: WARNING: For your safety, this tool is Pull the lever up. equipped with lock-off lever which prevents the ► Fig.6: 1. Lever tool from unintended starting. NEVER use the tool Turn the lever counterclockwise until the sprocket if it runs when you simply pull the switch trigger cover comes off.
-
Page 16: Adjusting Saw Chain Tension
NOTICE: Use the saw chain oil exclusively for body. Otherwise, the tool may be pulled toward the Makita tools or equivalent oil available in the tip of guide bar and the guide bar may wobble, and market. may result in an injury. NOTICE: Never use oil including dust and parti- Carrying tool cles or volatile oil. -
Page 17: Maintenance
Guide the file as shown in the figure. To maintain product SAFETY and RELIABILITY, ► Fig.28: 1. File 2. Saw chain repairs, any other maintenance or adjustment should — The file can be guided more easily if a file holder be performed by Makita Authorized or Factory Service (optional accessory) is employed. The file holder Centers, always using Makita replacement parts. has markings for the correct sharpening angle of Sharpening the saw chain 30° (align the markings parallel to the saw chain) and limits the depth of penetration (to 4/5 of the file diameter). -
Page 18: Replacing The Sprocket
Remove the battery cartridge from the tool. Storing the tool Reinstall the sprocket cover and saw chain and guide bar on the tool. Clean the tool before storing. Remove any chips Replacing the sprocket and sawdust from the tool after removing the sprocket cover. -
Page 19: Troubleshooting
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
