Vertical Sanding

If the sanding belt frame is in the horizontal posi-
tion, proceed to Setting up Sander for Vertical
Sanding. If the sander is already in the vertical
position, skip to Performing Vertical Sanding
on Page 39.

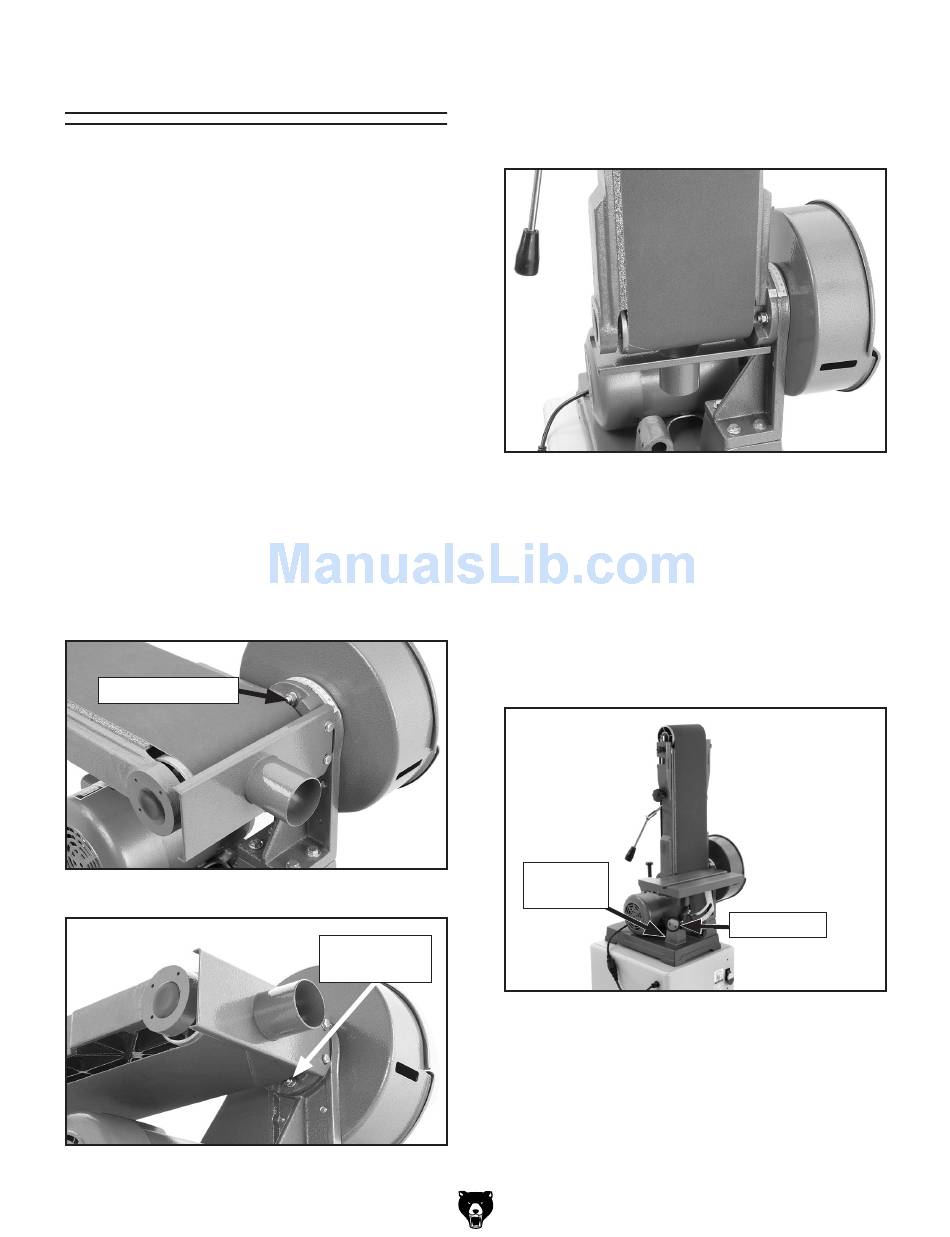

Setting up Sander for Vertical
Sanding
1.
Make sure the sanding belt is tensioned—if it
is not already tight.
2. Make sure the belt tracking is correctly set
(see Tracking Belt on Page 41).
3. DISCONNECT SANDER FROM POWER!
4. Remove the backstop and miter gauge from
the work table.
5. Loosen the sanding frame rotation lock nuts
(behind the sanding disc cover) as shown in
Figures 58 & 59.
Top Rotation Nut
Figure 58. Location of top rotation lock nut.
Figure 59. Location of bottom rotation lock nut.
Model G1014Z/G1014ZX (Mfd. Since 07/17)
6.
7.
8.
Bottom
Rotation Nut
Raise the sanding belt frame until it reaches
the 90º mark (or the desired angle) on the tilt
scale, as shown in Figure 60, then tighten
the rotation lock nuts.
Figure 60. Sanding belt tilted to 90º position.
Loosen the set screws that secure the table
support rod under the sanding disc, then
remove the support rod and work table
assembly.
Loosen the set screws on the mounting
bracket behind the motor, then slide the sup-
port rod and work table assembly into the
bracket hole, as shown in Figure 61.
Mounting
Bracket
Figure 61. Work table installed for vertical
sanding.
Set Screws
