G1014Zx Cabinet - Grizzly G1014Z Owner's Manual

49
72-1
71
72
REF PART # DESCRIPTION
12 P1014ZX012 HEX NUT 5/16-18
13 P1014ZX013 FLAT WASHER 5/16
32 P1014ZX032 HEX BOLT 5/16-18 X 1/2
41 P1014ZX041 HEX BOLT 5/16-18 X 1
46 P1014ZX046 FLAT WASHER #10
47 P1014ZX047 FLANGE SCREW 10-24 X 3/8
48 P1014ZX048 EXT TOOTH WASHER #10
49 P1014ZX049 STRAIN RELIEF
51 P1014ZX051 HEX NUT 10-24
53 P1014ZX053 GRIZZLY SAFETY PADDLE SWITCH
55 P1014ZX055 PADDLE SWITCH KEY
58 P1014ZX058 RUBBER FOOT
60 P1014ZX060 MACHINE ID LABEL
61 P1014ZX061 MODEL NUMBER LABEL
-60-

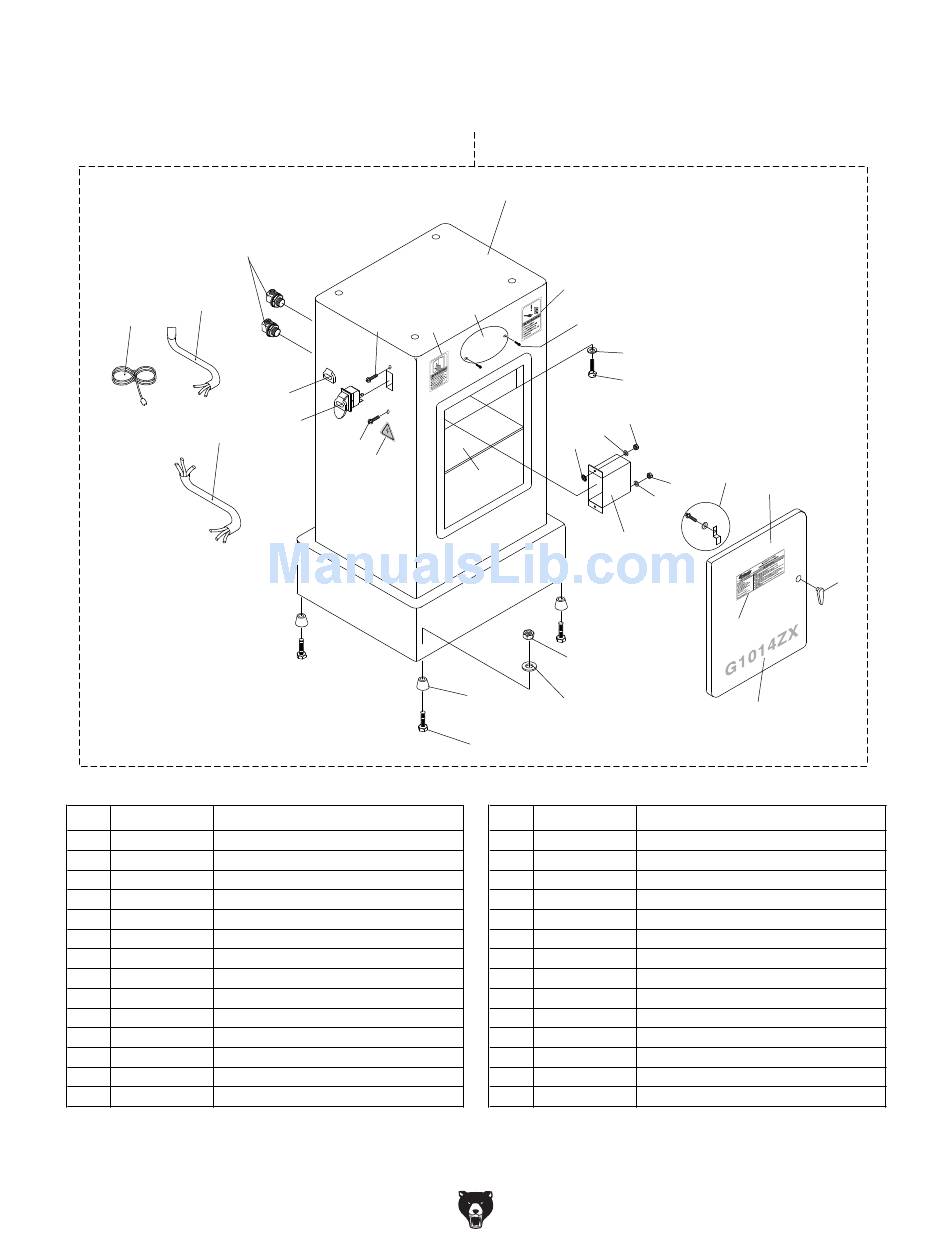

G1014ZX Cabinet

47
66
55
53
47
79
73A
73
67
104
118
13
32
51
46
48
76
78
12
58
13
41
REF PART #
66 P1014ZX066
67 P1014ZX067
71 P1014ZX071
72 P1014ZX072
72-1 P1014ZX072-1 MOTOR CORD 2 MALE
73 P1014ZX073
73A P1014ZX073A COMPLETE STAND ASSY BOX 2
74 P1014ZX074
75 P1014ZX075
76 P1014ZX076
78 P1014ZX078
79 P1014ZX079
104 P1014ZX104
118 P1014ZX118
Model G1014Z/G1014ZX (Mfd. Since 07/17)
75
74
51
46
60
61
DESCRIPTION
DISCONNECT 110V 2W X 3.3H
READ MANUAL V2.07.05
POWER CORD
MOTOR CORD 1 FEMALE
CABINET
CABINET DOOR
DOOR LATCH SYSTEM
SHELF
SWITCH HOUSING
ELECTRICITY LABEL
GRIZZLY NAMEPLATE- SMALL
TAP SCREW #5 X 3/8
75
