MOTOR (Prewired 110V)
Ground
MOTOR (Wired 220V)
Ground
The motor wiring shown here is
current at the time of printing;
however, always use the diagram
on the inside of junction box cover
when rewiring your motor.
READ ELECTRICAL SAFETY
-54-

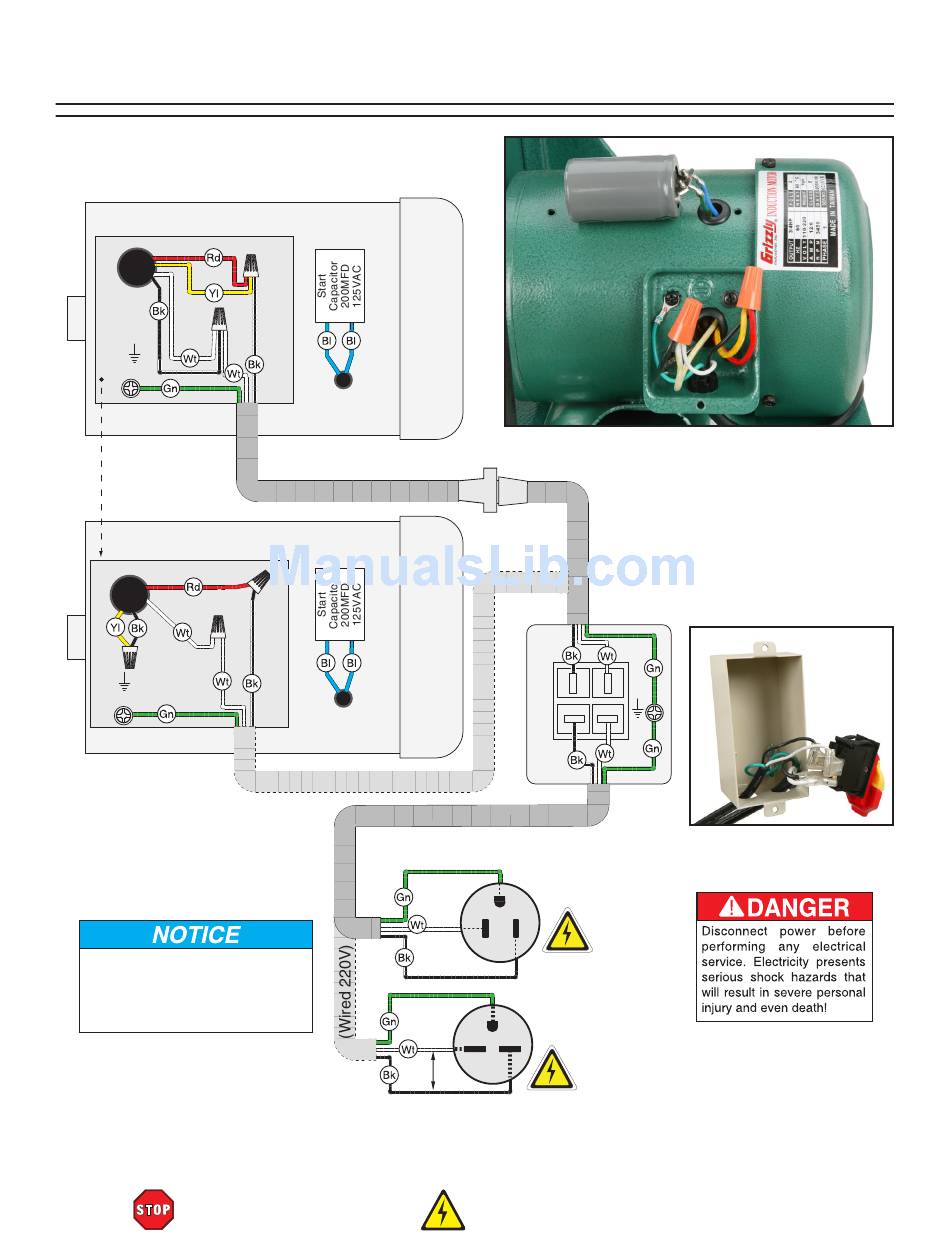

G1014ZX Wiring Diagram
(Wired 220V)
Ground
ON PAGE 52!
Figure 92 G1014ZX motor wiring.
(viewed from behind)
5-15 PLUG
(Included)
Ground
110V
Neutral
Hot
G
220V
Hot
Hot
6-15 PLUG
(As Recommended)
Model G1014Z/G1014ZX (Mfd. Since 07/17)
PADDLE SWITCH
Figure 93. G1014ZX
switch wiring.
