Vertical Sanding - Grizzly G1014Z Owner's Manual

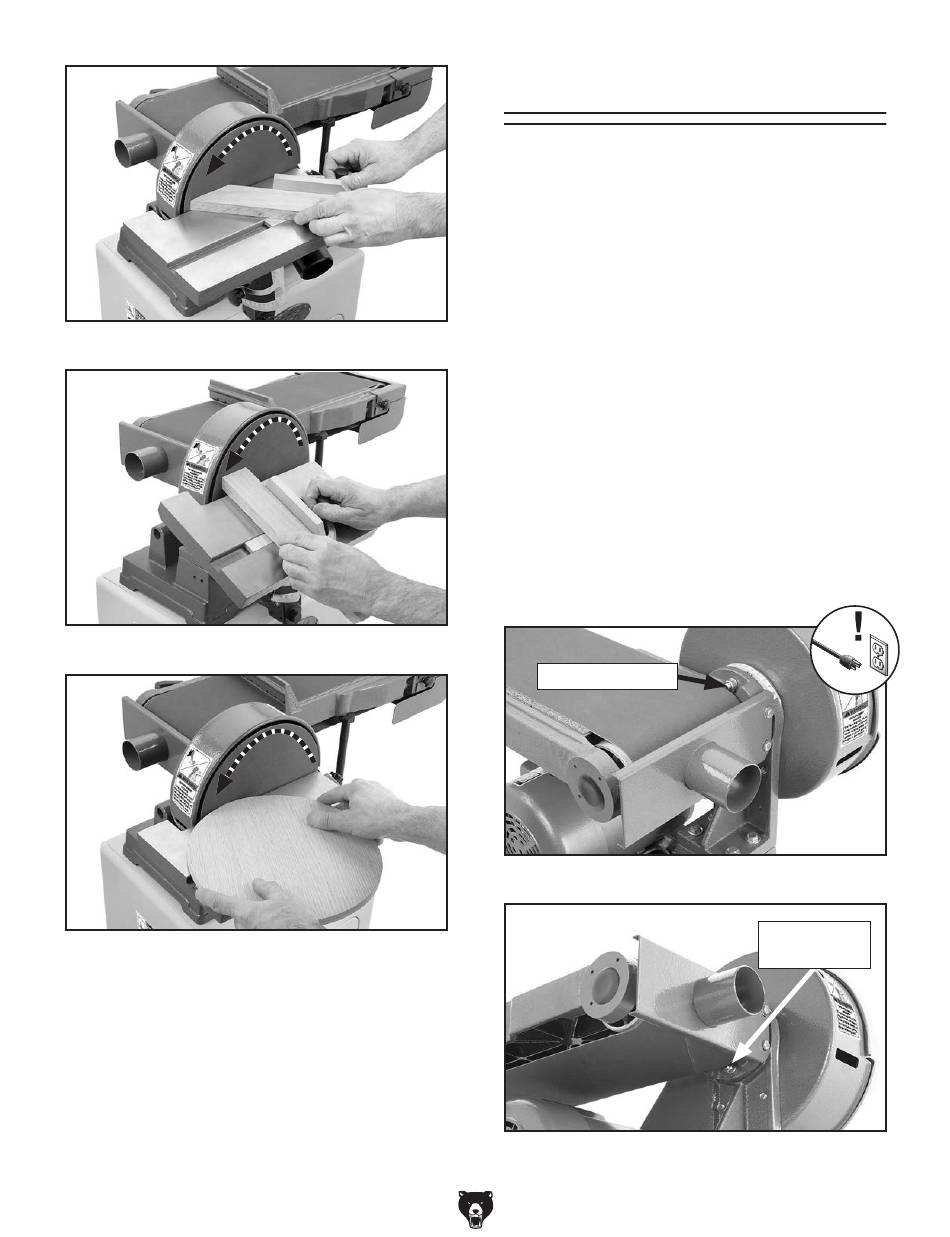

Figure 58. Example of miter sanding.
Figure 59. Example of angle sanding.
Figure 60. Example of sanding round workpiece.
Note: To prevent burning the workpiece and over-
loading the sanding disc, move the workpiece
slowly back and forth from the left side of the
sanding disc to the center.
-36-

Vertical Sanding

If the sanding belt frame is in the horizontal posi-
tion, proceed to Setting up Sander for Vertical
Sanding. If the sander is already in the vertical
position, skip to Performing Vertical Sanding
on Page 38.
Setting Up Sander for Vertical
Sanding
1.
Make sure the sanding belt is tensioned—if it
is not already tight.
2. Make sure the belt tracking is correctly set
(see Tracking Belt on Page 41).
3. DISCONNECT MACHINE FROM POWER!
4. Remove the back stop and miter gauge from
the work table.
5. Loosen the sanding frame rotation lock nuts
(behind the sanding disc cover) as shown in
Figures 61–62.
Top Rotation Nut
Figure 61. Location of top rotation lock nut.
Figure 62. Location of bottom rotation lock nut.
