MOTOR (Prewired 110V)
Ground
MOTOR (Wired 220V)
Ground
Model G1014Z/G1014ZX (Mfd. Since 07/17)

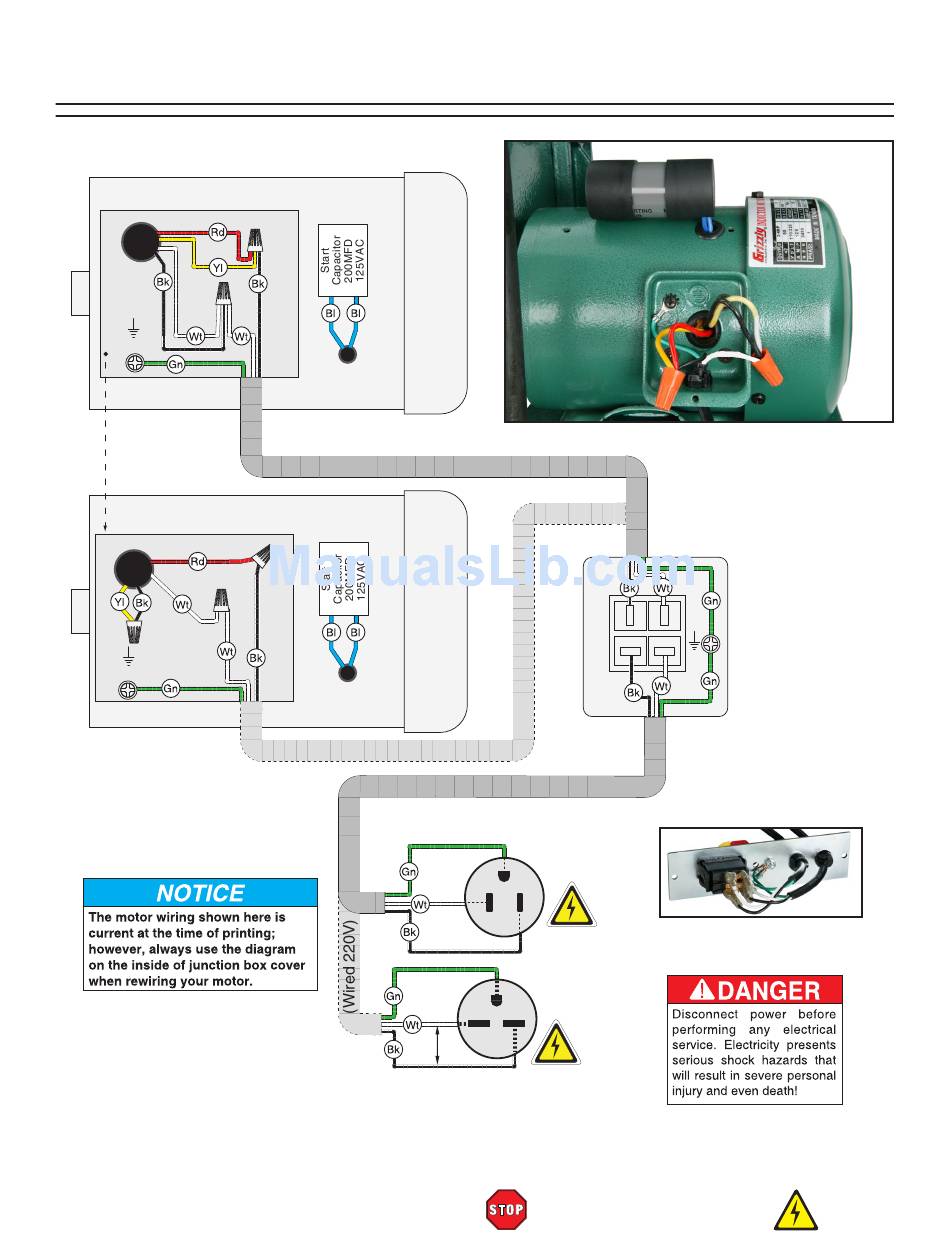

G1014Z Wiring Diagram
(Wired 220V)
Neutral
Ground
Hot
Hot
Figure 90. G1014Z 110V motor wiring.
5-15 PLUG
(Included)
Ground
110V
Hot
G
220V
6-15 PLUG
(As Recommended)
READ ELECTRICAL SAFETY
ON PAGE 52!
PADDLE SWITCH
(viewed from behind)
Figure 91. G1014Z
switch wiring.
-53-
