G1014ZX Cabinet
Assembly
To assemble the G1014ZX cabinet:
1.
Place the stand flat on its side, but do not lay
it down on the switch or door handle.
2. ⁄ "-18 x 1" hex bolt through the bot-
Insert a 5
16
tom of each of the four rubber feet, then insert
the hex bolt on each foot into the mounting
holes on the bottom of the cabinet.
3. Fasten each foot with a
⁄ " flat washer (see Figure 16).
5
16

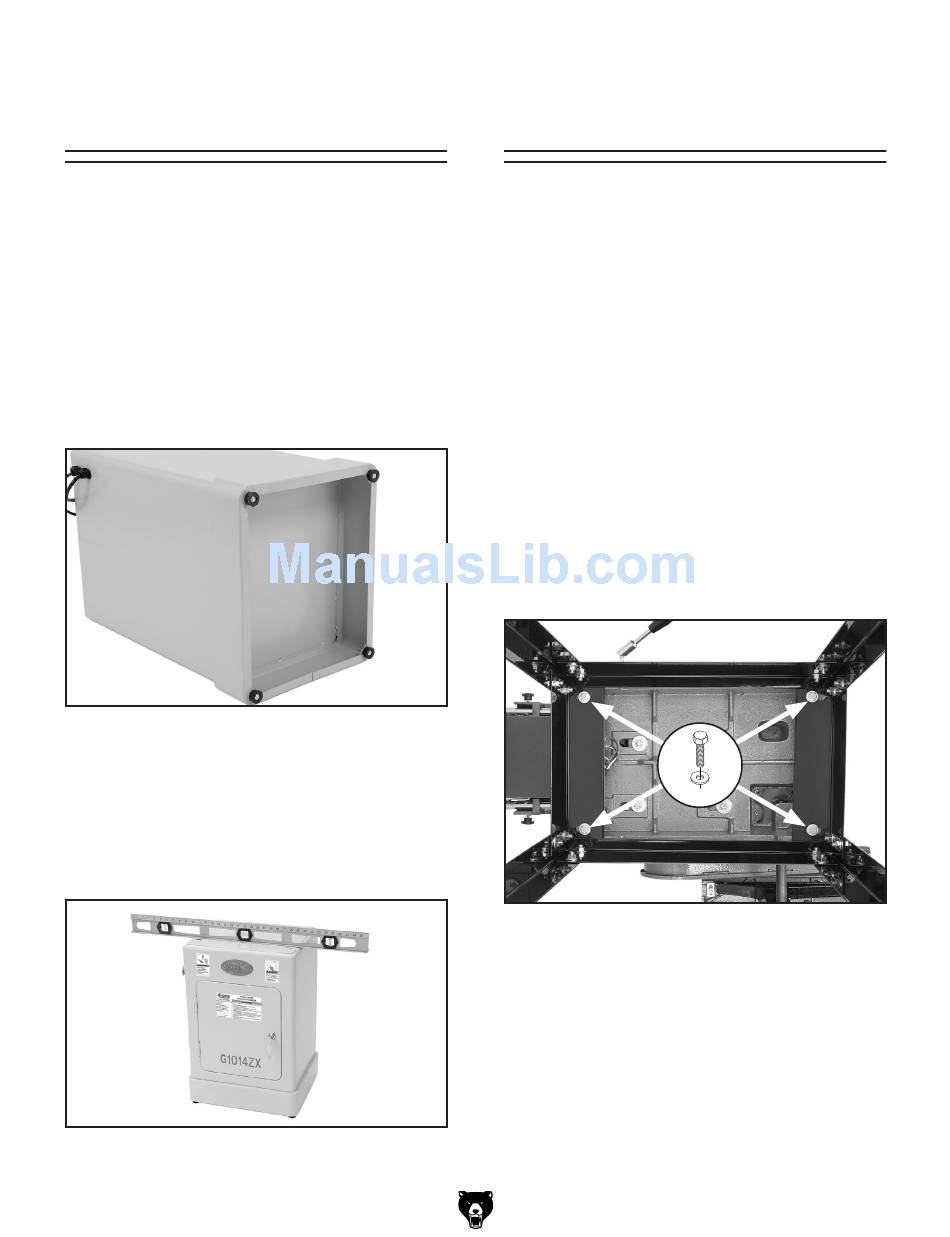

Figure 16. Feet installed onto bottom of cabinet.
4. Place the stand upright on its feet, then place
the shelf in the cabinet.
5. (Optional) Place a level on top of the cabinet
(see Figure 17) and adjust it level from front-
to-back and side-to-side by shimming it.
Figure 17. Leveling cabinet.
Model G1014Z/G1014ZX (Mfd. Since 07/17)
⁄ "-18 hex nut and
5
16
Sanding Unit
Assembly
To assemble the sanding unit:
1. With the help of an assistant, lift the head-
stock onto the stand (G1014Z) or the cabinet
(G1014ZX), and align the mounting holes in
the sander unit and the stand or cabinet.
Note: To access the top mounting holes
inside the G1014ZX cabinet stand, open the
front door.
Tip: Insert the end of the included 4mm hex
wrench through the mounting holes in the
sanding unit and the stand or cabinet, then
jiggle the wrench back and forth to align the
mounting holes.
2. Secure the sanding unit to the stand or cabi-
net with the (4) ⁄ "-18 hex bolts and
5
16
washers, as shown in Figures 18 & 19.
Figure 18. G1014Z sander fastened to stand
(view from underneath stand).
⁄ " flat
5
16
x4
-21-
