G1014Z Stand
Assembly
The Model G1014Z stand can be assembled with
the included feet or mounted directly to a concrete
floor (refer to Mounting to Shop Floor on Page
18 for further details).
To assemble the G1014Z Stand:
1. Insert a ⁄ "-18 x 1" hex bolt through bottom
5
16
of rubber foot, then insert foot into bottom of
leg and fasten it finger tight with
nut and flat washer, as shown in Figure 10.
Rubber Foot
LEG

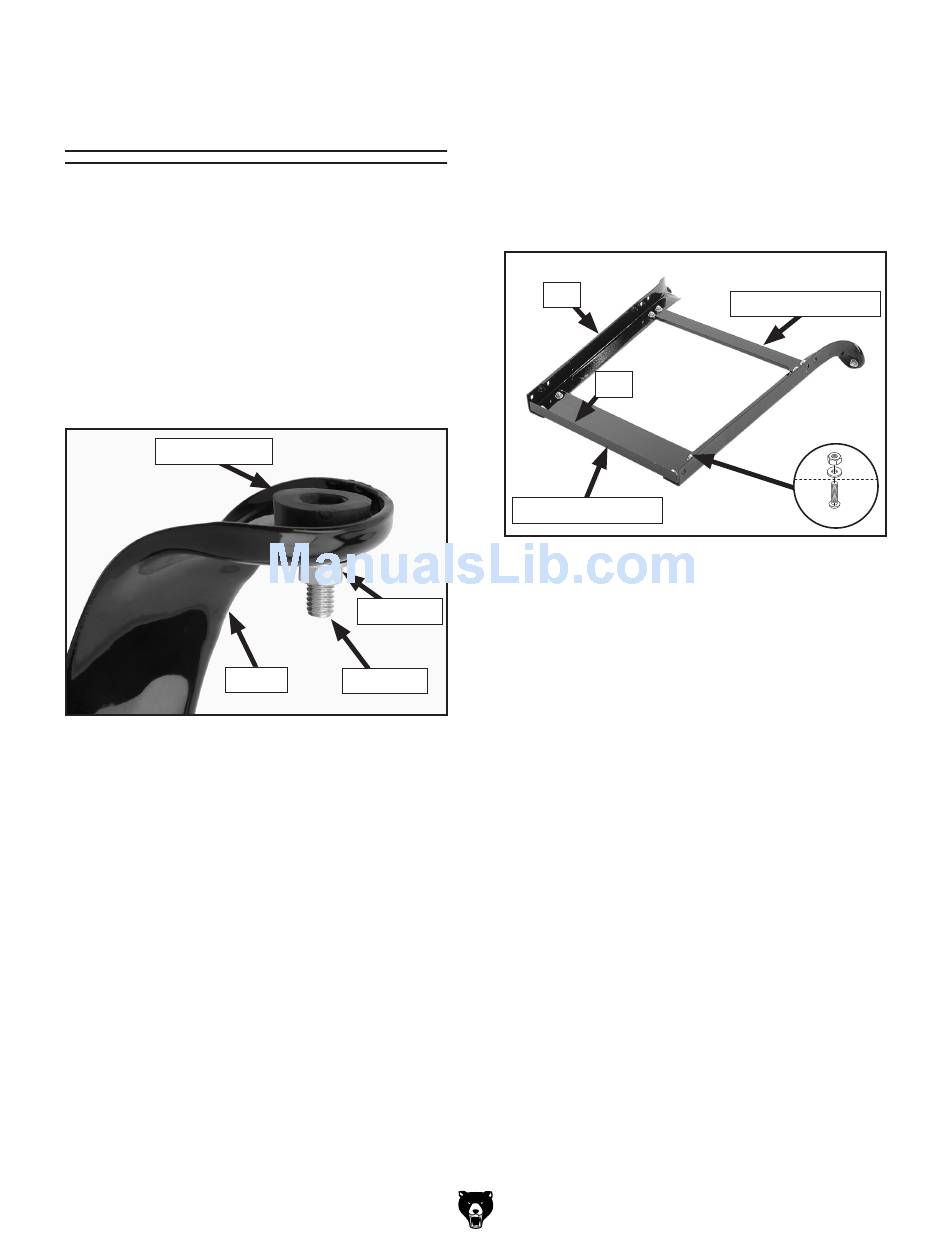

Figure 10. Foot fastened to bottom of a leg.
2. Repeat Step 1 to install remaining feet on the
other three legs.
Model G1014Z/G1014ZX (Mfd. Since 07/17)
3.
⁄ "-18 hex
5
16
Long Upper Brace
Figure 11. Stand legs fastened to long braces.
4.
Hex Nut
Hex Bolt
Fasten a long upper and long lower brace
to the two stand legs with (8)
carriage bolts, ⁄ "-18 hex nuts, and
5
16
washers, as shown in Figure 11. Finger
tighten the fasteners for now.
Note: Make sure the lip on the long braces
faces up.
Leg
Lip
Repeat Step 3 to fasten the two remaining
long upper and long lower braces to the
remaining stand legs.
5 ⁄ "-18 x 1 ⁄ "
16 2
⁄ " flat
5
16
Long Lower Brace
x8
