Mounting to
Workbench
you can mount your model g1014z/g1014zX
to a workbench through the holes in the base,
instead of using the included stand or cabinet.
the strongest mounting option is a "through
mount" where holes are drilled all the way through
the workbench, and hex bolts, washers, and hex
nuts are used to secure the sander unit to the
workbench.

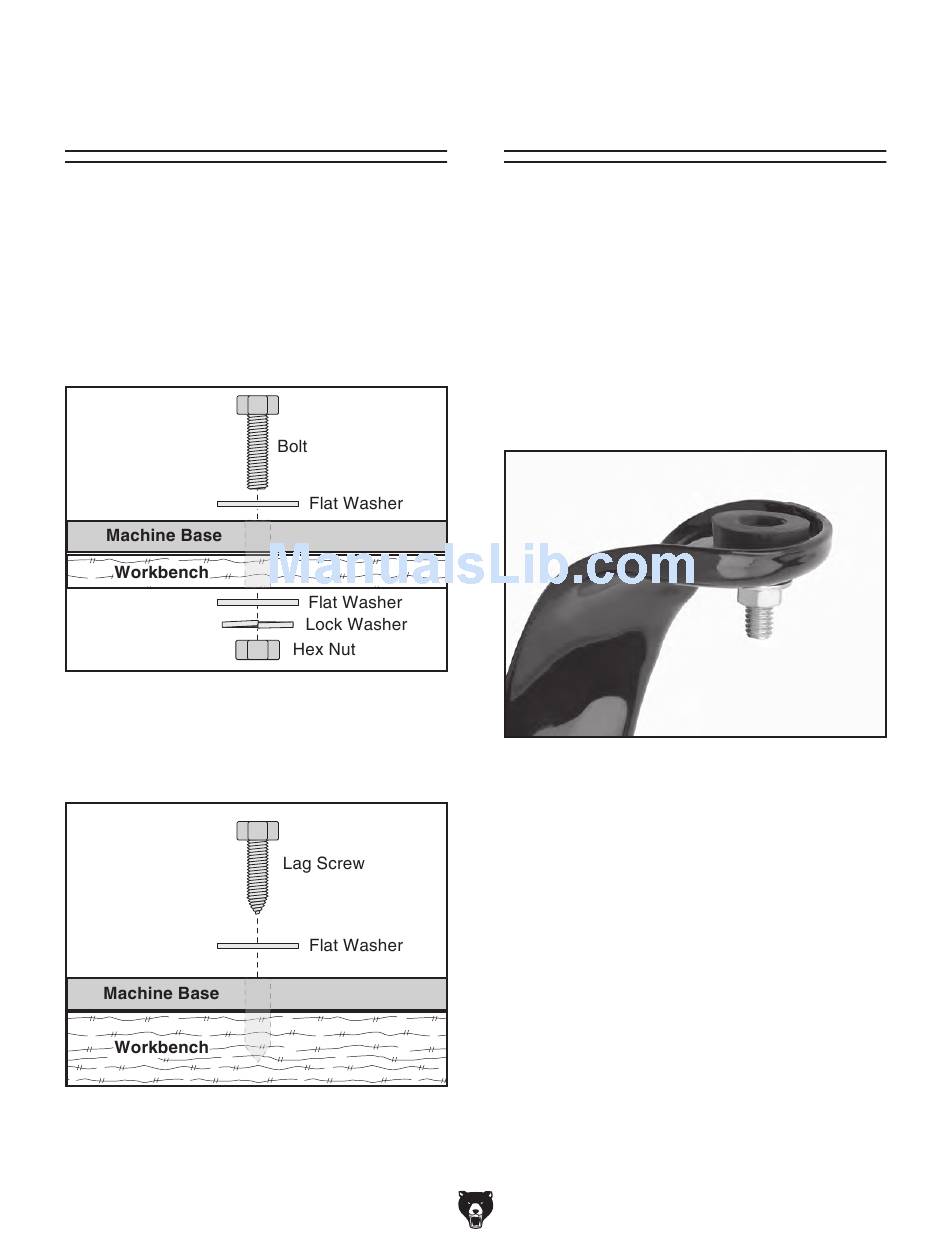

figure 13. example of a through mount setup.
another option for mounting is a "direct mount"
where the machine is simply secured to the work-
bench with a lag screw.
figure 14. example of a direct mount setup.
model g1014z/g1014zX (mfg. 11/07+)
G1014Z Stand
Assembly
the model g1014z stand can be assembled with
the included feet or mounted directly to a concrete
floor (refer to Mounting to Shop floor on page
18 for further details).
To assemble the G1014Z Stand:
1. insert a ⁄ "-18 x 1" hex bolt through the bot-
5
16
tom of a rubber foot, then insert the foot into
the bottom of a leg and fasten it finger tight
with a ⁄ "-18 hex nut and flat washer, as
5
16
shown in figure 15.
figure 15. Foot fastened to bottom of a leg.
2. repeat Step 1 to install the remaining feet on
the three other legs.
-19-
