WM821-M MiniPCI Module
1.
1. To connect to an AP through the RADIUS server, select 802.1x WPA/WPA2 as the Authentication Mode.
2.
2. Select TKIP or AES as the Encryption Method.
3.
3. Select EAP/TLS (Use Certificate) as the 802.1x Authentication Protocol.

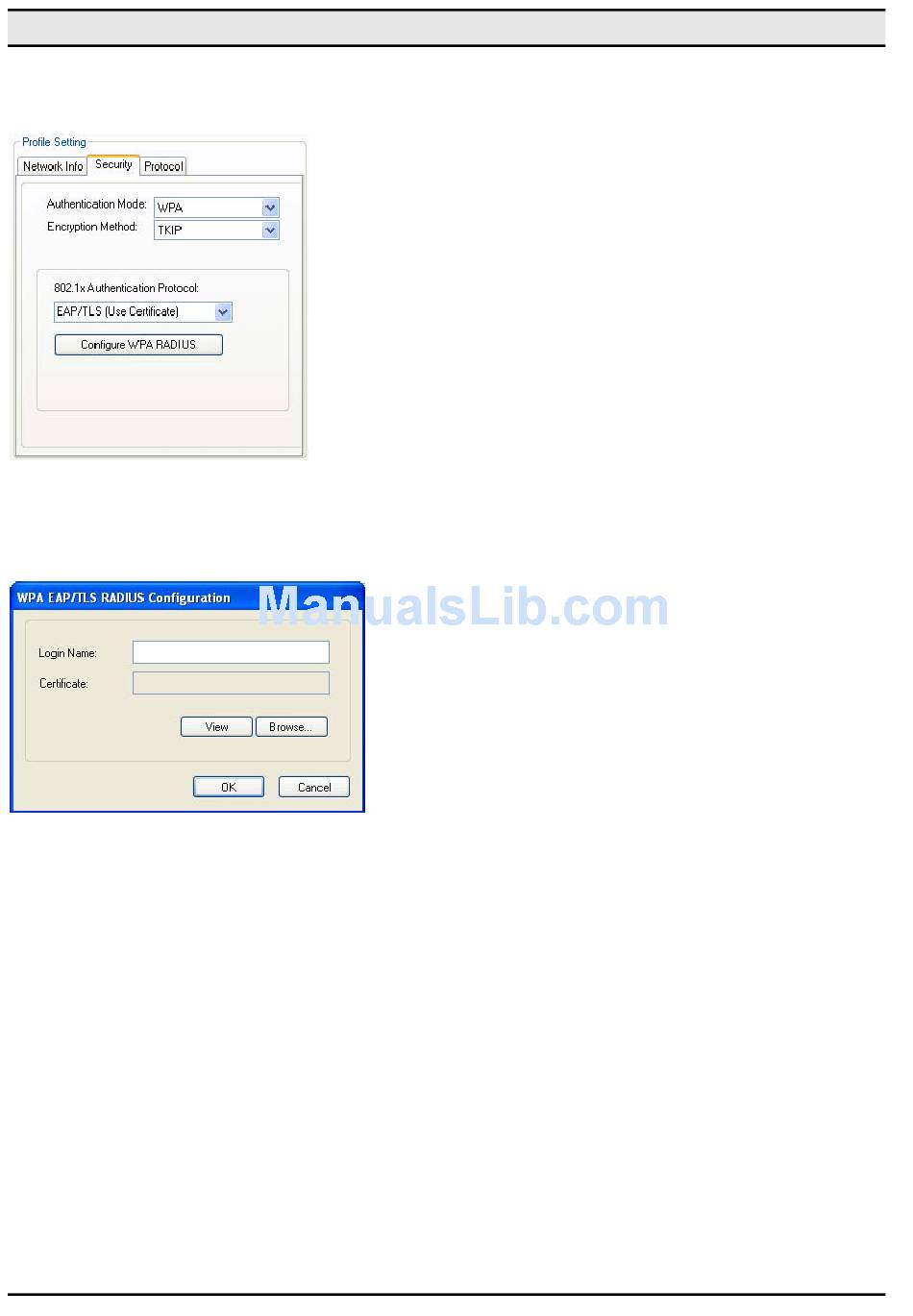

Security Tab—802.1x/WPA/WPA2 EAP/TLS Authentication
Figure 15:
4. Click the Configure WPA RADIUS button to configure security settings.
802.1x/WPA/WPA2 EAP/TLS RADIUS Configuration Window
Figure 16:
1.
5. Click Browse to activate the dialog for selecting a certificate.
2.
6. Before clicking OK to exit the dialog, make sure that the Login Name is entered.
12
—Using the Wireless Utility
