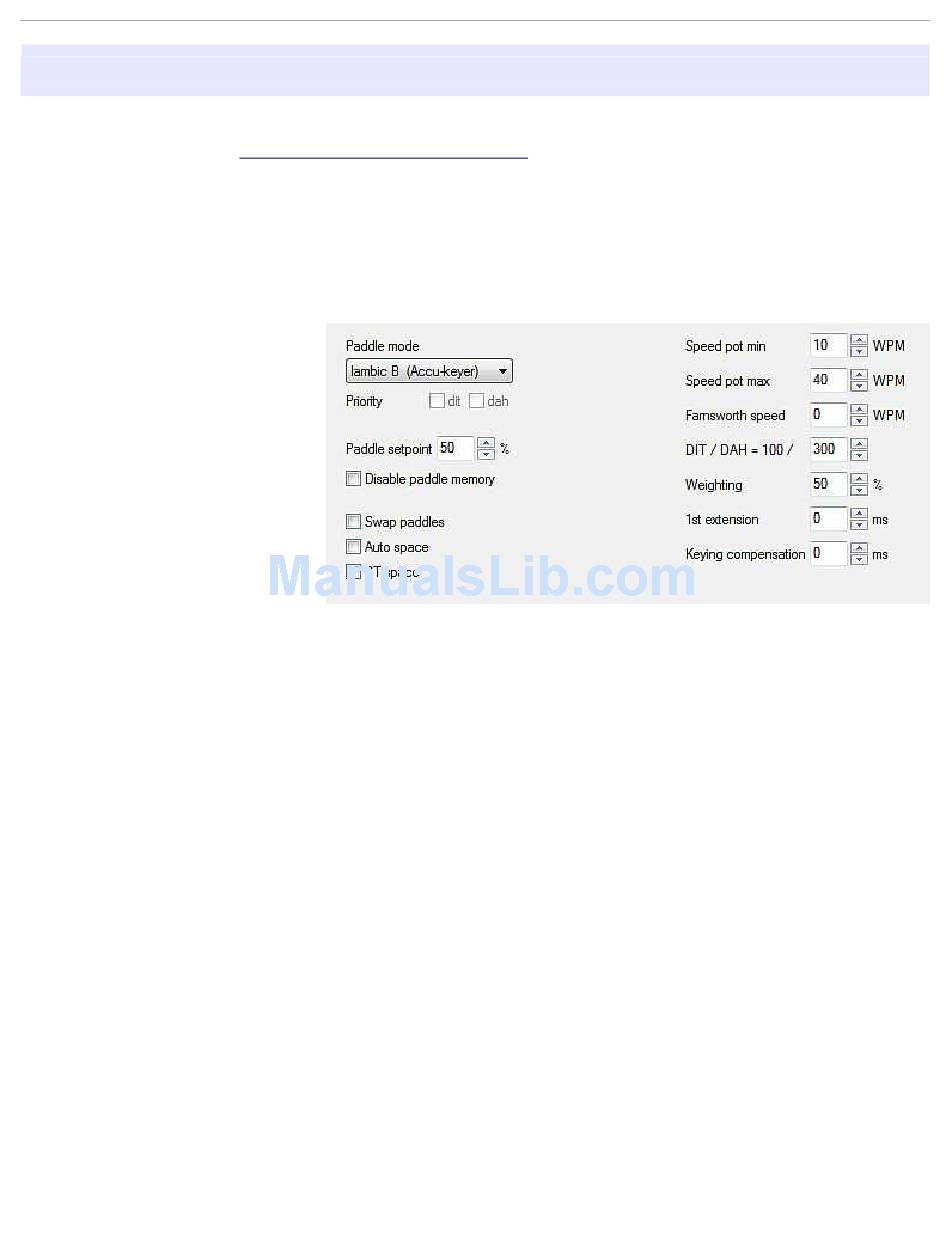

This tab provides the configuration for the WinKey based, internal CW keyer. A complete WinKey manual
can be downloaded from: http://k1el.tripod.com/docfiles.html. Thanks to Steve Elliott, K1EL for this great
product.
WinKey can be controlled by a logging program or operate in stand alone mode controlled by Router.
Router controls the speed range, Paddle mode and other timing characteristics of WinKey. When an
application opens WinKey, all buffer handling and speed changes are strictly under application control.
When WinKey is closed, the basic operating parameters can be adjusted on this tab. Every change is
applied immediately.
Paddle Mode
Iambic A (Curtis)
●
Iambic B (Accu-keyer)
●
Ultimatic (Single lever)
●
Bug Keyer
●
(Vibroplex emulation)
Priority – Ultimatic mode offers a
choice if DIT or DAH priority
for dual lever paddles. If no
priority is selected, the keyer
works in a "last paddle wins"
mode.
Paddle set point - controls when WinKey begins looking for a new paddle press after sensing the current
one. The default value is one dit time (50) and is adjustable in percent of a dit time.
Disable paddle memory – When checked, DIT (or DAH) insertion is disabled.
Swap paddles - Reverse paddle sense for left handed operation or improperly wired paddle.
Auto space - Keyer generates automatic character space.
CT space - Selects "contest" word space (six elements long instead of seven).
Speed pot min/max - Min/Max value of the front panel speed knob (9) in range 5 to 99 WPM.
Farnsworth speed – Sets the Farnsworth keying speed (10 to 99 WPM range, 0 disables this feature).
DIT / DAH - DIT/DAH ratio from 1:2 to 1:4 in hundreds. Accepted numbers are from 200 to 400.
Weighting - Weighting in percentage (from 10 to 90%).
st
1
extension - Extension of the first dit or dah in milliseconds (QSK only).
Keying compensation - Extension of each dit and dah in milliseconds ( QSK only).
microHAM © 2008 All rights reserved
CW/WinKey TAB
