Sealey AP1248SS Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Instructions
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this bench.
‰
Locate bench in a suitable working area.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
WARNING! Use bench on level and solid ground, preferably concrete. Avoid tarmacadam since the bench may sink into the surface.
‰
Keep the bench clean and tidy in accordance with good workshop practice.
9
Keep children and unauthorised persons away from the working area.
9
DO NOT use the bench for any purpose other than that for which it is designed.
8
DO NOT exceed maximum capacity of workbench.
8
DO NOT undertake work on the bench without the work piece being adequately secured. Use clamps or a vice (not included) to secure the
8
work piece. Available from your Sealey dealer.
DO NOT use the bench out of doors.
8
DO NOT get the bench wet or use in damp or wet locations or areas where there is condensation.
8
2. INTRODUCTION
i

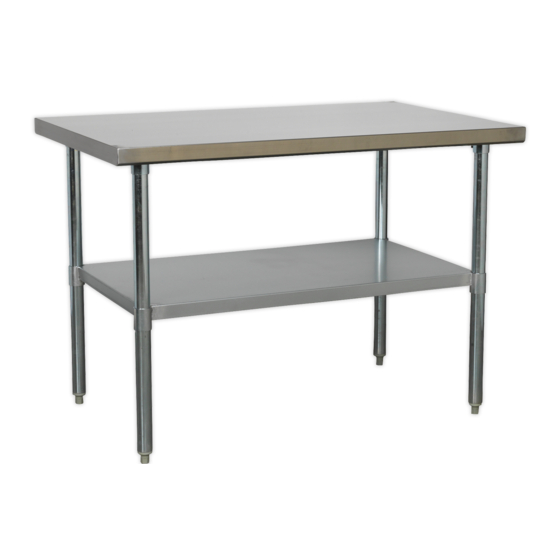

Galvanised steel frame with a 430 grade stainless steel worktop. Features an adjustable bottom shelf for added storage space. Maximum
capacity of 145kg on AP1284SS & AP1560SS and 170kg on AP1872SS & AP2148SS. Adjustable feet for levelling the workbench when placed
on an uneven surface.
3. SPECIFICATION
Model no: ..............................................................AP1284SS
Size (W x D x H):...................................1218 x 760 x 865mm
Bench top capacity: ...................................................... 100kg
Bottom shelf capacity: .................................................... 45kg
Model no: ..............................................................AP1560SS
Size (W x D x H):...................................1521 x 760 x 865mm
Bench top capacity: ...................................................... 100kg
Bottom shelf capacity: .................................................... 45kg
Model no: ..............................................................AP1872SS
Size (W x D x H):...................................1829 x 760 x 865mm
Bench top capacity: ...................................................... 120kg
Bottom shelf capacity: .................................................... 50kg
Model no: ..............................................................AP2184SS
Size (W x D x H):...................................2136 x 760 x 865mm
Bench top capacity: ...................................................... 120kg
Bottom shelf capacity: .................................................... 50kg
4. CONTENTS
Item Description
1 Table top
2 Shelf
3 Legs
4 Socket screws
© Jack Sealey Limited
INSTRUCTIONS FOR
STAINLESS STEEL WORKBENCH
MODEL NO:
Qty.
1
1
4
8
Original Language Version
AP1248SS, AP1560SS, AP1872SS, AP2184SS
AP1284SS, AP1560SS, AP1872SS, AP2184SS | Issue 2 25/08/17
