Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.
SAFETY INSTRUCTIONS
1.1
GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice
!
regulations are adhered to when using this bench.
Locate bench in a suitable work area.
"
Keep the work area clean, uncluttered and ensure there is adequate lighting.
"
WARNING! Use bench on level and solid ground, preferably concrete.
!
Keep the bench clean and tidy in accordance with good workshop practice.
"
Keep children and unauthorised persons away from the work area.
"
DO NOT use the bench for any purpose other than that for which it is designed.
#
DO NOT undertake work on the bench without the workpiece being adequately secured. Use
#
clamps or a vice (not included) to secure the workpiece. Available from your Sealey dealer.
DO NOT use the bench outdoors.
#
DO NOT get the bench wet or use in damp or wet locations or areas where there is
#
condensation.
DO NOT clean the bench with any solvents which may damage the surface or the protective
#
coating on the worktop.
2.
CONTENTS
2.1
Carefully unpack the product and check the contents against the diagrams below. Should any items be missing or damaged make
immediate contact with your Sealey dealer.

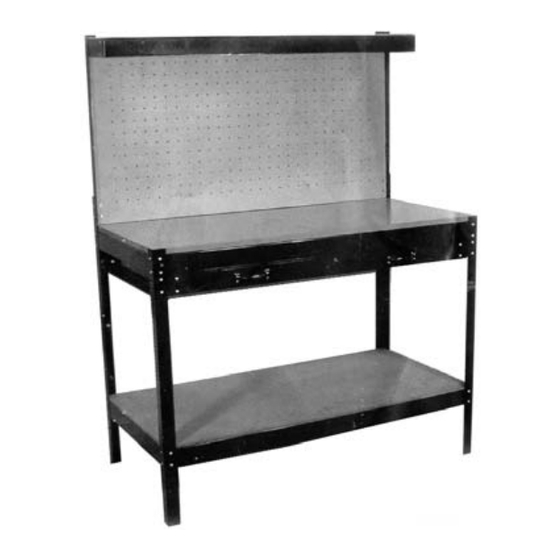

1.2 METRE WORKBENCH WITH DRAWER
MODEL
Please Note: These numbers relate to the parts
as packed in the box.
A.
Bottom plate (1200 x 600 x 9mm)
B.
Table top (1200 x 600 x 18mm)
C.
Holed plate (1200 x 606 x 6mm)
D.
Top plate (1196 x 220 x 6mm)
1.
Bolt M6 x 15mm (x6)
2.
Bolt M6 x 10mm (x54)
3.
Nut M6 (x60)
4.
Washer M6 (x120)
5.
Wood screw (x4)
6.
Tool hooks for holed plate (x30)
10.
Top rail 1198mm (x1)
11.
Cross member 1200mm (x5)
12.
Left holed plate support (x1)
13.
Right holed plate support (x1)
14.
Left top cantilever arm 220mm (x1)
15.
Right top cantilever arm 220mm (x1)
16.
Side rail 600mm (x4)
17.
Left rear leg 1000mm (x1)
18.
Right rear leg 1000mm (x1)
19.
Left front leg 900mm (x1)
20.
Right front leg 900mm (x1)
21.
Left guide rail 602mm (x1)
22.
Right guide rail 602mm (x1)
23.
Drawer 450mm x 1115mm (x1)
INSTRUCTIONS FOR:
AP12600
:
AP12600 - 2 - 161006
