Sealey AP1200M Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1 GENERAL SAFETY
! Dispose of waste fluids in accordance with local authority regulations.
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations
"
are adhered to when using this bench.
Locate bench in a suitable working area.
!
Keep the work area clean, uncluttered and ensure there is adequate lighting.
!
WARNING! Use bench on level and solid ground, preferably concrete. Avoid tarmacadam
"
since the bench may sink into the surface.
Keep the bench clean and tidy in accordance with good workshop practice.
!
Keep children and unauthorised persons away from the working area.
!
WARNING! This bench is not electrically insulated and is therefore not suitable for electrical
"
repairs of any sort.
DO NOT use the bench for any purpose other than that for which it is designed.
#
DO NOT do work on the bench without the workpiece being adequately secured. Use clamps
#
or a vice (not included) to secure the workpiece. Available from your Sealey dealer.
DO NOT use the bench out of doors.
#
DO NOT get the bench wet or use in damp or wet locations or areas where there is condensation.
#
DO NOT clean the bench with any solvents which may damage the paint surface.
#
WARNING! This is a heavy product, assistance will be needed during assembly.
"
2. CONTENTS
2.1 Remove all parts and fixings from the box. Ensure that you have adequate help to remove the bench top from the box (It is too heavy
for one person to lift safely).
2.2 Check the contents against the parts listed below. Should there be any damaged or missing parts contact your supplier immediately.
5
INSTRUCTIONS FOR:

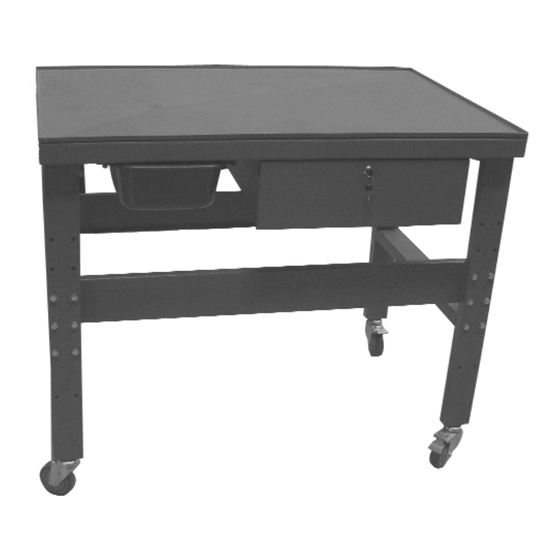

MOBILE WORKBENCH WITH OIL DRAIN
Model:
4
AP1200M
1
REF.
1
2
3
4
5
6
7
8
9
10
11
12
2
13
14
3
6
DESCRIPTION QUANTITY
Workbench Top
Long Support Bar
Workbench Legs
Short Support Bar
Oil Drainage Bowl
Drawer
Swivel Wheel
Locking Swivel Wheel
Male and Female
Ball Bearing Sliders
Large Bolts
Small Bolts
Washers
Screws
Nuts
8
7
9
10
13
12
1
2
4
2
1
1
1
1
2
24
8
32
6
16
11
AP1200M - 1 - 110507
