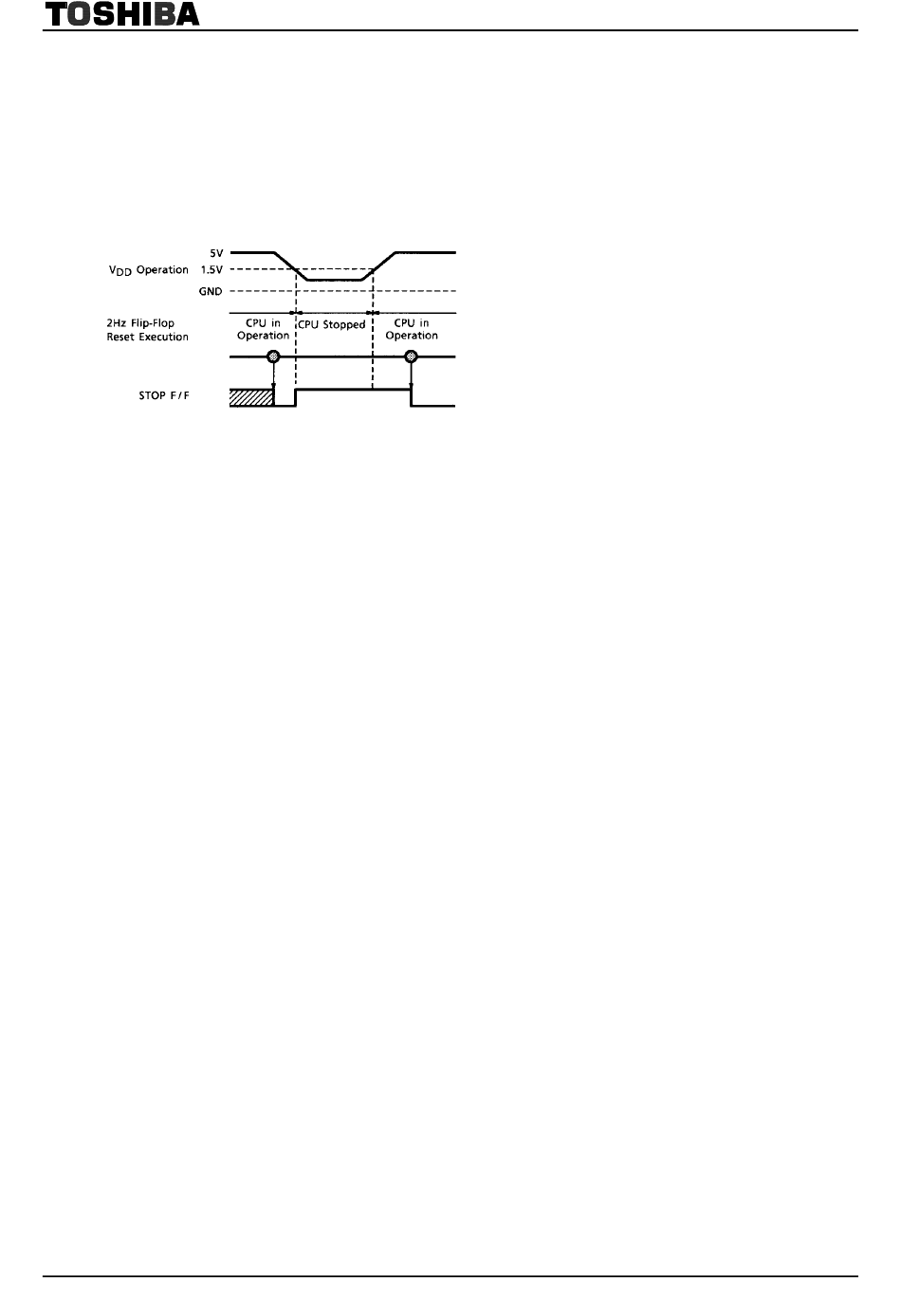

3. CPU Stop Function, STOP Flip-Flop Bit

The STOP flip-flop bit is set to "1" when the V

prevents CPU malfunction by shutting down the CPU. When a voltage of 1.5 V or less is applied to the V

pin, the program counter stops and instruction execution ceases in the CPU.

When a voltage higher than 1.5 V is again applied to the V

was shut down, the clock and other timings are no longer valid. Use the STOP flip-flop to test whether the

CPU stop function operated. Perform initialization or clock correction if required.

The STOP flip-flop bit is reset to "0" whenever the RESET port 2 Hz flip-flop is set to "1".

Note 63: After a system reset or execution of the CKSTP instruction, the timer port and the STOP flip-flop are

reset to "0".

Note 64: If the V

voltage falls below 1.5 V when clock-stop mode is set, the CKSTP instruction cannot be

executed. Be careful with the supply voltage timing, for example, when the radio is off.

Note 65: The key scan data immediately after restarting the CPU are undefined.

voltage applied to the CPU falls below 1.5 V. This

pin, the CPU starts up again. As the CPU
