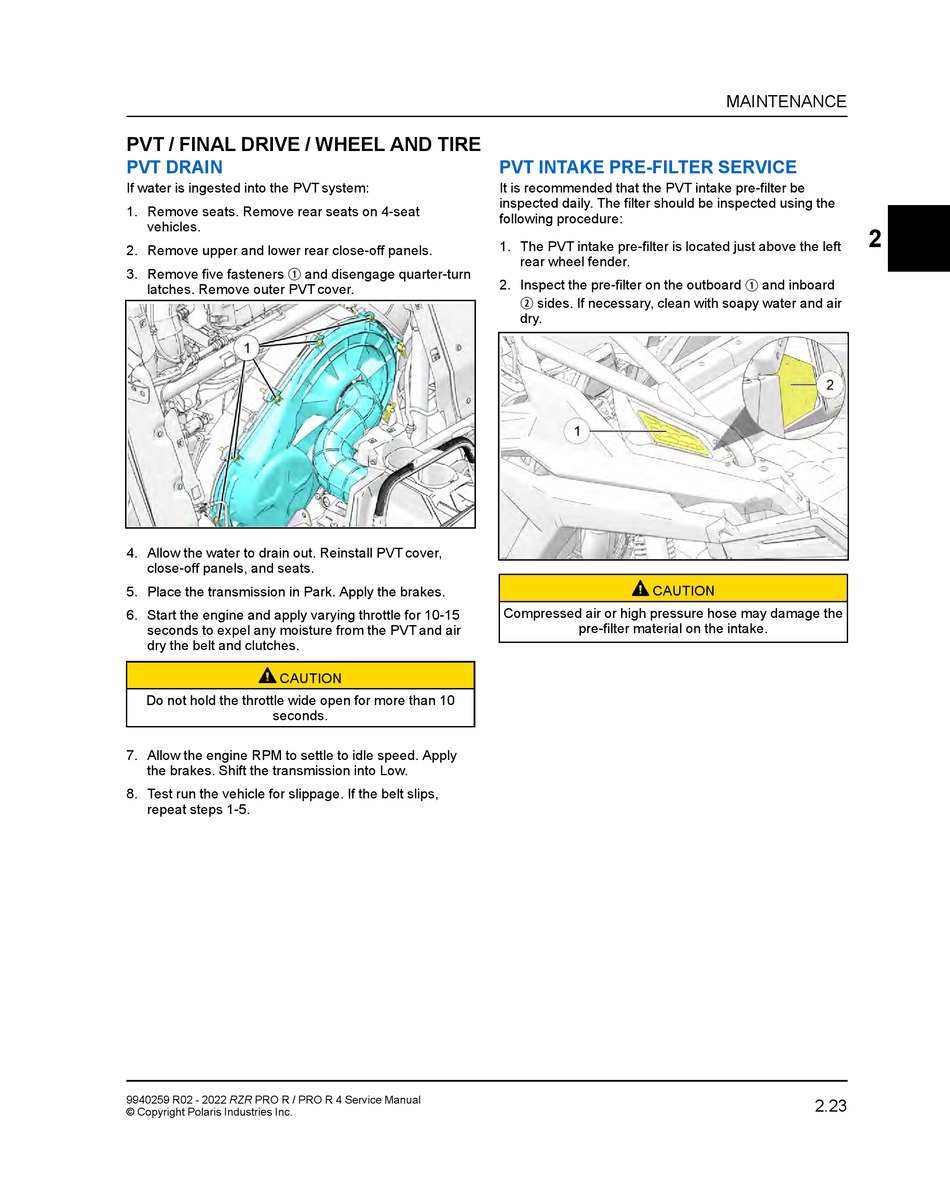

PVT / FINAL DRIVE / WHEEL AND TIRE

PVT DRAIN

If water is ingested into the PVT system:
1. Remove seats. Remove rear seats on 4-seat
vehicles.
2. Remove upper and lower rear close-off panels.
q
3. Remove five fasteners and disengage quarter-turn
latches. Remove outer PVT cover.
4. Allow the water to drain out. Reinstall PVT cover,
close-off panels, and seats.
5. Place the transmission in Park. Apply the brakes.
6. Start the engine and apply varying throttle for 10-15
seconds to expel any moisture from the PVT and air
dry the belt and clutches.
CAUTION
Do not hold the throttle wide open for more than 10
seconds.
7. Allow the engine RPM to settle to idle speed. Apply
the brakes. Shift the transmission into Low.
8. Test run the vehicle for slippage. If the belt slips,
repeat steps 1-5.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.

PVT INTAKE PRE-FILTER SERVICE

It is recommended that the PVT intake pre-filter be
inspected daily. The filter should be inspected using the
following procedure:
1. The PVT intake pre-filter is located just above the left
rear wheel fender.
2. Inspect the pre-filter on the outboard
w
sides. If necessary, clean with soapy water and air
dry.
CAUTION
Compressed air or high pressure hose may damage the
pre-filter material on the intake.
MAINTENANCE
2
q
and inboard
2.23
