Card Interfaces And Details - Xilinx VCK5000 Installation Manual

Steps to install and remove the card fan assembly are provided in
Removal and Installation.
CAUTION! If the fan assembly is removed from the card and the card is powered-up, external fan cooling
airflow MUST be applied to prevent over-temperature shut-down and possible damage to the card
electronics.

Card Interfaces and Details

The card includes the following interfaces:
• A PCIe card connector
• Two QSFP28 connectors
• Micro-USB Port
• A maintenance connector
Used to program the card in RTL flow through the programming cable. For more information
see the Alveo Programming Cable User Guide (UG1377).
Micro-USB Connector
UG1531 (v1.0) March 4, 2022
VCK5000 Hardware Install Guide

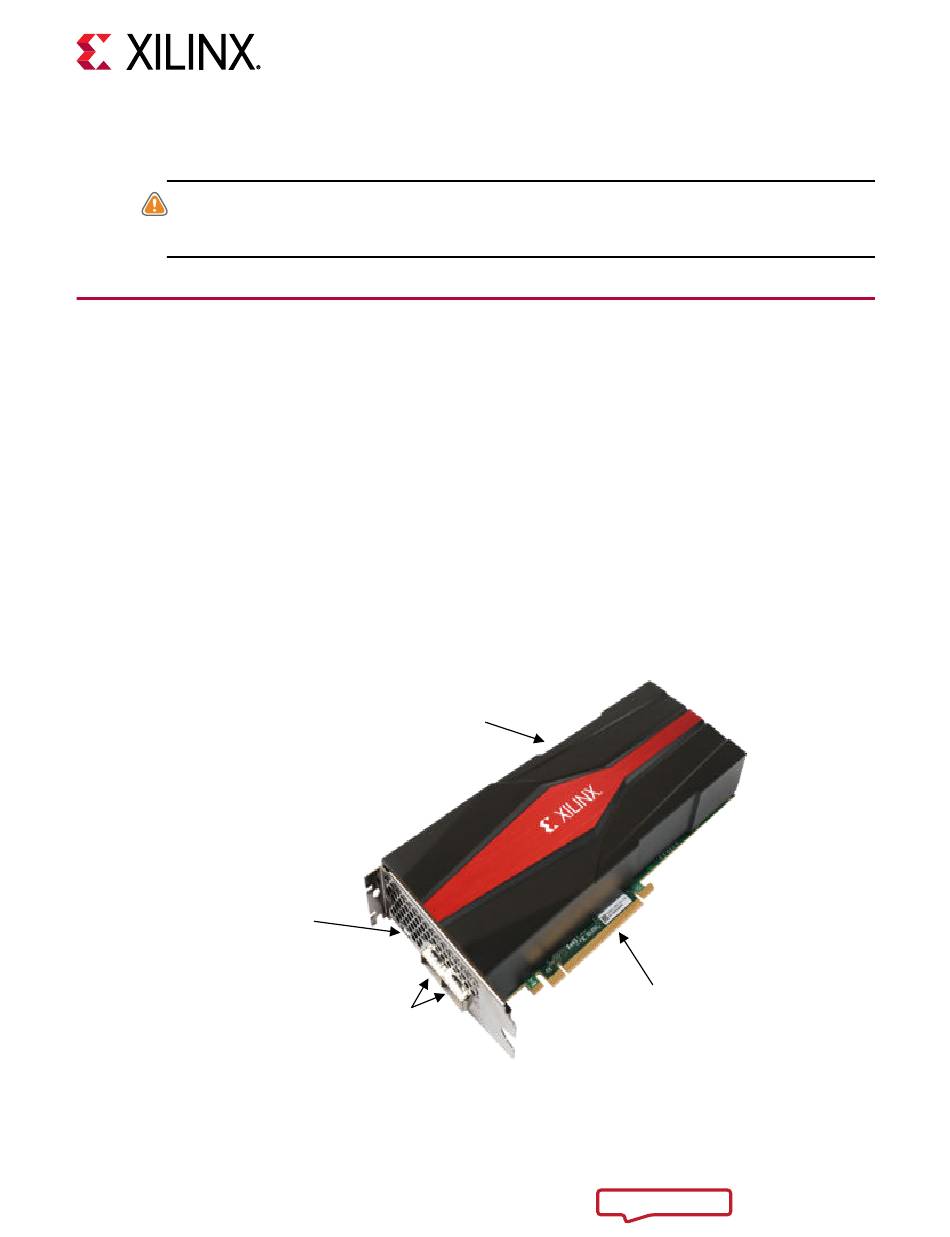

Figure 3: VCK5000 Card with Half-Height Bracket
Maintenance Port
QFSP28 Interface
Chapter 2: Accelerator Card Overview
Appendix A: Fan Assembly
PCIe Connector
