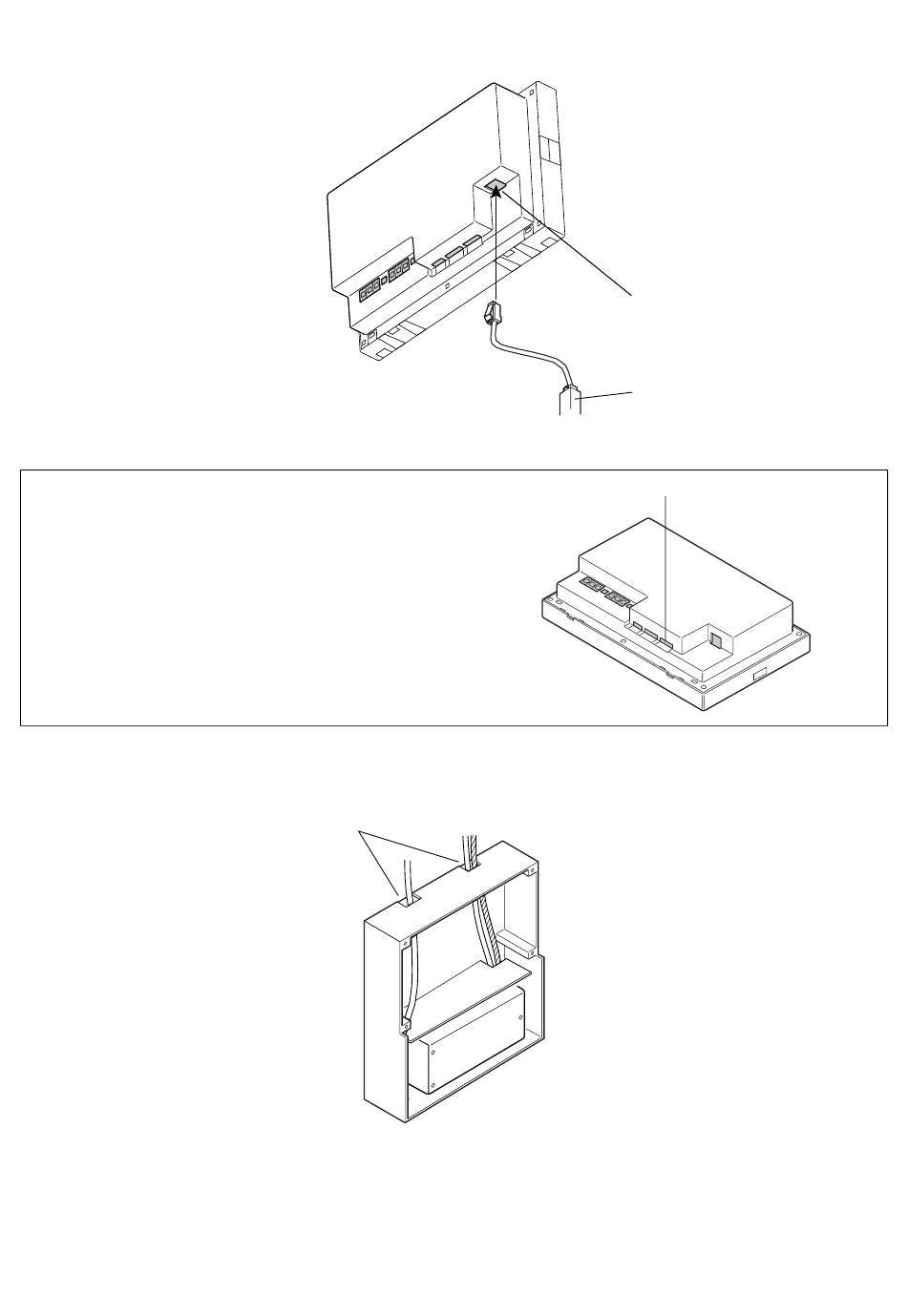

(10) If the AG-150A is not always connected to the LAN, connect the supplied LAN link-up cable to the LAN connector.
(* If the AG-150A is always connected to the LAN, connect the LAN cable (field supplied) via a HUB and the LAN link-up
cable is not required.)
(11) To use the external I/O, connect the external I/O cable (PAC-YG10HA; sold separately) to CN5 on the AG-150A.
NOTE
• When connecting the external input/output cables to connector
CN5 on the controller, punch out the knockout hole.
(12) Securely seal the cable lead-in port with putty to prevent dew, water and insect, etc. from entering.
Seal with putty
- 8 -
LAN
LAN link-up cable (supplied)
Punch out the knockout hole
