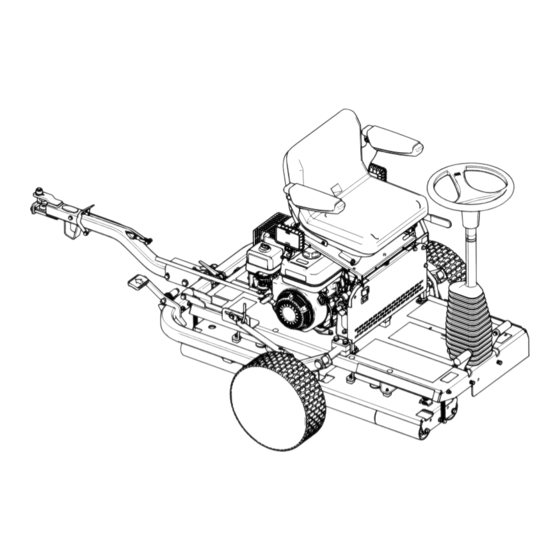

Toro GreensPro 1260 Greens Roller Operator's Manual
Toro GreensPro 1260 Greens Roller Operator's Manual

Toro GreensPro 1260 Greens Roller Operator's Manual

Serial no. 403316784 and up

Advertisement

Register at www.Toro.com.
Original Instructions (EN)
GreensPro
Model No. 44913—Serial No. 403316784 and Up
Form No. 3423-912 Rev B
1260 Greens Roller
*3423-912* B

Advertisement

Table of Contents
loading

Summary of Contents for Toro GreensPro 1260 Greens Roller

  • Page 1 Form No. 3423-912 Rev B GreensPro ™ 1260 Greens Roller Model No. 44913—Serial No. 403316784 and Up *3423-912* B Register at www.Toro.com. Original Instructions (EN)
  • Page 2 Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product.
  • Page 3: Table Of Contents

    Contents Checking and Adjusting the Parking Brake ............31 Cleaning .............. 32 Safety ............... 4 Storage ..............32 General Safety ........... 4 Safety and Instructional Decals ......4 Setup ................ 7 1 Installing the Transport Wheels ......8 2 Installing the Hitch Assembly ......8 3 Removing the Machine from the Pallet.............
  • Page 4: Safety

    Safety • Do not operate the machine without all guards and other safety protective devices in place and working on the machine. This machine has been designed in accordance with • Keep bystanders and pets a safe distance away EN ISO 12100:2010 and ANSI B71.4-2017. from the machine.
  • Page 5 decal120-0627 120-0627 1. Cutting/dismemberment hazard, fan—stay away from moving parts, keep all guards and shields in place. decal127-5885 127-5885 1. Hitch unlock—1) push 2. Read the Operator's down on the latch; 2) pull Manual. out the hitch. decal133-1701 133-1701 1. Warning—read the 4.
  • Page 6 decal127-5884 127-5884 1. Read the Operator’s Manual. 3. 1) Push the hitch up; 2) Release the latch lever; 3) Pull the hitch down; 4) Step on the foot pedal until the hitch snaps into place; 5) Insert the lock pin. 2.
  • Page 7: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Transport wheel Install the transport wheels. Lock bracket Bolt (M10 x 30 mm) Lock washer (M10) Washer (M10) Nut (M10) Hitch assembly Install the hitch assembly.
  • Page 8: Installing The Transport Wheels

    Installing the Transport Installing the Hitch Wheels Assembly Parts needed for this procedure: Parts needed for this procedure: Lock bracket Transport wheel Bolt (M10 x 30 mm) Lock washer (M10) Procedure Washer (M10) Remove the lug nuts securing the wheel hubs to Nut (M10) the shipping brackets (Figure...
  • Page 9 • In the front holes, use a bolt (M10 x 100 mm), 2 washers (M10), and a locknut (M10). • In the rear holes, use a bolt (M12 x 100 mm), 2 washers (M12), and a locknut (M12). • If your machine has a third washer included with each bolt, use those washers as spacers between the hitch and the inside of the hitch pivot bracket...
  • Page 10: Removing The Machine From The Pallet

    g024330 Figure 9 1. Wood blocks Place some wood boards on the ground at the end of the pallet. Note: The height of the wood boards should be slightly lower than the pallet. You can use pieces removed from the sides and/or ends of the crate. Carefully roll the machine off the pallet, onto the wood boards, and then to the ground.
  • Page 11: Product Overview

    Controls Product Overview Note: Refer to your engine owner’s manual for complete control information. Parking Brake Engage the parking brake to allow the machine to start. To engage the parking brake (Figure 12), pull back on the parking-brake lever. To disengage it, push the lever forward.
  • Page 12: Engine Controls

    Hour Meter connected so that they cannot both be pressed down at the same time, you can press only 1 pedal at a The hour meter (Figure 10) indicates the total hours of time. If you press down the right pedal, the machine machine operation.
  • Page 13: Specifications

    Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories.
  • Page 14: Operation

    Operation Ensure that all guards and covers are in place and firmly attached. Check the level of the engine oil. Note: Determine the left and right sides of the machine from the normal operating position. Ensure that there is fuel in the fuel tank. Ensure that the parking brake is engaged.
  • Page 15: Checking The Level Of The Hydraulic Fluid

    Authorized Toro Distributor for part numbers.) Note: Do not screw the dipstick into the port. Alternative fluids: If the Toro fluid is not available, Remove the dipstick and check the oil level. other conventional, petroleum-based fluids may be Note:...
  • Page 16: Checking The Tire Pressure

    One bottle is sufficient for 15 to 22 L (4 to 6 US gallons) of hydraulic fluid. Order Part No. 44-2500 from your Authorized Toro Distributor. Position the machine on a level surface, shut off the engine, and engage the parking brake.
  • Page 17: Filling The Fuel Tank

    Filling the Fuel Tank • For best results, use only clean, fresh (less than 30 days old), unleaded gasoline with an octane rating of 87 or higher ((R+M)/2 rating method). • Ethanol: Gasoline with up to 10% ethanol (gasohol) or 15% MTBE (methyl tertiary butyl ether) by volume is acceptable.
  • Page 18: Starting The Engine

    Move the throttle control to the F position. • Use accessories, attachments, and replacement parts approved by The Toro® Company only. Stand at the rear of the machine, pull the recoil-start handle out until positive engagement • Keep hands and feet away from the rollers.
  • Page 19: Checking The Safety-Interlock System

    Important: If the safety-interlock system does not operate as described below, have an Authorized Toro Distributor repair it immediately. Engage the parking brake, ensure that the motion pedals are in the position, and NEUTRAL start the engine.
  • Page 20: Transporting The Machine

    Transporting the Machine Drive the machine to the transport vehicle. Engage the parking brake. Move the throttle lever to the low-speed position, and allow the engine to run for 10 to 20 seconds. Turn the On/Off switch to the O position.
  • Page 21: Operating The Machine

    Hold onto the steering wheel, and slowly press either the left or right motion pedal with your corresponding foot, in whichever direction you wish to move. Note: The further you press the pedal, the faster you will travel in that direction. To stop the machine, release the foot pedal.
  • Page 22: Maintenance

    • Check over the entire machine, including ensuring that all nuts and bolts are tight. Yearly Important: Refer to your engine owner's manual for additional maintenance procedures. Note: To obtain an electrical schematic or a hydraulic schematic for your machine, visit www.Toro.com.
  • Page 23 WARNING If you are not careful with hazardous substances, they can cause serious personal injury. • Read the labels and instructions for the materials that you use. • Wear the necessary personal protective safety equipment, and use hazardous substances carefully. The following fluids are identified as being hazardous: Substances Assessed Risk...
  • Page 24: Notation For Areas Of Concern

    Notation for Areas of Concern Inspection performed by: Item Date Information Daily Maintenance Checklist Duplicate this page for routine use. For the week of: Maintenance Check Item Mon. Tues. Wed. Thurs. Fri. Sat. Sun. Check that the pivot joints operate freely. Check the fuel level.
  • Page 25: Pre-Maintenance Procedures

    Pre-Maintenance Lubrication Procedures Lubricating the Drive-Roller Do not tilt the machine unless it is necessary. If you Bearing tilt the machine, engine oil could enter the cylinder head of the engine, and hydraulic fluid could leak from Service Interval: Before each use or daily (lubricate the cap located on top of the tank.
  • Page 26: Engine Maintenance

    Engine Maintenance Engine Safety • Shut off the engine before checking the oil or adding oil to the crankcase. • Do not change the governor speed or overspeed the engine. Changing the Engine Oil Service Interval: After the first 20 hours—Change the engine oil.
  • Page 27: Servicing The Air Cleaner

    Servicing the Air Cleaner Inspect both air-filter elements, and replace them if they are damaged. Service Interval: Before each use or daily—Check Note: Always replace the paper air-filter the air cleaner. element at the scheduled interval. Every 50 hours—Clean the air cleaner (more Clean the foam element as follows: often in dirty or dusty conditions).
  • Page 28: Checking And Adjusting The Valve Clearance

    • When installing a new spark plug, tighten it 1/2 turn after the spark plug seats, to compress the washer. • When installing the original spark plug, tighten it 1/8 to 1/4 turn after the spark plug seats, to compress the washer. Note: A loose spark plug can overheat and damage the engine.
  • Page 29: Fuel System Maintenance

    Fuel System Maintenance Cleaning the Sediment Cup Service Interval: Every 100 hours—Clean the sediment cup. DANGER In certain conditions, fuel is extremely flammable and highly explosive. A fire or g025917 explosion from fuel can burn you and others Figure 34 and can damage property.
  • Page 30: Drive System Maintenance

    Every 400 hours—Change the hydraulic fluid Clean the area around the filter mounting area. and filter. Place a drain pan under the filter and remove Important: Use only Toro Premium All Season the filter (Figure 36). Hydraulic Fluid (ISO VG 46) or an equivalent fluid.
  • Page 31: Brake Maintenance

    Brake Maintenance Lubricate the sealing gasket, install the filter by hand until the gasket contacts the filter head, then tighten it 3/4 turn further. Checking and Adjusting the Note: The filter should now be sealed. Parking Brake Remove the hydraulic-tank cap (Figure 20).
  • Page 32 Repair or replace any part that is worn or damaged. Paint all scratched or bare metal surfaces. Paint is available from your authorized Toro distributor. Store the machine in a clean, dry garage or g036788 storage area. Cover the machine to protect it Figure 39 and keep it clean.
  • Page 33 Notes:...
  • Page 34 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
  • Page 35 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
  • Page 36 Countries Other than the United States or Canada Customers should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.

This manual is also suitable for:

Greenspro 44913Greenspro 126044913
