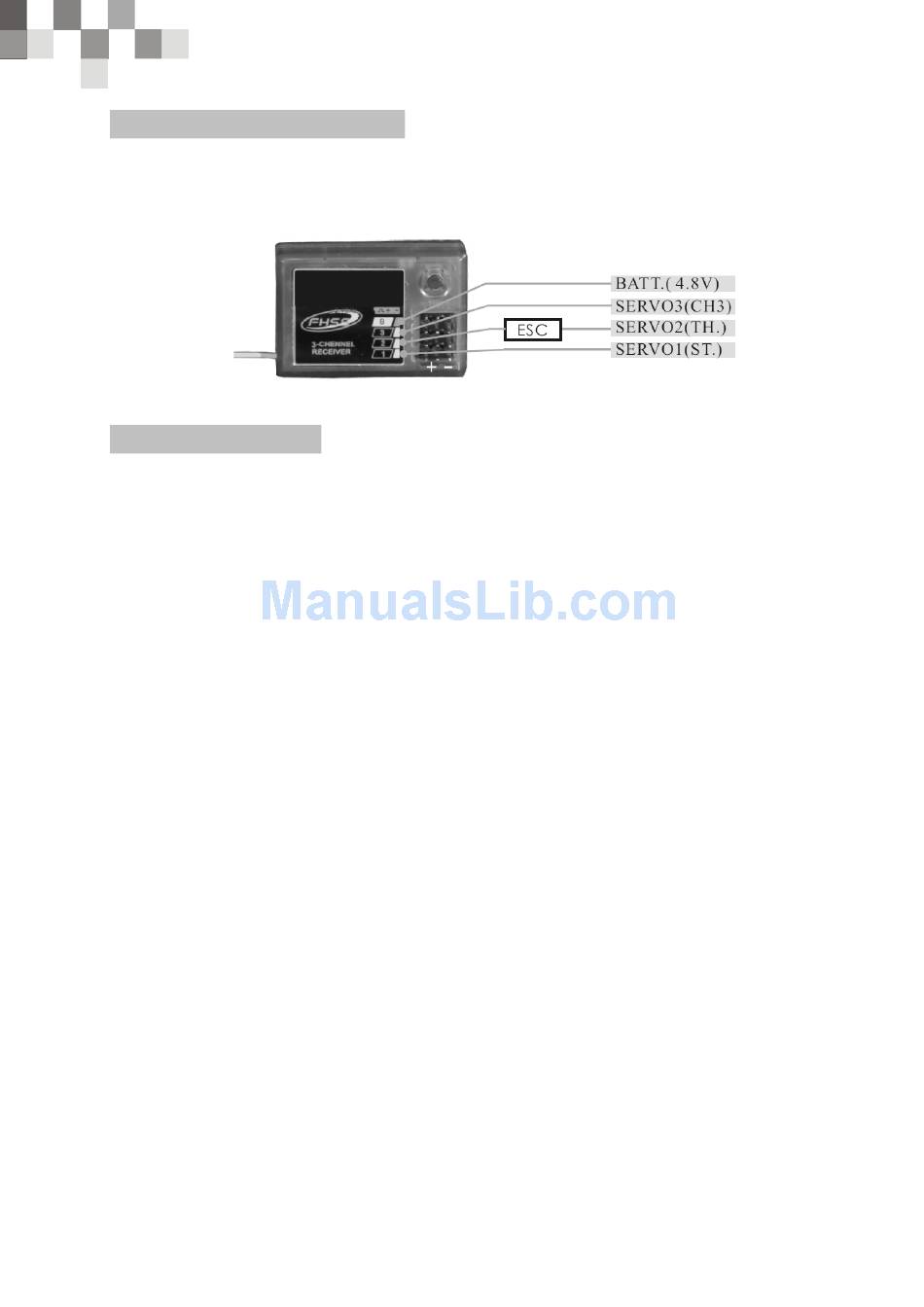

3.3 Wiring of the receiver

• Always ensure the correct wiring of your servos!
• BEC-enabled electronic controllers are connected directly to the channel 2.

3.4 Technical data

2.4GHz transmission, characteristics
• The RC-System use the FHSS technology
• The RC-System operates in the range 2.403 to 2.477 GHz (ISM band universally
approved)

Transmitter:

Type: TL-3C with LCD
Technology: FHSS
Channels: 3
Frequency band: 2,4GHz
Voltage: 9,6V, <150mA
Weight: 360 g

Receiver:

Type: XY3000 - Art. Nr.: R01550
Technology: FHSS
Channels: 3
Frequency band: 2.4GHz
Voltage: 4,8~6V <30mA
Weight: 9 g
Operating temperature: 0º bis 70ºC.
FCC ID:V6KN-4Q
This device complies with Part 15 of the FCC Rules. The use of the device depends
on the following conditions:
1. The device may not cause harmful interference.
2. The device works even if it receives Disturbances that could lead to malfunctions
26
