high side, selection from among three kinds of curves (EXP/VTR/CUR) is also
possible.
Note: When the course conditions are good and there is no sense of torque at the
power unit, set each curve to the + side (quick side). When the road surface is
slippery and the drive wheels do not grip it, set each curve to the - minus (mild) side.
Note: Brake side only has EXP curves.
1 Press "ENTER" to see FUNCTION MENU
2 Use the +/- Keys to select the TH CURV function and press ENTER.
3 Press ENTER to select a setting.
4 Use the +/- Key to change the value.
5 Press EXIT to save and return to FUNCTION MENU, press EXIT again to return to
the Main Screen.

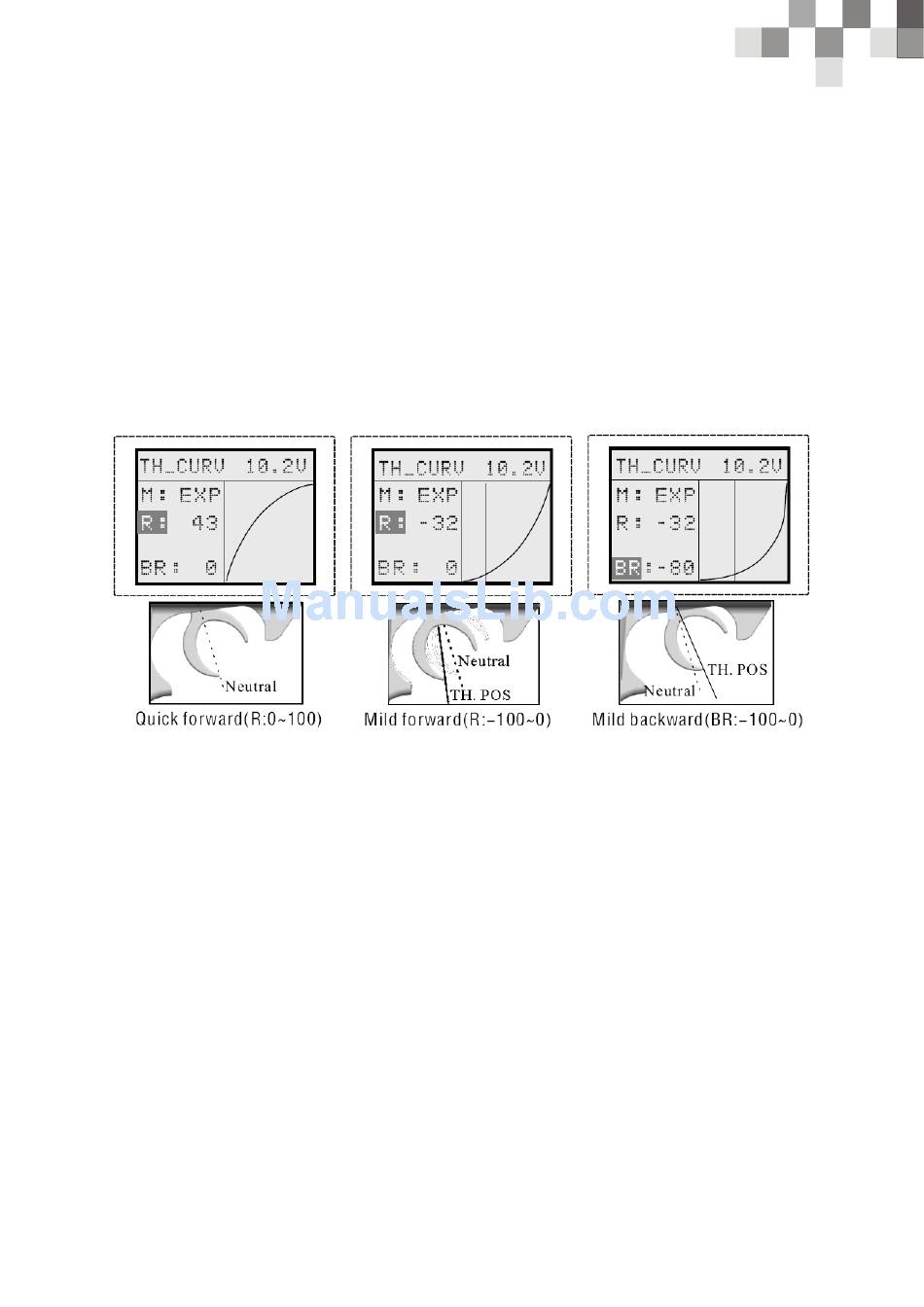

Adjustment method for EXP curve

• Select EXP at setup item "M"
• Select setup item "R" and make the following adjustments:
1 .Forward side adjustment:
Use the "+" button to adjust the + side when you want to quicken the rise and use the
"-" button to adjust the - side when you want to make the rise milder.
2. Brake side adjustment:
Select the setting item "BR" by ENTER button and use the "+" button to adjust the +
side when you want to quicker the rise and use the "-" button to adjust the - side
when you want to make the rise milder.
3. When ending setting, return to the initial screen by pressing "EXIT".
13
