Toro Multi Pro 1200 Service Manual
Hide thumbs Also See for Multi Pro 1200:
Table of Contents

Advertisement

Quick Links

Preface

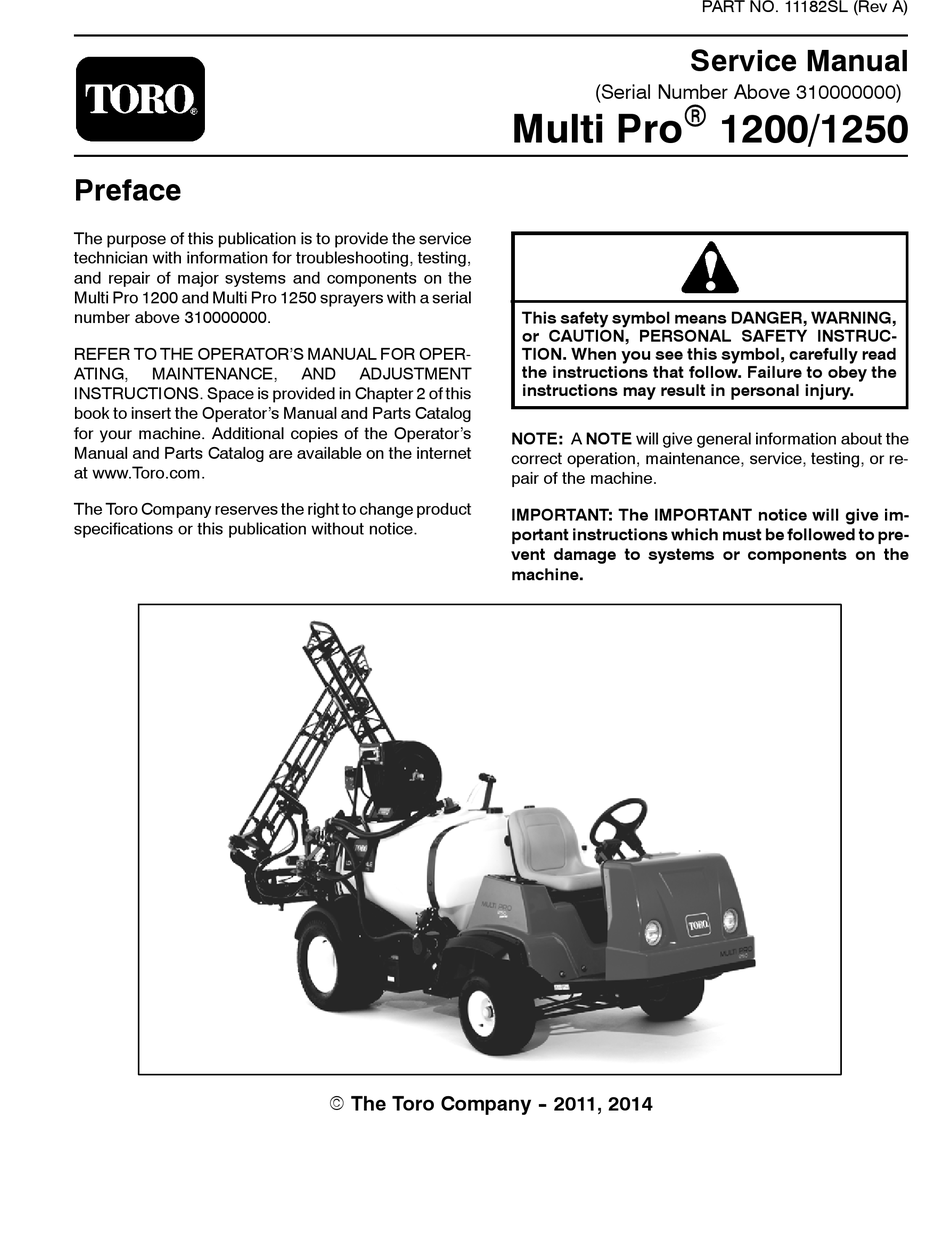

The purpose of this publication is to provide the service
technician with information for troubleshooting, testing,
and repair of major systems and components on the
Multi Pro 1200 and Multi Pro 1250 sprayers with a serial
number above 310000000.
REFER TO THE OPERATOR'S MANUAL FOR OPER-
ATING,
MAINTENANCE,
INSTRUCTIONS. Space is provided in Chapter 2 of this
book to insert the Operator's Manual and Parts Catalog
for your machine. Additional copies of the Operator's
Manual and Parts Catalog are available on the internet
at www.Toro.com.
The Toro Company reserves the right to change product
specifications or this publication without notice.
AND
ADJUSTMENT
E The Toro Company - - 2011, 2014
Service Manual
(Serial Number Above 310000000)
Multi Pro
R
This safety symbol means DANGER, WARNING,
or CAUTION, PERSONAL SAFETY INSTRUC-
TION. When you see this symbol, carefully read
the instructions that follow. Failure to obey the
instructions may result in personal injury.
NOTE: A NOTE will give general information about the
correct operation, maintenance, service, testing, or re-
pair of the machine.
IMPORTANT: The IMPORTANT notice will give im-
portant instructions which must be followed to pre-
vent damage to systems or components on the
machine.
PART NO. 11182SL (Rev A)
1200/1250
