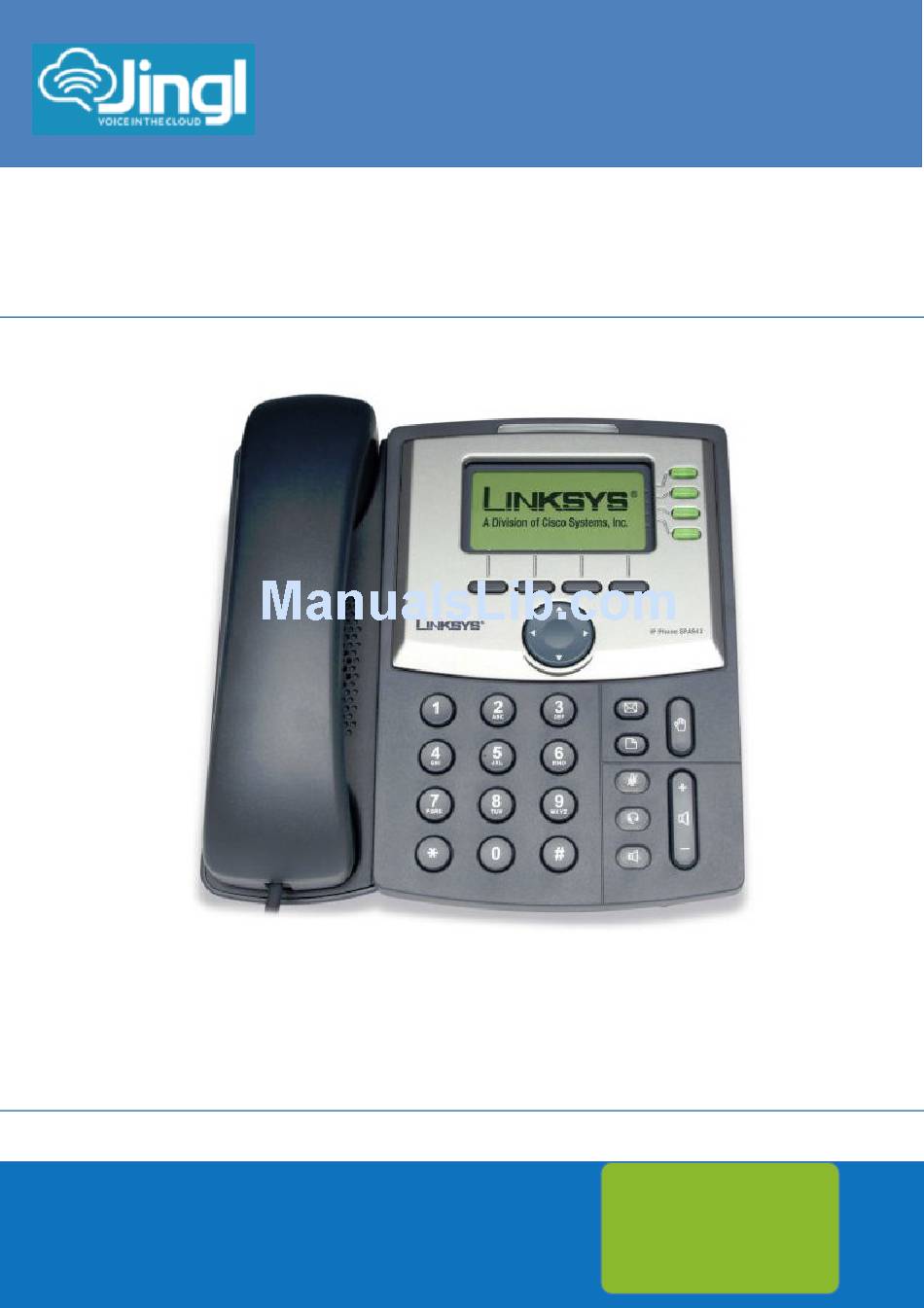

- Page 1 LINKSYS SPA942 Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.au...
- Page 2 Configuring Linksys SPA942 View and record the unique MAC address of the handset which can be found at the base of the handset. Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5...
- Page 3 Logon to the jingl web portal, using specific customer domain URL https://’customer’.jingl.com.au Enter your User Name and Password Presented with Dashboard Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.au...
- Page 4 Select and click the settings menu Click on “Add new” In general tab, choose and enter extension number and a display name Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.au...
- Page 5 Select and expand Provisioning tab. Enter the MAC address of the phone Select and expand Hardware Type. Select the phone model Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.au...
- Page 6 Click Add to finish your extension configuration. Connect your phone on the network with a DHCP server, and find out phone’s IP address. On handset press Menu > Network > Current IP Address (Menu, 9,2). Record IP Address Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0...
- Page 7 Use a compatible browser to browse the phone web menu using phones IP address Login to the web interface go to “Admin Login” and select “Advanced” Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.au...
- Page 8 Browse and select Provisioning Server Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.au...
- Page 9 Enable the provision and set the “Profile Rule” with the following string http://tftp.jingl.com.au/tftp/$MA.cfg Head Office: 1300 0 JINGL 1A Weston Street Balwyn 3103, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.au...
- Page 10 11. Click on “Submit All Changes” button (bottom of screen) to save the configuration 12. Restart the phone for the new settings to take place, the phone will download and configure all settings from the provisioning server as well as any necessary firmware files.
