2. INSTALLATION

For a correct installation, turn the device off and read the following instructions.
1. Connect the GSM antenna you found in the package to the SMA connector.
2. Insert the SIM Card into the SIM holder. Be sure the SIM is inserted in the correct way being careful of the SIM corner, so that
the golden contacts are downwards.
3. Connect the Analog Fax to one of the TEL1 / TEL2 connectors present on the back side. The 2 connectors are connected
together so there is no difference between the two ports.
4. Connect the power supply and turn 2G GSM Gateway Fax on using the switch.
5. The Activity led is ON; when the Activity led will be OFF then, 2G GSM Gateway is ready.
If the PIN protection of the SIM card is disabled the leds are:
Activity: OFF (ON in 2G GSM Gateway Fax Battery model)
GSM: OFF or Blinking or ON (GSM Signal Level)
Status: Blinking
Check the good GSM signal level to send and receive fax.
If after a few seconds, the leds situation is the following:
Activity: OFF (ON in 2G GSM Gateway Fax Battery model)
GSM: OFF
Status: ON
you can insert the PIN code using an analog phone connected to 2G GSM Gateway Fax.

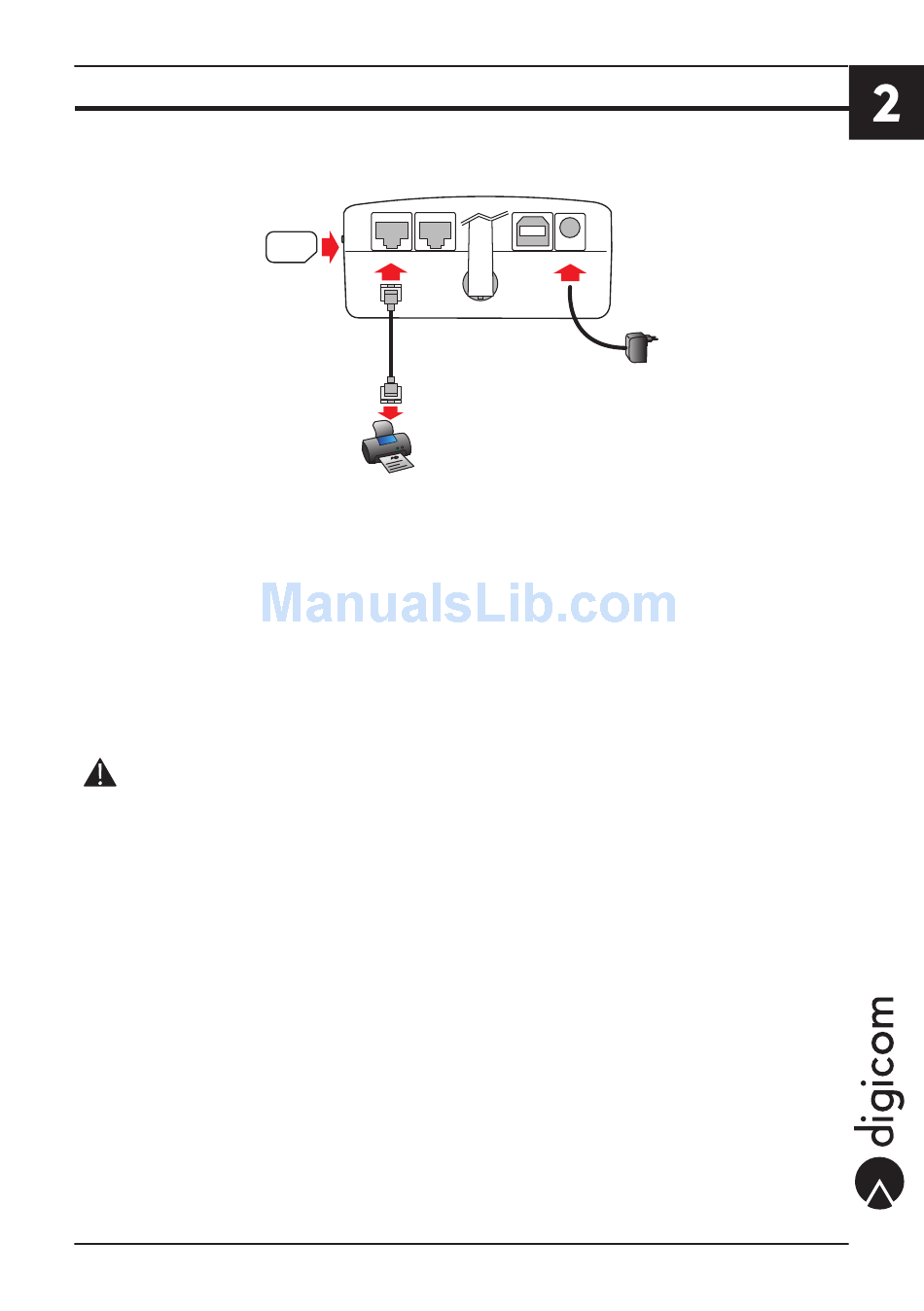

TEL1 TEL2
SIM
RJ11
Fax
USB PWR
ANTENNA
Power supply
Installation
ENG2.1
