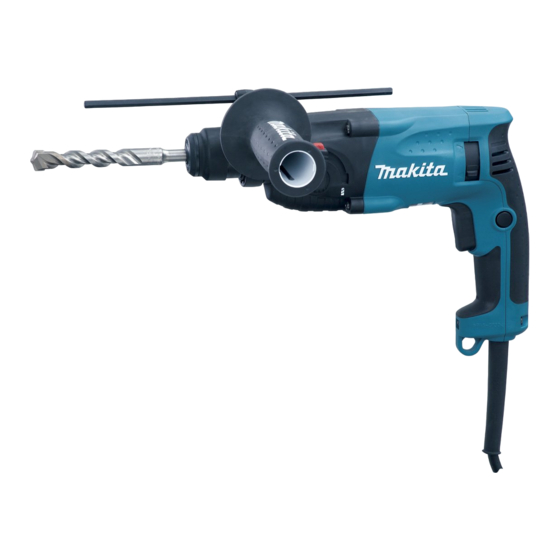

- Page 1 Rotary Hammer MODEL HR1830 MODEL HR1830F 007227 DOUBLE INSULATION I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Specifications
The tool is intended for hammer drilling and drilling in brick, concrete and stone. Responsible manufacturer: It is also suitable for drilling without impact in wood, Makita Corporation Anjo Aichi Japan metal, ceramic and plastic. Power supply The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. -
Page 3: General Safety Rules
GENERAL SAFETY RULES GEA001-3 WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 4: Specific Safety Rules
20. Maintain power tools. Check for misalignment ditions and the work to be performed. Use of the or binding of moving parts, breakage of parts power tool for operations different from those and any other condition that may affect the intended could result in a hazardous situation. -
Page 5: Functional Description
FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Switch action 007228 CAUTION: • Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the “OFF”... - Page 6 Selecting the action mode 007231 This tool employs an action mode changing knob. Select one of the two modes suitable for your work needs by using this knob. For rotation only, depress the lock button and turn the knob so that the arrow on the knob points toward the symbol on the tool body.
- Page 7 Installing or removing the bit 001296 Clean the bit shank and apply bit grease before installing the bit. 1. Bit shank 2. Bit grease Insert the bit into the tool. Turn the bit and push it in until it engages. 007233 After installing, always make sure that the bit is securely held in place by trying to pull it out.
-
Page 8: Operation
Dust cup 001300 Use the dust cup to prevent dust from falling over the tool and on yourself when performing overhead drilling operations. Attach the dust cup to the bit as shown in the figure. The size of bits which the dust cup can be attached to is as follows. -
Page 9: Maintenance
Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspec- tion and replacement, any other maintenance or adjustment should be per- formed by Makita Authorized Service Centers, always using Makita replacement parts. - Page 10 CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
