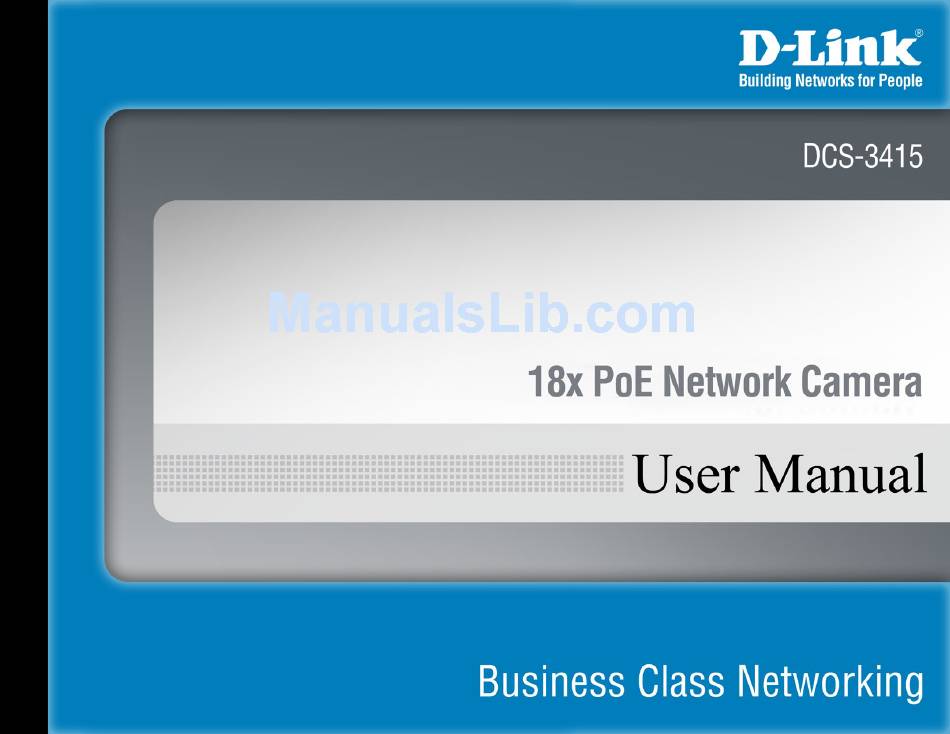

D-Link DCS-3415 User Manual

D-Link DCS-3415 User Manual

18x poe network camera
Hide thumbs Also See for DCS-3415:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link DCS-3415

Summary of Contents for D-Link DCS-3415

  • Page 2: Table Of Contents

    Setup ................31 Logs ................70 Wizard ............... 31 Help ................. 71 Internet Connection Setup Wizard ......31 D-ViewCam Installation .......... 72 Motion Detection Setup Wizard ......36 Add a Camera ..............75 Network Setup ............39 D-Link DCS-3415 User Manual...
  • Page 3 Frequently Asked Questions ........80 Networking Basics ..........83 Check your IP address ............. 83 Statically Assign an IP address ........84 Reset and Restore ............85 External I/O Port .............. 86 Technical Specifications ......... 87 D-Link DCS-3415 User Manual...

  • Page 4: Product Overview

    Section 1 - Product Overview Product Overview Package Contents • D-Link DCS-3415 18x PoE Network Camera • CAT5 Ethernet Cable • Power Adapter • Screws • Manual and Software on CD • Quick Install Guide Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product.

  • Page 5: Introduction

    Nothing herein represents a warranty or representation that the D-Link product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. D-Link disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with applicable state, local, or federal laws.

  • Page 6: Features

    CCD module can capture superb vivid images of moving objects that traditional interlaced scanning techniques cannot achieve. DCS-3415 is ideally suited for both day and night applications. It effectively reduces motion blur and distorted, jagged edges of recorded images. With a removable IR-cut filter, the Network Camera always provides high-quality color images throughout the day.
  • Page 7 Nothing herein represents a warranty or representation that the D-Link product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. D-Link disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with applicable state, local, or federal laws.

  • Page 8: Hardware Overview

    The Ethernet port can also be used to power DI/DO: the camera by using a PoE switch. The DCS-3415 provides a general I/O terminal block. The I/O connectors provide the physical interface to send and receive digital signals to and from a variety of external devices.

  • Page 9: Leds

    If the Ethernet connection is electronic devices. The CF card slot not established the Status can be seen at the side of the network LED will not glow. camera. Note: Ensure to remove the rubber strip before using it. D-Link DCS-3415 User Manual...

  • Page 10: Hardware Installation

    Connect Using Power-Over-Ethernet Once you connect an Ethernet cable to your PoE switch or adapter, the Power LED on the DCS-3415 will turn green to indicate a proper connection. Attach the External Power Supply Attach the external power supply to the DC power input connector located on the Network Camera’s...
  • Page 11 Attach the camera stand to the Network Camera and station it for your application. There are holes located in the base of the camera stand allowing the camera to be mounted to the ceiling, or any wall securely. D-Link DCS-3415 User Manual...

  • Page 12: Software Installation

    Software Installation Turn on the computer and insert the D-Link DCS-3415 Autorun CD into the CD-ROM drive. The following step-by-step instructions displayed are shown when using Windows Vista operating system. The steps and screens are similar when using other Windows operating systems.
  • Page 13 Click I Agree to accept the License Agreement. Click I Agree Click the Browse button if you would like to change the destination of installation, otherwise click Install to continue. Note: Installation may take several minutes to complete. Click Install D-Link DCS-3415 User Manual...

  • Page 14: Configuration

    Section 3- Software Installation To start the installation click Install. Note: The installation may take several minutes to complete. Click Finish to complete installation and the D-Link Installation Wizard win- dow will pop up for camera configuration. Click Finish D-Link DCS-3415 User Manual...

  • Page 15: Setup Wizard Configuration

    Windows Start Menu. The Installation Wizard will appear and show the MAC address and IP address of the DCS-3415, which may appear to be different from the actual address depending on what your device is connected to. If you have a DHCP server on your network, there will be a valid IP address displayed here.
  • Page 16 Enter a password, and confirm the password for the admin ID and click Next. Note: The default administrator username is set to admin and the password may be left blank. The password can be changed after installation. Click Next D-Link DCS-3415 User Manual...

  • Page 17: Pppoe Setup

    The PPPoE Setting screen displays. Enter the username and password provided by your ISP to connect to the Internet by PPPoE. Click Next and skip to the setup screen as seen in page 19. Click Next D-Link DCS-3415 User Manual...
  • Page 18 Click Next to continue. Click Next Select UPnP Port Forwarding if your router supports this function. If not, choose Manual to manually enter your port numbers. Click Next to continue. Click Next D-Link DCS-3415 User Manual...
  • Page 19 Section 4 - Configuration Click Next to continue. Click Next A window will pop up asking you if you want to access the DCS-3415 via mobile phone. Clicking Yes will set the video resolution to 176x144. D-Link DCS-3415 User Manual...
  • Page 20 A window will pop up to confirm application was successful. Click OK to continue. A new window will pop up displaying the lists to access your device, click Add to my favorite to save the address then click Exit to complete installation. Click Exit D-Link DCS-3415 User Manual...
  • Page 21 Section 4 - Configuration Double-click DCS-3415 in the Installation Wizard window to launch the camera’s web configuration. Note: Please see the user manual for more information. Enter admin as the default username and leave the password blank. Click OK to continue.
  • Page 22 Section 4 - Configuration This section shows your camera’s live video. You can control your settings using the buttons below. For more information on using the web configuration, please refer to the user manual. D-Link DCS-3415 User Manual...

  • Page 23: Web-Based Configuration Utility

    Section 4 - Configuration Web-based Configuration Utility This section will show you how to configure your new D-Link Network Camera using the Web-based Configuration Utility. To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address of your Network Camera (http://19.168.0.10)
  • Page 24 Section 4 - Configuration As seen in the following images, Mozilla Firefox and Netscape users, the Quick Time player is invoked to stream the live video. D-Link DCS-3415 User Manual...

  • Page 25: Using Rtsp Players

    3. Type the URL command in the text box. The format is rtsp://<ip address>:<rtsp port>/<access name for stream1 or stream> For example: 4. You can view the live video in your player, as shown in the figure. D-Link DCS-3415 User Manual...

  • Page 26: Using 3Gpp Mobile Phones

    3. Set the RTSP port to 554, since most ISP and players do not support other port numbers. 4. Launch the players on 3GPP mobile phones, (ex. Real Player). Type the URL commands in the player. The format is rtsp://<public ip address of your camera>:<rtsp port>/<access name for stream1 or stream>. D-Link DCS-3415 User Manual...

  • Page 27: Live Video

    Click + to enlarge objects. Click - to reduce the size of the object. Focus : Click + for a close-up of an object. Click - to shoot faraway objects. Zoom speed / Adjust zoom and focus speed. Focus speed : D-Link DCS-3415 User Manual...
  • Page 28 Mute : To mute the volume of your computer. Mic Volume : When the mute function is not activated, move the slider bar to adjust the microphone volume of your computer. Mute : To mute the microphone volume at local computer. D-Link DCS-3415 User Manual...

  • Page 29: Snapshot

    Section 4 - Configuration Snapshot This page shows a snapshot image of a live video taken from DCS-3415 network camera. D-Link DCS-3415 User Manual...

  • Page 30: Client Setup

    (as shown on page 3). Only the HTTP port must be forwarded for remote users to make an HTTP connection (video only). Record Options: Allows the user to specify a destination folder and prefix filename for the recorded video. D-Link DCS-3415 User Manual...

  • Page 31: Setup

    Manual Motion Detection Setup and skip to page 41. Internet Connection Setup Wizard This wizard will guide you through a step-by-step process to configure your new D-Link Camera and connect the camera to the internet. Click Next to continue. Click Next...
  • Page 32 Select PPPoE if the camera is directly connected to the Internet through a DSL modem, and the ISP (Internet Service Provider) requires you to use PPPoE for the Internet connection. Click Next to continue and skip to Step  on page 33. Click Next D-Link DCS-3415 User Manual...
  • Page 33 Click Next to continue. Click Next If you have selected PPPoE, enter your username and password. Click Next to continue. Click Next D-Link DCS-3415 User Manual...
  • Page 34 Enter a name for your camera and click Next to continue. Click Next Configure the correct time to ensure that all events will be triggered, captured and scheduled at the right time. Click Next to continue. Click Next D-Link DCS-3415 User Manual...
  • Page 35 If you selected Static IP, you will see a summary of your camera’s settings. Please note down all this information as you will need it for accessing your camera within the network. Click Apply to save your settings. Click Apply D-Link DCS-3415 User Manual...

  • Page 36: Motion Detection Setup Wizard

    Section 4 - Configuration Motion Detection Setup Wizard This wizard will guide you through a step-by-step process to configure your new D-Link Camera motion detection functions. Click Next to continue. Click Next This section will allow you to enable or disable motion detection as well as control the sensitivity or your camera’s ability to...
  • Page 37 This step allows you to specify how you will receive the events notification of your camera, either via using email or FTP. You will need to enter all the relevant information for your email account or FTP settings. Then, click Next to continue. Click Next D-Link DCS-3415 User Manual...
  • Page 38 Section 4 - Configuration You have completed the Motion Detection Wizard. Click Apply to save your settings. Click Apply D-Link DCS-3415 User Manual...

  • Page 39: Network Setup

    Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without bothersome network configuration. In the case of Network Cameras, you will see Network Camera shortcuts at My Network Places. D-Link DCS-3415 User Manual...
  • Page 40 Basic authentication: When selected, the password is sent in plain text format; there can be potential risks of being intercepted. Digest authentication: When selected, user credentials are encrypted in MD5 algorithm and thus provide better protection against unauthorized accesses. HTTP Port: The default value is 80. D-Link DCS-3415 User Manual...
  • Page 41 After you have enabled the Authentication, you will need to configure and use the access name to access your video file. RTSP:// camera ip/live.sdp (live.sdp is the default access name, you can modify it here) The default name is live.sdp. Access name for stream1: The default name is live.sdp. Access name for stream2: D-Link DCS-3415 User Manual...
  • Page 42 : Launch a RTSP player. : Choose File > Open URL. This opens the URL dialog box. : Type the URL command in the text box. For example: The live video will be displayed in your player. D-Link DCS-3415 User Manual...
  • Page 43 For example, if some content is associated with group 39.1.1.1, the source will send data packets destined to 39.1.1.1. Receivers for that content will inform the network that they are interested in receiving data packets sent to the group 39.1.1.1. The receiver “joins” 39.1.1.1. The Multicast address ranges from 4.0.0.0 to 39.55.55.55, or, equivalently, 4.0.0.0/4 D-Link DCS-3415 User Manual...
  • Page 44 The five ports can be changed between 105 and 65535. The multicast RTP port must be an even number and the multicast RTCP port is multicast RTP port number plus one, and thus always be odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly. D-Link DCS-3415 User Manual...

  • Page 45: Dynamic Dns

    Enter the host name of the DDNS server. Username: Enter your username or e-mail used to connect to the DDNS Password: Enter your password used to connect to the DDNS server. Status: Indicate the connection status, automatically determined by the system. D-Link DCS-3415 User Manual...

  • Page 46: Image Setup

    Choose either Auto or Fix white balance. Brightness: It has eleven levels ranged from -5 to +5 for you to choose. Overlay title and Select to add a date and time stamp directly on the time stamp on video. video: D-Link DCS-3415 User Manual...

  • Page 47: Audio And Video

    Note: “dB” stands for decibels, a logarithmic unit of measurement in acoustics . The higher the decibel number, the louder the sound. External microphone input: Select and set an external microphone input gain from the list. D-Link DCS-3415 User Manual...
  • Page 48 Select an AAC bit rate from the list. Higher bit rate means higher audio quality but it takes more network bandwidth to transmit. GSM-AMR bit Select the GSM-AMR bit rate from the list. Higher bit rate means higher audio quality but it takes more network bandwidth to transmit. rate: D-Link DCS-3415 User Manual...

  • Page 49: Motion Detection

    Clicking on the ‘x’ at the upper right corner of the window will close the window. Save: Save the related settings of that window. D-Link DCS-3415 User Manual...
  • Page 50 (Email, FTP) by utilizing this feature as a trigger source. A green bar indicates that even though motions are detected, the event will not be triggered because the image variations are still falling under the defined threshold. Percentage = 30% D-Link DCS-3415 User Manual...
  • Page 51 When the percentage is set to 30%, the motions are judged to exceed the defined threshold; therefore, the motion window will be outlined in red. For applications that require higher security management, it is suggested to set higher sensitivity settings and smaller percentage values. D-Link DCS-3415 User Manual...

  • Page 52: Time And Date

    The time interval for updating the time information from NTP server. Set the date and time manually: This option allows you to set the time and date manually. Copy Your Computer’s Time This will synchronize the time information from your PC. Settings: D-Link DCS-3415 User Manual...

  • Page 53: Event Setup

    . To delete the selected item from the pull-down menu of event, server or media click Delete. 3. Click on the item name to pop up a window for modifying. Note: You can add up to three events, five servers and five media fields. D-Link DCS-3415 User Manual...

  • Page 54: Application

    Application A typical application is that when a motion is detected, the DCS-3415 Network Camera sends buffered images to a FTP server or via e-mail as notifications. For example, as seen in the illustration below, an event can be triggered by many sources, such as motion detection or external digital input devices.

  • Page 55: Add Server

    FTP: Select this to access a granted folder on the external FTP server. HTTP: Select this to use a web server to store the media. Network Storage: Only one network storage is supported. D-Link DCS-3415 User Manual...

  • Page 56: Add Media

    The maximal file size would be generated. File name prefix: The prefix name will be added on the file name of the video clip. Refer page 58 for more information. System log: Select this feature to enable camera to display system log. D-Link DCS-3415 User Manual...
  • Page 57 Add date and time suffix to file name Select this option to add date and time to the file name suffix. SNAPSHOTS20080104_100341 Date and time suffix File name prefix The format is: YYYYMMDD_HHMMSS D-Link DCS-3415 User Manual...
  • Page 58 8 sec. 9 sec. 10 sec. The moment the trigger is activated. File name prefix Enter the text that will be added at the beginning of the file name. VIDEOS20080104_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS D-Link DCS-3415 User Manual...

  • Page 59: Add Event

    Note: Please format CF card before use. The entire data in the CF card will be erased after formatting. Note: Before you unplug the CF card from the slot, please select “Remove CF card” to ensure that your data is secure. D-Link DCS-3415 User Manual...

  • Page 60: Add Recording

    Size of each file for File size for each recording file. You may input the value in the range of 00-6000. recording: File Name Prefix: The prefix name will be added on the file name of the recording file(s). D-Link DCS-3415 User Manual...

  • Page 61: Advanced

    (Max. Input 500mA, 1Vdc) Digital output: Select Grounded or Open to define normal status of the digital output. The camera will show whether the trigger is activated or not. D-Link DCS-3415 User Manual...

  • Page 62: Rs485

    With digital PTZ (Pan/Tilt/Zoom) feature enabled, it is possible to zoom in and out video recieved from the DCS-3415. Enable PTZ Operation To utilize this feature, please connect DCS-3415 to a PTZ scanner via RS485 interface and follow the instructions given below. The DCS-3415 offers three PTZ drivers: DynaDome/SmartDOME...

  • Page 63: Icr

    Section 4 - Configuration The follwoing options explain about the shutter speed, iris and gain settings for the DCS-3415 Network Camera. Exposure Auto When set to Auto the Network Camera automatically adjusts the iris and gain, however has fixed shutter speed (1/30 s) in response to different kinds of environment.
  • Page 64 Ensure to enter the starting and ending time for the day mode. Note that the time format is [hh:mm] and is expressed in 4-hour clock time. By default, the starting time and ending time of day mode are set to 07:00 and 18:00. D-Link DCS-3415 User Manual...

  • Page 65: Access List

    When the range of allowed list is set from 1.1.1.0 to 19.55.55.55 and the range of denied list is set from 1.1.1.0 to 170.55.55.55, Only users’ IP located between 171.0.0.0 Denied Alowed and 19.5.5.5 can access the Network Camera. List List D-Link DCS-3415 User Manual...

  • Page 66: Maintenance

    Managing the accounts for the existing users. Authentication: The access right for the existing users. Camera Name: Create a unique name for your camera and you can access the camera using this name in your web-browser. For example: http://DCS-3415 (By default). D-Link DCS-3415 User Manual...

  • Page 67: Backup And Restore

    Note: Please Format CF card before use. The entire data in the CF card will be erased after formatting. Note: Before you unplug the CF card from the slot, please select “Remove CF card” to ensure that your data is secure. D-Link DCS-3415 User Manual...

  • Page 68: Firmware Update

    Section 4 - Configuration Firmware Update Your current firmware version and date will be displayed on your screen. You may go to the D-Link Support page to check for the latest firmware version available. To upgrade the firmware on your DCS-3415, please download and save the latest firmware version from the D-Link Support page to your local hard drive.

  • Page 69: Status

    Section 4 - Configuration Status Device Info This page displays all the details information about your device and network connection. D-Link DCS-3415 User Manual...

  • Page 70: Logs

    514. Save: Save the setting. Current Log: The system log file that displayed by the system. The content of the file reveals useful information about camera configuration and connectivity status after the camera boots up. D-Link DCS-3415 User Manual...

  • Page 71: Help

    Section 4 - Configuration Help D-Link DCS-3415 User Manual...

  • Page 72: D-Viewcam Installation

    D-ViewCam Installation D-ViewCam software is included for the administrator to manage up to 3 D-Link network cameras remotely. The administrator can use the software to configure the advances settings for the camera. D-ViewCam is a complete management tool and includes all configura- tive settings.
  • Page 73 Section 4 - D-ViewCam Installation Click Next to continue. Click Next Click Browse if you would like to choose a specific folder for the installation, otherwise click Next to continue. Click Next D-Link DCS-3415 User Manual...
  • Page 74 Section 4 - D-ViewCam Installation Click Next to start the installation. Note: The D-ViewCam installation process may take several minutes to complete. Click Next Click Finish to complete the installation. Click Finish D-Link DCS-3415 User Manual...

  • Page 75: Add A Camera

    Add a Camera This section will show you how to start and add a camera to the D-ViewCam system. To start D-ViewCam, select Start > All Programs > D-Link > D-Link D-ViewCam. Enter admin as the default username and leave the password blank. Click / OK to log into the system and access the Add Camera Wizard.
  • Page 76 Section 4 - D-ViewCam Installation Welcome to the Add Camera Wizard. Use this wizard to add your cameras to the D-ViewCam system. Note: Use the left or right arrow to navigate the wizard. Click / Next to continue. Click Next D-Link DCS-3415 User Manual...
  • Page 77 LAN with same subnet. The system will place all the cameras at the default map called My Map. Click Next to continue. If you choose Add Manually, you will need to enter the IP address of the camera(s). Click Next to continue. D-Link DCS-3415 User Manual...
  • Page 78 • Non-Office Hours Only: Continuously monitors during non-office hours (6:00PM to 8:00AM), and only records when motion is detected. Note: Excluding 24/7 Continuous Recording, all other schedule recording modes can only record when motion is detected. Please refer to the user manual for more information.on. Click Next to continue. D-Link DCS-3415 User Manual...
  • Page 79 Click Next to continue. The Add Camera wizard is now complete. Click Close to access the D-ViewCam’s main screen. Your D-ViewCam Installation is Complete! Note: Please refer to the D-ViewCam user manual for information about using D-ViewCam. D-Link DCS-3415 User Manual...

  • Page 80: Frequently Asked Questions

    Section 5 - Frequently Asked Questions Frequently Asked Questions This chapter provides solutions to problems that may occur during the installation and operation of the DCS-3415. Read the following descriptions if you are having any problems. Note: The examples below are illustrated in Windows XP. If you have a different operating system, the screenshots on your computer will look similar to the following examples.
  • Page 81 To correct the problem, you need to determine if the DCS-3415 is behind a router or firewall and if the router or firewall is properly configured for the ports the DCS-3415 is using. Refer to Page 40 for help in opening the correct ports on a router or firewall for use with the DCS-3415.
  • Page 82 • The configuration on the 18x PoE Network Camera image display is incorrect. Through the Setup>Image Setup section of the Web management you need to adjust the image related parameters such as brightness, white balance and power line frequency for fluorescent light. D-Link DCS-3415 User Manual...

  • Page 83: Networking Basics

    Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

  • Page 84: Statically Assign An Ip Address

    000 - From the desktop, right-click My Network Places > Properties. ® Step 2 Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties. Step 3 Highlight Internet Protocol (TCP/IP) and click Properties. Step 4 Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your access point.

  • Page 85: Reset And Restore

    There is a button hidden in the pinhole beside the Ethernet socket. It is used to reset the system or restore the factory default settings. Sometimes resetting the DCS-3415 will return the system back to a normal state. If the system still has problems after reset, restore...

  • Page 86: External I/O Port

    Refer to the following illustration for connection method. PIN 1 Power+12V The DCS-3415 provides a general I/O terminal block with one digital input and one PIN 2 Digital output relay switch for device control. The relay switch of DO+ and DO- can be used to turn on or off the external device.

  • Page 87: Technical Specifications

    + Take snapshots/video clips and save to CF card, local hard drive or NAS via web + SONY 1/4 inch progressive scan CCD sensor browser + Focal length: f=4.1mm to 73.8mm + F-number: F1.4 (wide), F3.0 (tele) D-Link DCS-3415 User Manual...
  • Page 88 PacketVideo 2 color LED POWER INPUT 100-240Vac, 50/60Hz, 12V, 1.25Vdc POWER CONSUMPTION 0º to 40º C (32º to 104º F) DIMENSIONS Version 1.0 80 (W) X 143.5 (D) X 92.4 (H) (mm) May 20, 2008 D-Link DCS-3415 User Manual...
