Summary of Contents for Makita DDG461PT2

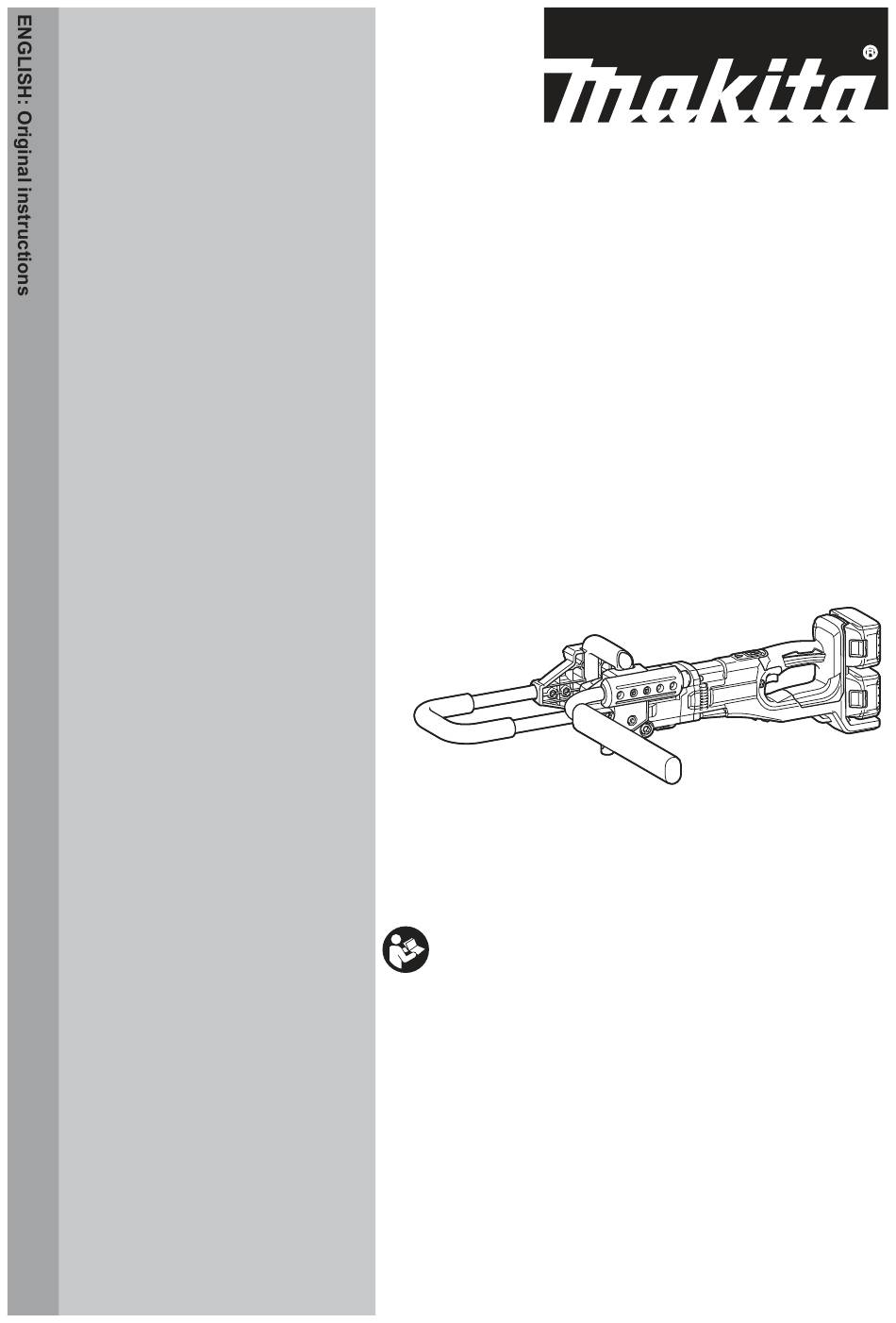

- Page 1 INSTRUCTION MANUAL Cordless Earth Auger DDG461 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DDG461 No load speed High 0 - 1,400 min 0 - 350 min Drilling capacities High For sandy soil: ø60 mm (Diameter) For clay soil: ø60 mm For sandy soil: ø200 mm For clay soil: ø150 mm Overall length 840 mm Rated voltage D.C. -
Page 3: Declarations Of Conformity
Work area safety WARNING: Wear ear protection. Keep work area clean and well lit. Cluttered or dark areas invite accidents. WARNING: The noise emission during actual use of the power tool can differ from the declared Do not operate power tools in explosive atmo- spheres, such as in the presence of flammable value(s) depending on the ways in which the tool is used especially what kind of workpiece is... - Page 4 Do not overreach. Keep proper footing and Keep cutting tools sharp and clean. Properly balance at all times. This enables better control maintained cutting tools with sharp cutting edges of the power tool in unexpected situations. are less likely to bind and are easier to control. Dress properly.
- Page 5 15. If something wrong with the tool such as For preparation of the item being shipped, consult- abnormal sounds, stop operating immediately ing an expert for hazardous material is required. and ask your local Makita Service Center for Please also observe possibly more detailed repair. national regulations.
-
Page 6: Initial Setting
Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will Fig.1 also void the Makita warranty for the Makita tool and charger. Main tool Front handle Tips for maintaining maximum... - Page 7 Installing the reaction receiver Setting up tool Place the reaction receiver so that the bar of the reac- tion receiver comes to the left side of the operator. CAUTION: Always be sure that the front Adjust the position of the reaction receiver so that the handle, side handle and reaction receiver are axis of the spindle is in the center of the operator's body.
-
Page 8: Functional Description
Let the tool and battery(ies) cool down. Lighted Blinking If no improvement can be found by restoring protection system, then contact your local Makita Service Center. 75% to 100% Main power switch 50% to 75% WARNING: When the tool is not in use, turn the... - Page 9 NOTE: This tool employs the auto power-off function. NOTE: When the tool is overheated, the tool stops automatically and the lamp starts flashing. In this To avoid unintentional start up, the main power switch case, release the switch trigger. The lamp turns off in will automatically shut down when the switch trigger is not pulled for about 5 minutes after the main power 5 minute(s).
- Page 10 If you operate Makita service center. the tool with the speed change knob positioned half- way between the position 1 and the position 2, the Soft start feature tool may be damaged.
-
Page 11: Installing Or Removing Battery Cartridge
Mounting auger bit ASSEMBLY CAUTION: Always be sure that the tool is Installing or removing battery switched off and the battery cartridge is removed cartridge before carrying out any work on the tool. CAUTION: When attaching the auger bit to the Always switch off the tool before spindle, make sure that the auger pin is locked CAUTION:... -
Page 12: Digging Operation
Digging operation OPERATION Hold the tool firmly when operat- CAUTION: CAUTION: This is a powerful tool which gen- ing the tool. erates high torque. It is important that the tool is CAUTION: Keep your face and hands away securely held and properly braced. from drilling attachments, such as an auger bit, CAUTION: Before operating, check that there... -
Page 13: Maintenance
Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. - Page 16 Jan-Baptist Vinkstraat 2, Makita Europe N.V. 3070 Kortenberg, Belgium 3-11-8, Sumiyoshi-cho, Makita Corporation Anjo, Aichi 446-8502 Japan 885A36-220 www.makita.com 20230120...
