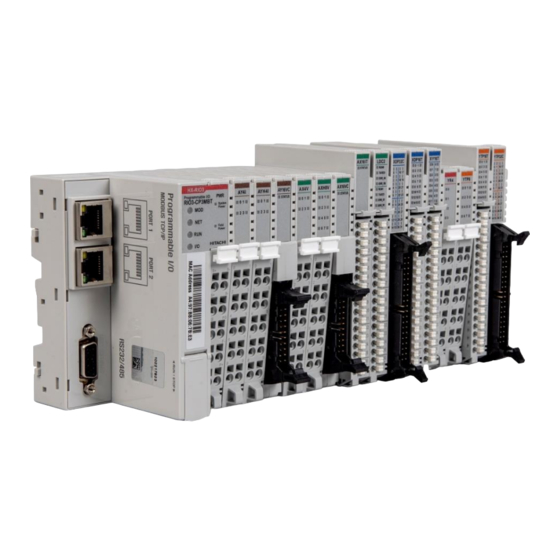

Hitachi HX-RIO3 Series User Manual
Analog input module
Hide thumbs
Also See for HX-RIO3 Series:
- Manual (68 pages) ,
- User manual (63 pages) ,
- User manual (19 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Hitachi HX-RIO3 Series
Summary of Contents for Hitachi HX-RIO3 Series
- Page 1 HX-RIO3 Series Analog Input Module (RTD, TC) RIO3-RTD / RIO3-TC User Manual...
- Page 2 HX-RIO3 Series REVISION HISTORY PAGE REMARKS DATE EDITOR 1.01 New Document 05 NOV 2020 (OPR), (PF)
-
Page 3: Table Of Contents
HX-RIO3 Series Table of Contents Important Notes ............................4 Safety Instruction ..........................5 1.1.1 Symbols ............................. 5 1.1.2 Safety Notes ..........................5 1.1.3 Certification ..........................5 Analog Input Module List ........................... 6 Specification .............................. 7 RIO3-RTD4T ............................7 3.1.1 Wiring Diagram .......................... 7 3.1.2... -
Page 4: Important Notes
In no event will HITACHI be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. -
Page 5: Safety Instruction
HX-RIO3 Series 1.1 Safety Instruction 1.1.1 Symbols Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death property damage, or economic loss Identifies information that is critical for successful application and understanding of the product. -
Page 6: Analog Input Module List
HX-RIO3 Series 2 Analog Input Module List RIO3-Number Description ID (hex) RIO3-RTD4T Analog Input 4 Channels, RTD / Resistance Input, 10 RTB 3704 RIO3-RTD8C Analog Input 8 Channels, RTD / Resistance Input, 20P Connector 3708 RIO3-TC4T Analog Input 4 Channels, Thermocouple / mV Input, 10 RTB... -
Page 7: Specification
HX-RIO3 Series 3 Specification 3.1 RIO3-RTD4T 3.1.1 Wiring Diagram Pin No. Signal Description Signal Description Pin No. RTD Channel 0+ RTD Channel 0- RTD Channel 1+ RTD Channel 1- RTD Channel 2+ RTD Channel 2- RTD Channel 3+ RTD Channel 3-... -
Page 8: Led Indicator
HX-RIO3 Series 3.1.2 LED Indicator LED No. LED Function / Description LED Color Input Channel 0 Green Input Channel 1 Green Input Channel 2 Green Input Channel 3 Green 3.1.3 Channel Status LED Status To indicate No Signal Input Sensor Open or Input Range Over... -
Page 9: Environment Specification
HX-RIO3 Series 3.1.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 70℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Operating Altitude 2,000m Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27: 2008/ 15g, 11bs... -
Page 10: Specification
HX-RIO3 Series 3.1.5 Specification Items Input Specification Inputs Per Module 4 Channels Indicators 4 Green Input Status LEDs RTD Input Range RTD Input Input Range PT100, PT200, PT500, PT50 -200~850℃ PT1000 -200~350℃ JPT100, JPT200, JPT500, JPT50 -200~640℃ JPT1000 -200~350℃ NI100, NI200, NI500 -60~250℃... -
Page 11: Mapping Data Into The Image Table
HX-RIO3 Series UL Filed Power Supply voltage: 24Vdc nominal, Class 2 Field Power Not used, Field Power passes through to the next module Wiring I/O Cable Max. 2.0mm (AWG 14) Torque 0.8Nm (7lb-in) Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification'... -
Page 12: Configuration Parameter - 10 Bytes
HX-RIO3 Series 3.1.7 Configuration Parameter – 10 Bytes Decimal Byte Description Default Value The selection Sensor Type =00h: PT100, 0.00385, -200~850°C, 0.1°C/count =01h: PT200, 0.00385, -200~850°C, 0.1°C/count =02h: PT500, 0.00385, -200~850°C, 0.1°C/count =03h: PT1000, 0.00385, -200~350°C, 0.1°C/count =04h: PT50, 0.00385, -200~850°C, 0.1°C/count... -
Page 13: Data Value
HX-RIO3 Series 3.1.8 Data Value Resistance Temperature Detector Input Range Type Input Range -200 ~ 850 ℃ PT100 -200 ~ 850 ℃ PT200 -200 ~ 850 ℃ PT500 -200 ~ 350 ℃ PT1000 -200 ~ 850 ℃ PT50 -200 ~ 640 ℃... -
Page 14: Rio3-Rtd8C
HX-RIO3 Series 3.2 RIO3-RTD8C 3.2.1 Wiring Diagram Pin No. Signal Description Signal Description Pin No. RTD Channel 0+ RTD Channel 0- RTD Channel 1+ RTD Channel 1- RTD Channel 2+ RTD Channel 2- RTD Channel 3+ RTD Channel 3- AGND... -
Page 15: Led Indicator
HX-RIO3 Series 3.2.2 LED Indicator LED No. LED Function / Description LED Color Input Channel 0 Green Input Channel 1 Green Input Channel 2 Green Input Channel 3 Green Input Channel 4 Green Input Channel 5 Green Input Channel 6... -
Page 16: Environment Specification
HX-RIO3 Series 3.2.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 70℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Operating Altitude 2,000m Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27: 2008/ 15g, 11bs... -
Page 17: Specification
HX-RIO3 Series 3.2.5 Specification Items Input Specification Inputs Per Module 8 Channels Indicators 8 Green Input Status LEDs RTD Input Range RTD Input Input Range PT100, PT200, PT500, PT50 -200 ~ 850℃ PT1000 -200 ~ 350℃ JPT100, JPT200, JPT500, JPT50 -200 ~ 640℃... -
Page 18: Mapping Data Into The Image Table
HX-RIO3 Series UL Field Power Supply voltage: 24Vdc nominal, Class 2 Field Power Not used, Field Power passes through to the next module Wiring Connector Type, up to AWG22 Module Connector: HIF3BA-20D-2.54DSA Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification'... -
Page 19: Configuration Parameter - 18 Bytes
HX-RIO3 Series 3.2.7 Configuration Parameter – 18 Bytes Decimal Byte Description Default Value The selection Sensor Type =00h: PT100, 0.00385, -200~850°C, 0.1°C /count =01h: PT200, 0.00385, -200~850°C, 0.1°C/count =02h: PT500, 0.00385, -200~850°C, 0.1°C/count =03h: PT1000, 0.00385, -200~350°C, 0.1°C/count =04h: PT50, 0.00385,... -
Page 20: Data Value
HX-RIO3 Series 3.2.8 Data Value Resistance Temperature Detector Input Range Type Input Range -200 ~ 850 ℃ PT100 -200 ~ 850 ℃ PT200 -200 ~ 850 ℃ PT500 -200 ~ 350 ℃ PT1000 -200 ~ 850 ℃ PT50 -200 ~ 640 ℃... -
Page 21: Rio3-Tc4T
HX-RIO3 Series 3.3 RIO3-TC4T 3.3.1 Wiring Diagram Figure 1. Customer Wiring to Mounting Base Pin No. Signal Description Signal Description Pin No. TC Channel 0+ TC Channel 0- TC Channel 1+ TC Channel 1- TC Channel 2+ TC Channel 2-... -
Page 22: Led Indicator
HX-RIO3 Series 3.3.2 LED Indicator LED No. LED Function / Description LED Color Input Channel 0 Green Input Channel 1 Green Input Channel 2 Green Input Channel 3 Green Input Channel CJ Green 3.3.3 Channel Status LED Status To indicate... -
Page 23: Environment Specification
HX-RIO3 Series 3.3.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 70℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Operating Altitude 2,000m Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27: 2008/ 15g, 11bs... -
Page 24: Specification
HX-RIO3 Series 3.3.5 Specification Items Specification Input Specification Inputs Per Module 4 Channels Indicators 4 Green Input Status LEDs , 1 Green Input CJ Status LED Thermal Couple Input Range Type Maximum Input Range Recommended Input Range -270 ~ 1372℃... - Page 25 HX-RIO3 Series Cold Junction Temperature Internal TMP275AIDGKR: -40℃ ~ 125℃ External PT100: -45℃ ~ 95℃ Calibration Not Required Sensor open or range over, then conversion data = 0x8000 (-32768) Diagnostic *Connected External CJ: CJ LED On. Not Connected External CJ: CJ LED Off.
-
Page 26: Mapping Data Into The Image Table
HX-RIO3 Series 3.3.6 Mapping Data into the Image Table Input Module Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Input Image Value Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Analog Input Ch0 Low byte... -
Page 27: Configuration Parameter - 8 Bytes
HX-RIO3 Series 3.3.7 Configuration Parameter – 8 Bytes Decimal Byte Description Default Value The selection Sensor Type =00h: Type K, 0.1°C/count =01h: Type J, 0.1°C/count =02h: Type T, 0.1°C/count =03h: Type B, 0.1°C/count =04h: Type R, 0.1°C/count =05h: Type S, 0.1°C/count... -
Page 28: Data Value
HX-RIO3 Series 3.3.8 Data Value Thermocouple Input Range Type Maximum Input Range Recommended Input Range -270 ~ 1372 ℃ -200 ~ 1200 ℃ Type K -210 ~ 1200 ℃ -40 ~ 1100 ℃ Type J -270 ~ 400 ℃ -200 ~ 350 ℃... -
Page 29: Dimension
HX-RIO3 Series 4 Dimension 4.1 10-Pts. Spring Type Dimension in mm... -
Page 30: 20-Pin Connector Type
HX-RIO3 Series 4.2 20-Pin Connector Type Dimension in mm... -
Page 31: Mounting
HX-RIO3 Series 5 Mounting Caution! Hot surface! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to be cool before touching it. Notice! Perform work on devices only if they are de-energized! Working on energized devices can damage them. -
Page 32: Rtb (Removable Terminal Block)
HX-RIO3 Series 5.2 RTB (Removable Terminal Block) Whole terminal block can be combined and removed for the convenience. There is a locking switch on the RTB for the easy combination and easy removal. Easy combination and easy removal for I/O modules on the DIN rail through One Touch Locking Switch. -
Page 33: Bus Pin Description
HX-RIO3 Series 6 G-Bus Pin Description Communication between the Network Adapter and the expansion module as well as system / field power supply of the bus modules is carried out via the internal bus. It is comprised of 6 data pin and 2 field power pin. -
Page 34: Appendix
HX-RIO3 Series 7 APPENDIX 7.1 Product List RIO3-Number Description ID (hex) Digital Input Module RIO3-XDP8 8 Points, Universal, 24Vdc, 10RTB 1238 RIO3-XDP16C 16 Points, Universal, 24Vdc, 20P connector 123F RIO3-XDP16T 16 Points, Universal, 24Vdc, 18RTB 12DF RIO3-XDP32C 32 Points, Universal, 24Vdc, 40P connector... -
Page 35: Glossary
HX-RIO3 Series RIO3-AY8I 8 CHANNELS CURRENT OUTPUT, 4~20mA, 12BIT 4218 RIO3-AY4V 4CH, 0~10Vdc, 12Bits, 10RTB 4424 RIO3-AYH4V 4CH, 0~10Vdc, 16Bits, 10RTB 4464 RIO3-AY8V 8CH, 0~10Vdc, 12Bits, 10RTB 4428 RIO3-AY16VC 16CH, 0~10Vdc, 12Bits, 20P Connector 442F RIO3-AY16VT 16CH, 0~10Vdc, 12Bits, 18RTB...
