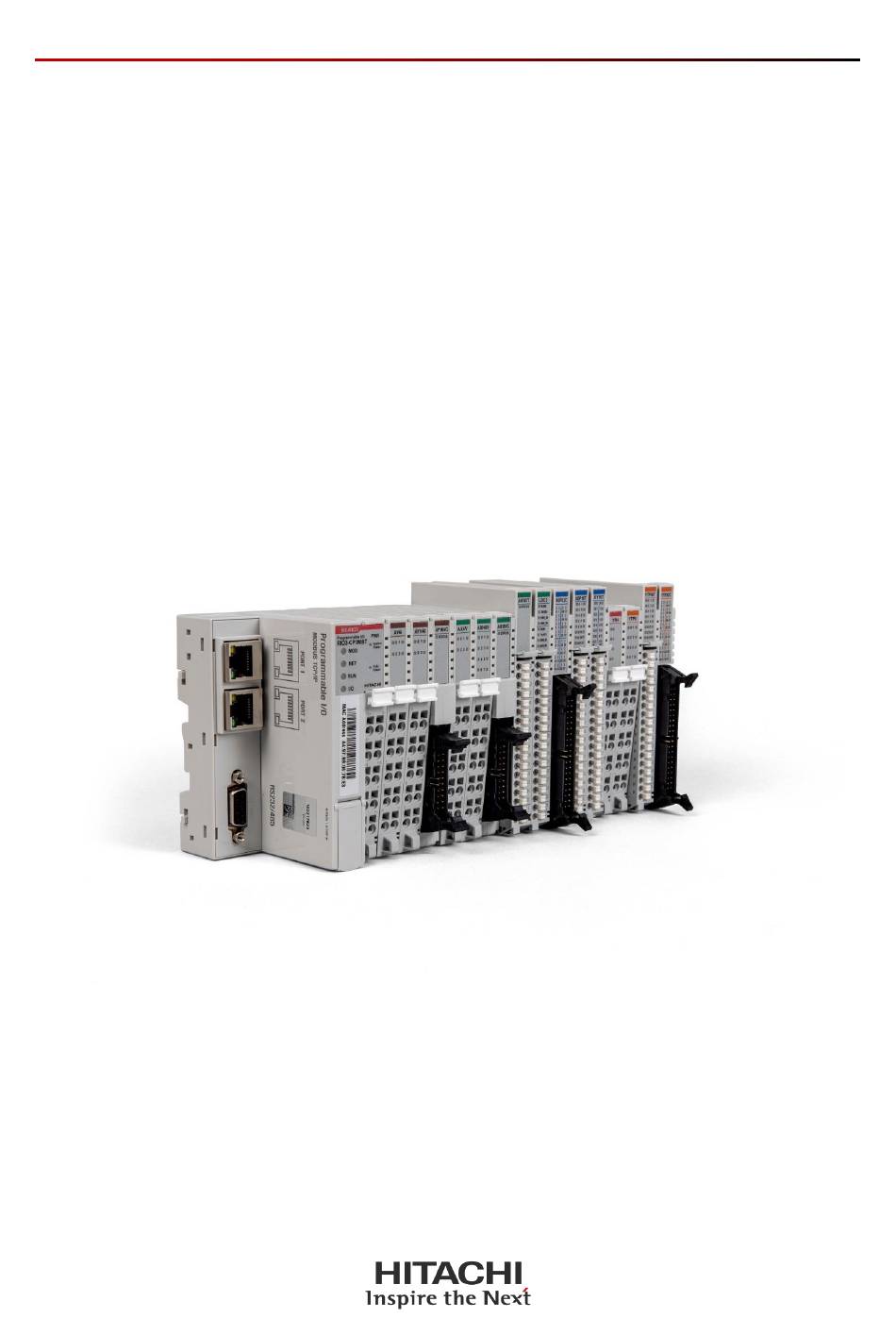

  • Page 1 HX-RIO3 Series Analog Input Module (Voltage) RIO3-AX… User Manual Version 1.02...
  • Page 2 HX-RIO3 Series REVISION HISTORY PAGE REMARKS DATE EDITOR 1.02 New Document 05 NOV 2020 (OPR), (PF)
  • Page 3 HX-RIO3 Series Table of Contents Important Notes ............................5 Safety Instruction ..........................6 1.1.1 Symbols ............................6 1.1.2 Safety Notes ..........................6 1.1.3 Certification ............................ 6 Analog Input Module List ..........................7 Specification ............................... 8 RIO3-AX4V ............................8 3.1.1 Wiring Diagram ..........................8 3.1.2...
  • Page 4 HX-RIO3 Series 3.5.5 Specification..........................41 3.5.6 Data Value / Voltage ........................42 3.5.7 Mapping Data into the Image Table..................... 44 3.5.8 Parameter Data..........................46 RIO3-AX16VT ..........................47 3.6.1 Wiring Diagram ..........................47 3.6.2 LED Indicator ..........................48 3.6.3 Channel Status LED ........................48 3.6.4...
  • Page 5 In no event will HITACHI be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
  • Page 6 HX-RIO3 Series 1.1 Safety Instruction 1.1.1 Symbols dentifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death property damage, or economic loss. Identifies information that is critical for successful application and understanding of the product.
  • Page 7 HX-RIO3 Series 2 Analog Input Module List RIO3-Number Description RIO3-AX4V Analog Input, 4 Channels, 0~10, 0~5, 1~5 Vdc, 12Bits, 10RTB 3424 RIO3-AXH4V Analog Input, 4 Channels, 0~10, 0~5, 1~5 Vdc, 16Bits, 10RTB 3464 RIO3-AX8V Analog Input, 8 Channels, 0~10, 0~5, 1~5 Vdc, 12Bits, 10RTB...
  • Page 8 HX-RIO3 Series 3 Specification 3.1 RIO3-AX4V 3.1.1 Wiring Diagram Pin No. Signal Description Signal Description Pin No. Input Channel 0 Input Channel 1 Input Channel 2 Input Channel 3 Input Channel Common (AGND) Input Channel Common (AGND) Input Channel Common (AGND)
  • Page 9 HX-RIO3 Series 3.1.2 LED Indicator LED No. LED Function / Description LED Color Input Channel 0 Green Input Channel 1 Green Input Channel 2 Green Input Channel 3 Green 3.1.3 Channel Status LED Status To indicate [LED Off < 0.5% (Maximum Input Value)] - Channel OFF...
  • Page 10 HX-RIO3 Series 3.1.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 70℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27 Based on IEC 60068-2-6...
  • Page 11 HX-RIO3 Series 3.1.5 Specification Items Specification Input Specification Inputs Per Module 4 Channels Single Ended, Non-Isolated Between Channel Indicators (Logic side) 4 Green Input Status Resolution in Ranges 12 bits: 2.44mV / Bit (0~10V), 1.22mV / Bit (0~5V) 0.977mV/Bit (1~5V)
  • Page 12 HX-RIO3 Series 3.1.6 Data Value / Voltage Voltage Range: 0 ~ 10Vdc Voltage 0.0V 2.5V 5.0V 10.0V Data (Hex) H0000 H03FF H07FF H0FFF Voltage Range: 0 ~ 5Vdc Voltage 0.0V 1.25V 2.5V 5.0V Data (Hex) H0000 H03FF H07FF H0FFF...
  • Page 13 HX-RIO3 Series Voltage Range: 1 ~ 5Vdc Voltage 1.0V 2.0V 3.0V 5.0V Data (Hex) H0000 H03FF H07FF H0FFF...
  • Page 14 HX-RIO3 Series 3.1.7 Mapping Data into the Image Table. Input Module Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Input Image Value Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Analog Input Ch0 Low byte...
  • Page 15 HX-RIO3 Series 3.2 RIO3-AXH4V 3.2.1 Wiring Diagram Pin No. Signal Description Signal Description Pin No. Input Channel 0 Input Channel 1 Input Channel 2 Input Channel 3 Input Channel Common (AGND) Input Channel Common (AGND) Input Channel Common (AGND) Input Channel Common (AGND)
  • Page 16 HX-RIO3 Series 3.2.2 LED Indicator LED No. LED Function / Description LED Color Input Channel 0 Green Input Channel 1 Green Input Channel 2 Green Input Channel 3 Green 3.2.3 Channel Status LED Status To indicate [LED Off < 0.5% (Maximum Input Value)] - Channel OFF...
  • Page 17 HX-RIO3 Series 3.2.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 70℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27 Based on IEC 60068-2-6...
  • Page 18 HX-RIO3 Series 3.2.5 Specification Items Specification Input Specification Inputs Per Module 4 Channels Single Ended, Non-Isolated Between Channel Indicators (Logic side) 4 Green Input Status Resolution in Ranges 16 bits (Include Sign) 15 bits: 0.31mV/bit (0~10V), 0.15mV/bit (0~5V), 0.12mV/bit (1~5V)
  • Page 19 HX-RIO3 Series 3.2.6 Data Value / Voltage Voltage Range: 0 ~ 10Vdc Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H1FFF H3FFF H7FFF Voltage Range: 0 ~ 5Vdc Voltage 0.0V 1.25V 2.5V 5.0V Data(Hex) H0000 H1FFF H3FFF H7FFF...
  • Page 20 HX-RIO3 Series Voltage Range: 1 ~ 5Vdc Voltage 1.0V 2.0V 3.0V 5.0V Data(Hex) H0000 H1FFF H3FFF H7FFF...
  • Page 21 HX-RIO3 Series 3.2.7 Mapping Data into the Image Table. Input Module Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Input Image Value Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Analog Input Ch0 Low byte...
  • Page 22 HX-RIO3 Series 3.3 RIO3-AX8V 3.3.1 Wiring Diagram Pin No. Signal Description Signal Description Pin No. Input Channel 0 Input Channel 1 Input Channel 2 Input Channel 3 Input Channel 4 Input Channel 5 Input Channel 6 Input Channel 7 Input Channel Common (AGND)
  • Page 23 HX-RIO3 Series 3.3.2 LED Indicator LED No. LED Function / Description LED Color Input Channel 0 Green Input Channel 1 Green Input Channel 2 Green Input Channel 3 Green Input Channel 4 Green Input Channel 5 Green Input Channel 6...
  • Page 24 HX-RIO3 Series 3.3.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 70℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27 Based on IEC 60068-2-6...
  • Page 25 HX-RIO3 Series 3.3.5 Specification Items Specification Input Specification Inputs Per Module 8 Channels Single Ended, Non-Isolated Between Channel Indicators(Logic side) 8 Green Input Status Resolution in Ranges 12 bits: 2.44mV/Bit (0~10V), 1.22mV/Bit (0~5V) 0.98mV/Bit (1~5V) Input Current Ranges 0~10Vdc, 0~5Vdc, 1~5Vdc...
  • Page 26 HX-RIO3 Series 3.3.6 Data Value / Voltage Voltage Range: 0 ~ 10Vdc Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H03FF H07FF H0FFF Voltage Range: 0 ~ 5Vdc Voltage 0.0V 1.25V 2.5V 5.0V Data(Hex) H0000 H03FF H07FF H0FFF...
  • Page 27 HX-RIO3 Series Voltage Range: 1 ~ 5Vdc Voltage 1.0V 2.0V 3.0V 5.0V Data(Hex) H0000 H03FF H07FF H0FFF...
  • Page 28 HX-RIO3 Series 3.3.7 Mapping Data into the Image Table. Input Module Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Input Image Value Bit No...
  • Page 29 HX-RIO3 Series 3.3.8 Parameter Data Valid Parameter length: 10 Bytes Parameter Data Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Voltage Range for Channel 0 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc) Byte 1 Voltage Range for Channel 1 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc)
  • Page 30 HX-RIO3 Series 3.4 RIO3-AXH8V 3.4.1 Wiring Diagram Pin No. Signal Description Signal Description Pin No. Input Channel 0 Input Channel 1 Input Channel 2 Input Channel 3 Input Channel 4 Input Channel 5 Input Channel 6 Input Channel 7 Input Channel Common (AGND)
  • Page 31 HX-RIO3 Series 3.4.2 LED Indicator LED No. LED Function / Description LED Color Input Channel 0 Green Input Channel 1 Green Input Channel 2 Green Input Channel 3 Green Input Channel 4 Green Input Channel 5 Green Input Channel 6...
  • Page 32 HX-RIO3 Series 3.4.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 70℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27 Based on IEC 60068-2-6...
  • Page 33 HX-RIO3 Series 3.4.5 Specification Items Specification Input Specification Inputs Per Module 8 Channels Single Ended, Non-Isolated Between Channel Indicators (Logic side) 8 Green Input Status Resolution in Ranges 16 bits (Include Sign) 15 bits: 0.31mV/bit (0~10V), 0.15mV/bit (0~5V), 0.12mV/bit (1~5V)
  • Page 34 HX-RIO3 Series 3.4.6 Data Value / Voltage Voltage Range: 0 ~ 10Vdc Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H1FFF H3FFF H7FFF Voltage Range: 0 ~ 5Vdc Voltage 0.0V 1.25V 2.5V 5.0V Data(Hex) H0000 H1FFF H3FFF H7FFF...
  • Page 35 HX-RIO3 Series Voltage Range: 1 ~ 5Vdc Voltage 1.0V 2.0V 3.0V 5.0V Data(Hex) H0000 H1FFF H3FFF H7FFF...
  • Page 36 HX-RIO3 Series 3.4.7 Mapping Data into the Image Table. Input Module Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Input Image Value Bit No...
  • Page 37 HX-RIO3 Series 3.4.8 Parameter Data Valid Parameter length: 10 Bytes Parameter Data Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Voltage Range for Channel 0 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc) Byte 1 Voltage Range for Channel 1 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc)
  • Page 38 HX-RIO3 Series 3.5 RIO3-AX16VC 3.5.1 Wiring Diagram Pin No. Signal Description Signal Description Pin No. Input Channel 0 Input Channel 1 Input Channel 2 Input Channel 3 Input Channel 4 Input Channel 5 Input Channel 6 Input Channel 7 Input Channel 8...
  • Page 39 HX-RIO3 Series 3.5.2 LED Indicator LED No. LED Function / Description LED Color Status LED Green 3.5.3 Channel Status LED Status To indicate Disconnection G-Bus Status Green connection Field Power is Field Power Error All Channel Repeat the Green and Off...
  • Page 40 HX-RIO3 Series 3.5.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 60℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27 Based on IEC 60068-2-6...
  • Page 41 HX-RIO3 Series 3.5.5 Specification Items Specification Input Specification Inputs Per Module 16 Channels Single Ended, Non-Isolated Between Channel Indicators(Logic side) 1 Green Input Status Resolution in Ranges 12 bits: 2.44mV/Bit (0~10V), 1.22mV/Bit (0~5V) 0.98mV/Bit (1~5V) Input Current Ranges 0~10Vdc, 0~5Vdc, 1~5Vdc...
  • Page 42 HX-RIO3 Series 3.5.6 Data Value / Voltage Voltage Range: 0 ~ 10Vdc Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H03FF H07FF H0FFF Voltage Range: 0 ~ 5Vdc Voltage 0.0V 1.25V 2.5V 5.0V Data(Hex) H0000 H03FF H07FF H0FFF...
  • Page 43 HX-RIO3 Series Voltage Range: 1 ~ 5Vdc Voltage 1.0V 2.0V 3.0V 5.0V Data(Hex) H0000 H03FF H07FF H0FFF...
  • Page 44 HX-RIO3 Series 3.5.7 Mapping Data into the Image Table. Input Module Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Analog Input Ch8 Analog Input Ch9...
  • Page 45 HX-RIO3 Series Byte 16 Analog Input Ch8 Low byte Byte 17 Analog Input Ch8 High byte Byte 18 Analog Input Ch9 Low byte Byte 19 Analog Input Ch9 High byte Byte 20 Analog Input Ch10 Low byte Byte 21 Analog Input Ch10 High byte...
  • Page 46 HX-RIO3 Series 3.5.8 Parameter Data Valid Parameter length: 18 Bytes Parameter Data Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Voltage Range for Channel 0 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc) Byte 1 Voltage Range for Channel 1 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc)
  • Page 47 HX-RIO3 Series 3.6 RIO3-AX16VT 3.6.1 Wiring Diagram Pin No. Signal Description Input Channel 0 Input Channel 1 Input Channel 2 Input Channel 3 Input Channel 4 Input Channel 5 Input Channel 6 Input Channel 7 Input Channel 8 Input Channel 9...
  • Page 48 HX-RIO3 Series Input Channel 15 Input Channel Common (AGND) Input Channel Common (AGND) 3.6.2 LED Indicator LED No. LED Function / Description LED Color Status LED Green 3.6.3 Channel Status LED Status To indicate Disconnection G-Bus Status Green connection...
  • Page 49 HX-RIO3 Series 3.6.4 Environment Specification Environmental Specification Operation Temperature -40℃ ~ 60℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% Non-condensing Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27 Based on IEC 60068-2-6...
  • Page 50 HX-RIO3 Series 3.6.5 Specification Items Specification Input Specification Inputs Per Module 16 Channels Single Ended, Non-Isolated Between Channel Indicators (Logic side) 1 Green Input Status Resolution in Ranges 12 bits: 2.44mV/Bit (0~10V), 1.22mV/Bit (0~5V) 0.98mV/Bit (1~5V) Input Current Ranges 0~10Vdc, 0~5Vdc, 1~5Vdc...
  • Page 51 HX-RIO3 Series 3.6.6 Data Value / Voltage Voltage Range: 0 ~ 10Vdc Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H03FF H07FF H0FFF Voltage Range: 0 ~ 5Vdc Voltage 0.0V 1.25V 2.5V 5.0V Data(Hex) H0000 H03FF H07FF H0FFF...
  • Page 52 HX-RIO3 Series Voltage Range: 1 ~ 5Vdc Voltage 1.0V 2.0V 3.0V 5.0V Data(Hex) H0000 H03FF H07FF H0FFF...
  • Page 53 HX-RIO3 Series 3.6.7 Mapping Data into the Image Table. Input Module Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Analog Input Ch8 Analog Input Ch9...
  • Page 54 HX-RIO3 Series Byte 16 Analog Input Ch8 Low byte Byte 17 Analog Input Ch8 High byte Byte 18 Analog Input Ch9 Low byte Byte 19 Analog Input Ch9 High byte Byte 20 Analog Input Ch10 Low byte Byte 21 Analog Input Ch10 High byte...
  • Page 55 HX-RIO3 Series 3.6.8 Parameter Data Valid Parameter length: 18 Bytes Parameter Data Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Voltage Range for Channel 0 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc) Byte 1 Voltage Range for Channel 1 (H00: 0~10Vdc, H01: 0~5Vdc, H02: 1~5Vdc)
  • Page 56 HX-RIO3 Series 4 Dimension 4.1 10-Pts. Spring Type Dimensions in mm...
  • Page 57 HX-RIO3 Series 4.2 20-Pin Connector Type Dimensions in mm...
  • Page 58 HX-RIO3 Series 4.3 18-Pts. Spring Type Dimensions in mm...
  • Page 59 HX-RIO3 Series 5 Mounting Caution! Hot surface! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to be cool before touching it. Notice! Perform work on devices only if they are de-energized! Working on energized devices can damage them.
  • Page 60 HX-RIO3 Series 5.2 RTB (Removable Terminal Block) Whole terminal block can be combined and removed for the convenience. There is a locking switch on the RTB for the easy combination and easy removal. Easy combination and easy removal for IO modules on the din rail through One Touch Locking Switch.
  • Page 61 HX-RIO3 Series 6 Bus Pin Description Communication between the Network Adapter and the expansion module as well as system / field power supply of the bus modules is carried out via the internal bus. It is comprised of 6 data pin and 2 field power pin.
  • Page 62 HX-RIO3 Series 7 APPENDIX 7.1 Product List RIO3-Number Description ID (hex) Digital Input Module RIO3-XDP8 8 Points, Universal, 24Vdc, 10RTB 1238 RIO3-XDP16C 16 Points, Universal, 24Vdc, 20P connector 123F RIO3-XDP16T 16 Points, Universal, 24Vdc, 18RTB 12DF RIO3-XDP32C 32 Points, Universal, 24Vdc, 40P connector...
  • Page 63 HX-RIO3 Series RIO3-AY8I 8 CHANNELS CURRENT OUTPUT, 4~20mA, 12BIT 4218 RIO3-AY4V 4CH, 0~10Vdc, 12Bits, 10RTB 4424 RIO3-AYH4V 4CH, 0~10Vdc, 16Bits, 10RTB 4464 RIO3-AY8V 8CH, 0~10Vdc, 12Bits, 10RTB 4428 RIO3-AY16VC 16CH, 0~10Vdc, 12Bits, 20P Connector 442F RIO3-AY16VT 16CH, 0~10Vdc, 12Bits, 18RTB...
