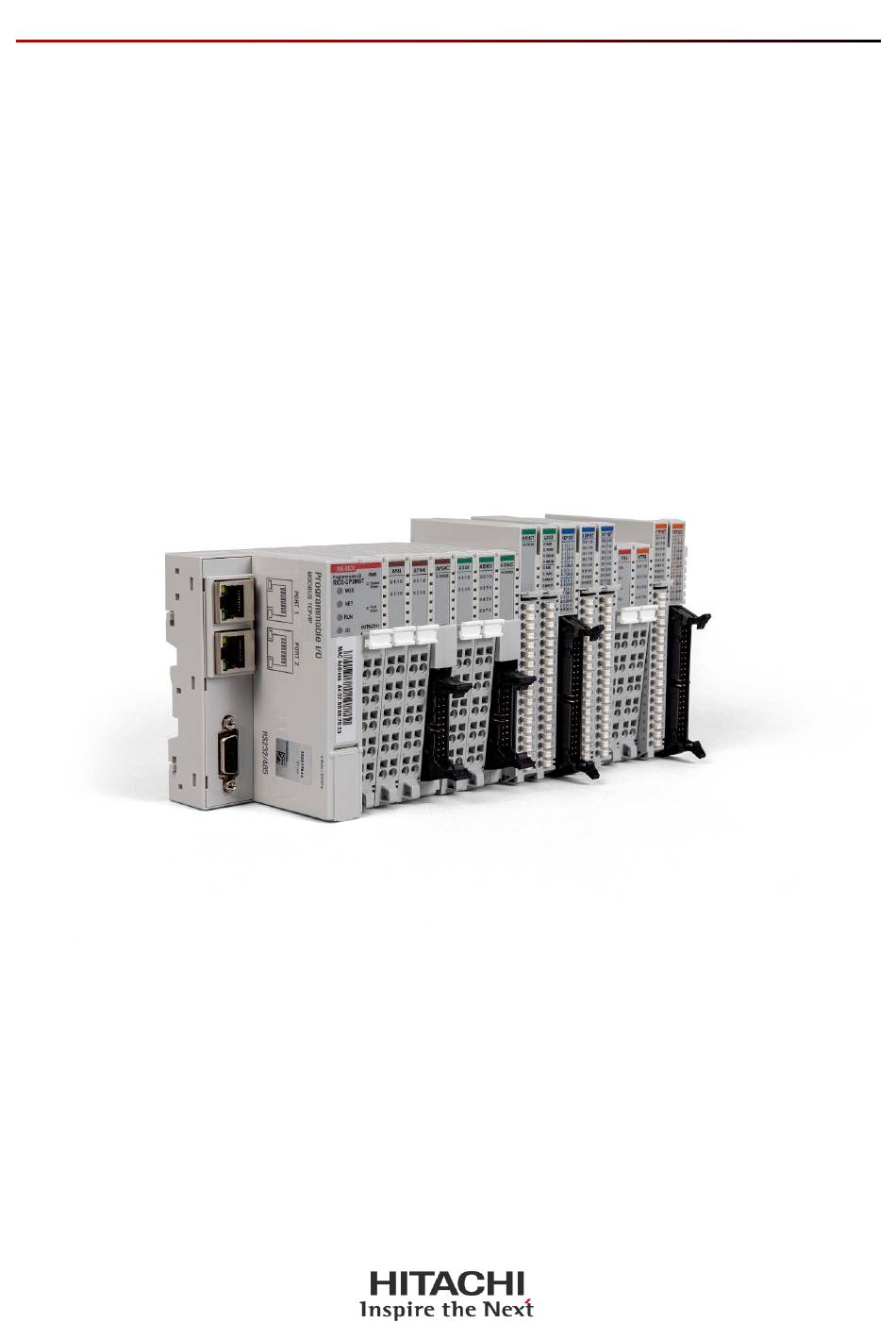

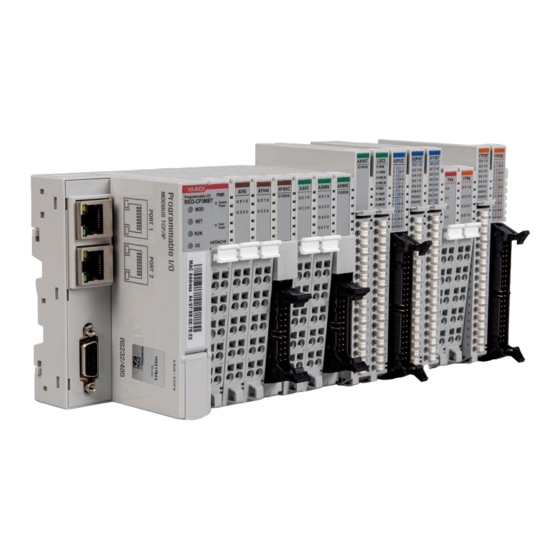

  • Page 1 HX-RIO3 Series Special I/O Module RIO3-PWM2 User Manual Version 1.00...
  • Page 2 HX-RIO3 Series REVISION HISTORY PAGE REMARKS DATE EDITOR 1.00 New Document 06 NOV 2020 (OPR), (PF)
  • Page 3: Table Of Contents

    HX-RIO3 Series Table of Contents Important Notes ............................4 Safety Instruction ..........................5 1.1.1 Symbols ............................5 1.1.2 Safety Notes ..........................5 1.1.3 Certification ............................ 5 Specification ............................... 6 RIO3-PWM2............................6 2.1.1 Wiring Diagram ..........................6 2.1.2 LED Indicator ..........................7 2.1.3...
  • Page 4: Important Notes

    In no event will HITACHI be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
  • Page 5: Safety Instruction

    HX-RIO3 Series 1.1 Safety Instruction 1.1.1 Symbols Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death property damage, or economic loss. Identifies information that is critical for successful application and understanding of the product.
  • Page 6: Specification

    HX-RIO3 Series 2 Specification 2.1 RIO3-PWM2 2.1.1 Wiring Diagram Pin No. Signal Description PWM Output Channel #0 Field Power 0V, Common PWM Output Channel #1 Field Power 0V, Common N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C.
  • Page 7: Led Indicator

    HX-RIO3 Series N.C. N.C. N.C. N.C. Shield Shield 2.1.2 LED Indicator LED No. LED Function / Description LED Color PWM Output Channel #0 Green PWM Output Channel #1 Green 2.1.3 Channel Status LED Status To Indicate No Signal Normal Operation...
  • Page 8: Specification

    HX-RIO3 Series 2.1.4 Specification Items Specification Output Specification Number of channels 2 channels Number of outputs 2 outputs, push-pull type Indicators 2 green pulse output status Output voltage 24Vdc 0.5A per channel, 1.0A per unit Output current Operating temperature -40℃ ~ 45℃: Max. 0.5A per channel 45℃...
  • Page 9: Mapping Data From The Image Table

    HX-RIO3 Series 2.1.5 Mapping data from the image table Input Image Value - 2Byte Bit No Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Byte 0 Reserved Byte 1 Reserved Output Image Value - 8Byte Bit No Bit7 Bit6 Bit5...
  • Page 10: Environment Specification

    HX-RIO3 Series 3 Environment Specification Environmental specification Operating Temperature -40℃ ~ 60℃ UL Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 85℃ Relative Humidity 5% ~ 90% non-condensing Mounting DIN Rail General Specification Shock Operating IEC 60068-2-27 Based on IEC 60068-2-6...
  • Page 11: Dimension

    HX-RIO3 Series 4 Dimension 4.1 18-Pts. Spring Type Dimensions in mm...
  • Page 12: Mounting

    HX-RIO3 Series 5 Mounting Caution! Hot surface! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it. Notice! Perform work on devices only if they are de-energized! Working on energized devices can damage them.
  • Page 13: Rtb (Removable Terminal Block)

    HX-RIO3 Series 5.2 RTB (Removable Terminal Block) Whole terminal block can be combined and removed for the convenience if its maintenance. There is a locking switch on the RTB for the easy combination and easy removal. Easy combination and easy removal for IO modules on the din rail through One Touch Locking Switch.
  • Page 14: Bus Pin Description

    HX-RIO3 Series 6 G-Bus Pin Description Communication between the Network Adapter and the expansion module as well as system / field power supply of the bus modules is carried out via the internal bus. It is comprised of 6 data pin and 2 field power pin.
  • Page 15: Product List

    HX-RIO3 Series 7 APPENDIX A 7.1 Product List RIO3-Number Description ID (hex) Digital Input Module RIO3-XDP8 8 Points, Universal, 24Vdc, 10RTB 1238 RIO3-XDP16C 16 Points, Universal, 24Vdc, 20P connector 123F RIO3-XDP16T 16 Points, Universal, 24Vdc, 18RTB 12DF RIO3-XDP32C 32 Points, Universal, 24Vdc, 40P connector...
  • Page 16: Glossary

    HX-RIO3 Series RIO3-AYH4I 4 Channels, Current Output, 4~20mA, 16bits 4254 RIO3-AY8I 8 CHANNELS CURRENT OUTPUT, 4~20mA, 12BIT 4218 RIO3-AY4V 4CH, 0~10Vdc, 12Bits, 10RTB 4424 RIO3-AYH4V 4CH, 0~10Vdc, 16Bits, 10RTB 4464 RIO3-AY8V 8CH, 0~10Vdc, 12Bits, 10RTB 4428 RIO3-AY16VC 16CH, 0~10Vdc, 12Bits, 20P Connector...
