Honeywell MIWI350 Quick Start Manual
Poweror communications box
Hide thumbs
Also See for MIWI350:
- Installation and operation manual (86 pages) ,
- Quick start manual (6 pages) ,
- Installation and operation manual (46 pages)
Advertisement
Quick Links
Product Overview
A built-in electronic cellular modem
Product Features
CSA C/US Class 1, Division 2, Group C & D
Compatible with MasterLink and PowerSpring software
Available in Wall, Pipe, and Portable mounting options
• Internal or External Mounted Display
Modem Power Control
• Optional Backup Battery for Uninterrupted EVC Functionality
Power Supply Options
AC/DC Power Supply (Refer to FD-611) - Future Release
Solar Power with rechargeable Sealed Lead-Acid Battery (Refer to FD-612)
Battery - Alkaline Packs (Dual/Quad) (Refer to FD-613)
This quick-start guide covers the Power or Communications box variant only.
General Safety Precautions
Close the door of the MIWI350 device properly
Check the lock and latchet, and lock the MIWI350 device properly
Check the padlock properly while locking the MIWI350 device
Safety and Hazardous Information
Warning
Caution
MIWI350 Power or Communications Box Quick Start Guide
or Electronic Recorder
Advertisement
Related Manuals for Honeywell MIWI350
Summary of Contents for Honeywell MIWI350

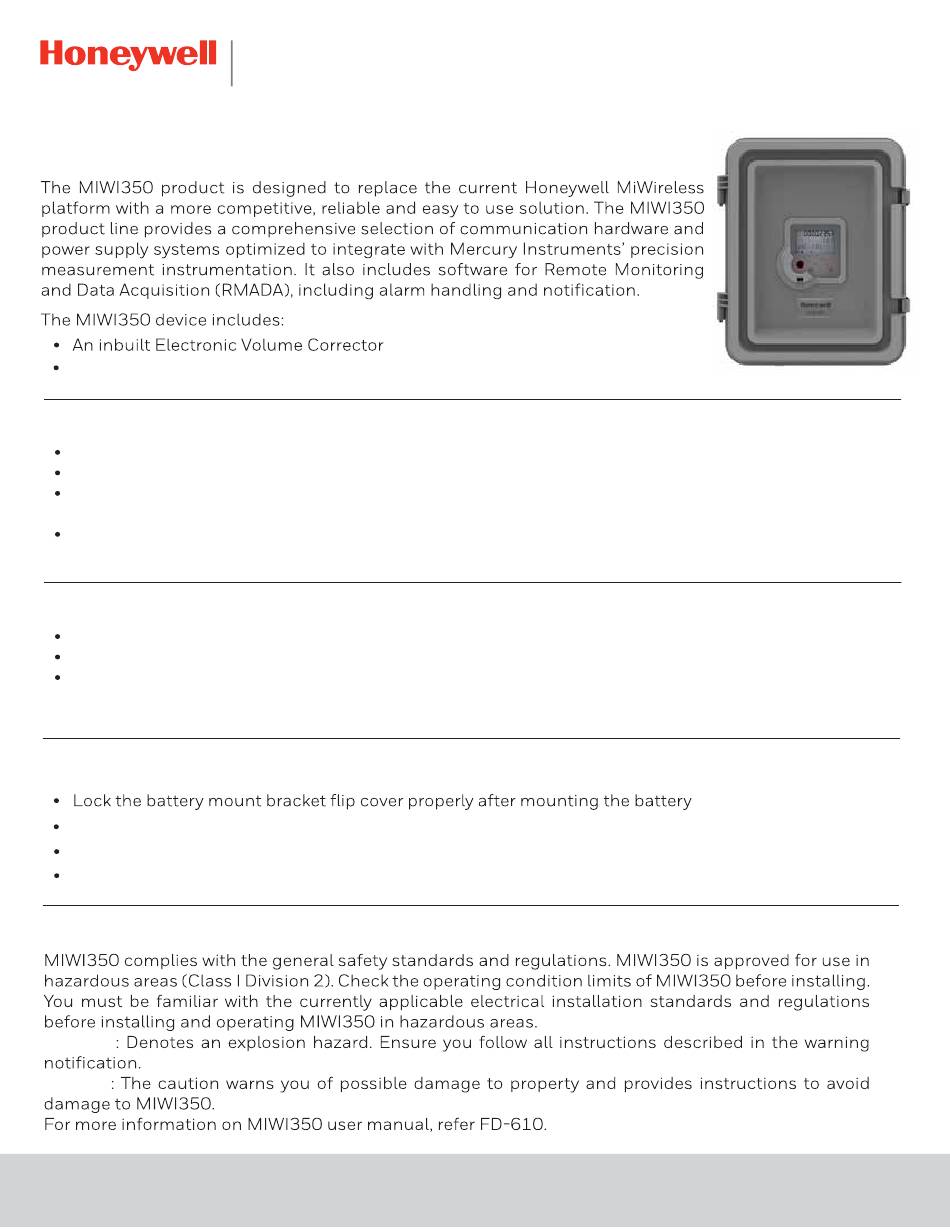

- Page 1 This quick-start guide covers the Power or Communications box variant only. General Safety Precautions Close the door of the MIWI350 device properly Check the lock and latchet, and lock the MIWI350 device properly Check the padlock properly while locking the MIWI350 device Safety and Hazardous Information...
-
