Introduction Introduction

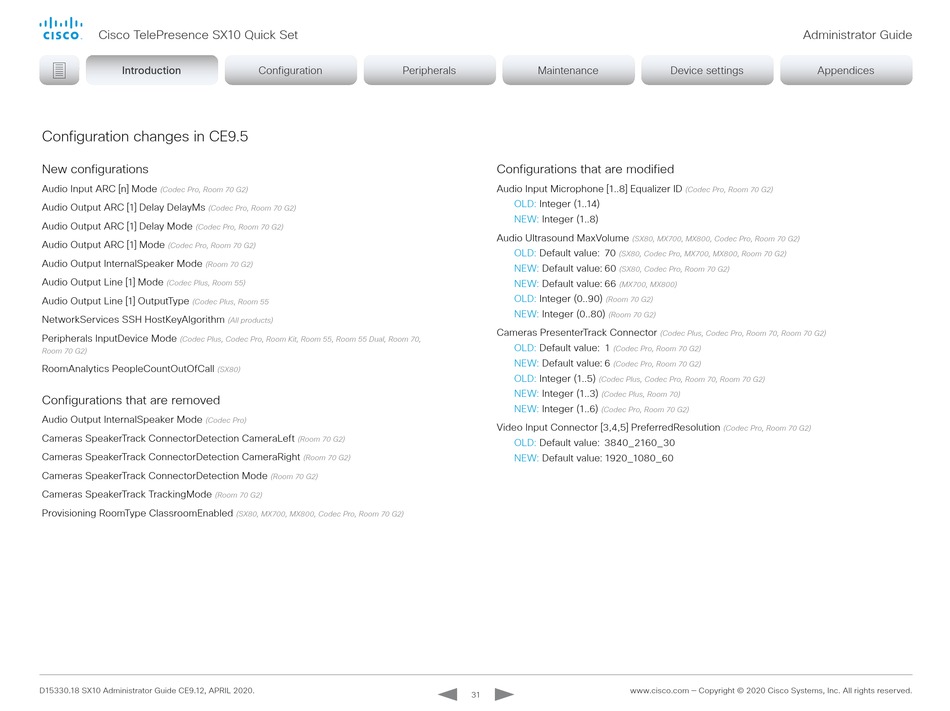

Configuration changes in CE9.5
New configurations
Audio Input ARC [n] Mode
(Codec Pro, Room 70 G2)
Audio Output ARC [1] Delay DelayMs
(Codec Pro, Room 70 G2)
Audio Output ARC [1] Delay Mode
(Codec Pro, Room 70 G2)
Audio Output ARC [1] Mode
(Codec Pro, Room 70 G2)
Audio Output InternalSpeaker Mode
(Room 70 G2)
Audio Output Line [1] Mode
(Codec Plus, Room 55)
Audio Output Line [1] OutputType
(Codec Plus, Room 55
NetworkServices SSH HostKeyAlgorithm
Peripherals InputDevice Mode
(Codec Plus, Codec Pro, Room Kit, Room 55, Room 55 Dual, Room 70,
Room 70 G2)
RoomAnalytics PeopleCountOutOfCall
(SX80)
Configurations that are removed
Audio Output InternalSpeaker Mode
(Codec Pro)
Cameras SpeakerTrack ConnectorDetection CameraLeft
Cameras SpeakerTrack ConnectorDetection CameraRight
Cameras SpeakerTrack ConnectorDetection Mode
Cameras SpeakerTrack TrackingMode
(Room 70 G2)
Provisioning RoomType ClassroomEnabled
D15330.18 SX10 Administrator Guide CE9.12, APRIL 2020.
Configuration Peripherals
(All products)
(Room 70 G2)
(Room 70 G2)
(Room 70 G2)
(SX80, MX700, MX800, Codec Pro, Room 70 G2)
Maintenance
Configurations that are modified
Audio Input Microphone [1..8] Equalizer ID
OLD: Integer (1..14)
NEW: Integer (1..8)
Audio Ultrasound MaxVolume
(SX80, MX700, MX800, Codec Pro, Room 70 G2)
OLD: Default value: 70
(SX80, Codec Pro, MX700, MX800, Room 70 G2)
NEW: Default value: 60
(SX80, Codec Pro, Room 70 G2)
NEW: Default value: 66
(MX700, MX800)
OLD: Integer (0..90)
(Room 70 G2)
NEW: Integer (0..80)
(Room 70 G2)
Cameras PresenterTrack Connector
OLD: Default value: 1
(Codec Pro, Room 70 G2)
NEW: Default value: 6
(Codec Pro, Room 70 G2)
OLD: Integer (1..5)
(Codec Plus, Codec Pro, Room 70, Room 70 G2)
NEW: Integer (1..3)
(Codec Plus, Room 70)
NEW: Integer (1..6)
(Codec Pro, Room 70 G2)
Video Input Connector [3,4,5] PreferredResolution
OLD: Default value: 3840_2160_30
NEW: Default value: 1920_1080_60
