Cobra Fi2000 Instruction Manual

Items Supplied >

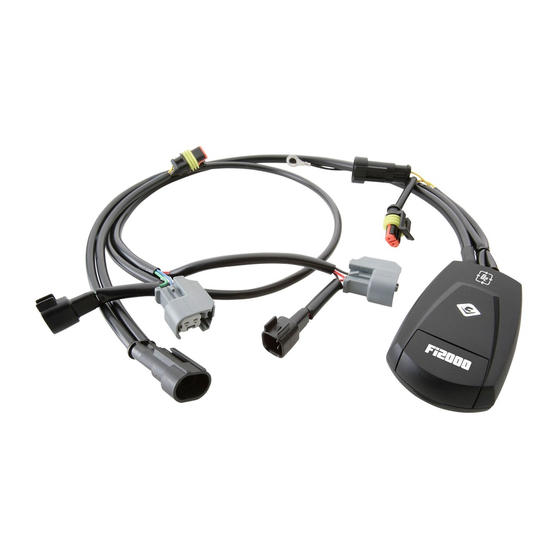

1 – Fi2000AT Fuel Injection Module
6 – Zip Ties 6"
1 – Velcro Strip
Instruction Manual >
Read all instructions carefully and completely before installing your new Fi2000AT module. It is
recommended that a qualified mechanic or technician install this product.
1. Remove the seat by removing the Phillips head screw at the rear of the seat and sliding it back. Remove the
right side panel by pulling it out of the three retaining grommets.
2. Place the Fi2000 module on top of the ECU, see Figure 1. Run the two oxygen sensor harnesses inside the
right side frame rail and plastic housing for the stock wiring. Look for the fuel tank vent hose and follow it.
3. Locate and unplug the connector for the rear oxygen sensor. Plug the male connector of the shorter oxygen
sensor harness into the connector on the oxygen sensor. Now plug the female pigtailed connector into the
connector on the motorcycle's stock harness, see Figure 2.
4. Route the longer front oxygen sensor harness along the lower frame rail with the stock wiring harness. Using
the supplied zip ties secure the harness to the lower frame rail. Make sure it is clear of any moving or hot parts.
5. Locate and unplug the connector for the front oxygen senor. Plug the male connector of the oxygen sensor
harness into the connector on the oxygen sensor. Now plug the female pigtailed connector into the connector
on the motorcycle's stock harness, see Figure 3. Using the supplied zip ties secure the oxygen sensor
connector to the small frame brace.
6. Remove the two bolts at the back of the fuel tank and raise the fuel tank as far as possible. Use a small block of
wood to prop up the tank. Note: The handlebars must be turned to one side to perform this step.
7. Route the injector harness forward up the right side of the motorcycle and under the fuel tank so it ends at the
same location the stock wiring drops down to the throttle body. Tuck the harness between the right frame rail
and plastic wiring housing.
8. Locate the factory connector on each fuel injector. Depress the tab on either side of the connector and pull the
connector free from the injector. Move it out of the way, see Figure 4. Note: A pair of needle nose pliers and a
long flat blade screwdriver helps with this job.
Attach one pair of the Fi2000 module's injector plugs to the front injector. Take the original HD connector and
9.
insert the corresponding Fi2000 connector into it. Repeat this step on the rear fuel injector.
10. Attach the ground wire to ground lug and Velcro the Fi2000 module to the top of the stock ECU, see Figure 1.
11. Verify the wire connections; turn on the ignition and watch the Fi2000 LED logo, confirm that the LED blinks
several times then turns off. If you do not see any blinking, it may be necessary to wait for the alarm to reset (if
applicable) and try again. Also confirm the side stand is up, bike is in neutral, clutch is in and handle bar engine
switch is set to run (where applicable). Start the bike and the Fi2000 logo should remain solid red, which confirm
the unit is fully functioning. If it flashes while the bike is running, turn off the bike and recheck that all harness
connections (injectors, ground wire, and O2 sensors when applicable) have been properly made. Re-verify by
turning ignition on while watching for flashing LED, prior to starting. Start and confirm LED remains ON solid red.
NOTE: Make sure ignition is turned off before attempting to change any Fi2000 harness connections.
12. Lower the fuel tank and replace the two mounting bolts. Then replace the right side panel and seat.
13.
* Cobra® recommends you always wear a helmet while riding. Please never operate your motorcycle while under
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
DOCUMENT NO. 0017 REV. A
04/11
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180, Fax. 714.692.5016
®
Application(s) >
HARLEY DRESSER
692-1612AT
1
www.fi2000r.com
2008-2009
Page 1 of 2
