Cobra Fi2000 Instruction Manual

-
Items Supplied >

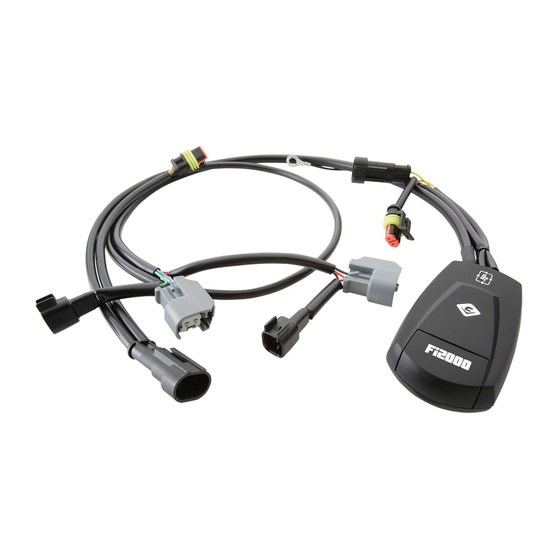

1 – Fi2000 Fuel Injection Module
1 – Zip Tie, 3/16" x 6" Long
1 – Velcro Strip
Instruction Manual >
Cobra recommends the use of the Closed Loop Module 92-1774CL or 92-1774CL-50 if your motorcycle
will continue use of the Oxygen Sensors in your exhaust System. This Fi2000 is intended for
motorcycles that will not utilize Oxygen Sensors in the fuel management system.
Read all instructions carefully and completely before installing your new Fi2000CL module.
It is recommended that a qualified mechanic or technician install this product.
Before installing the Fi2000CL it is recommended that the gas tank be low on fuel.
1. Remove the seat. Remove the two 12 mm headed bolts securing the rear of the fuel tank, prop the tank up
securely to allow access to the fuel injector connectors.
2. Position the Fi2000R
connectors forward under the seat latch bracket, under the fuel tank and along the upper left side frame rail and to
the injector area between front and rear engine cylinders, see Figure 1.
3. Locate the front and rear injectors and remove stock female connector from front injector, see Figure 2. On
Fi2000 injector harness use the longer of the two connector pairs and install the Fi2000 female connector onto the
front injector. Install the corresponding male Fi2000 connector into the stock front female injector connector.
Repeat for rear injector using the short pair of Fi2000 connectors. Be sure female connectors seat properly on
injectors and the stock connectors are fully pressed together with the Fi2000 male connectors. Tuck these
connectors out of the way and lower the fuel tank. Secure Fi2000 harness to left frame rail with 6" zip tie.
4. Remove the right side triangular plastic panel located below the painted right side cover. Push inward on the
center of the plastic peg fastener to remove it as the triangular plastic panel is pulled outward, see Figure 3.
5. Locate the stock oxygen sensor connectors, see Figure 4. Unplug this connection to allow the Fi2000R to
compensate for fuel properly. The motorcycle will run in its default open loop fuel mode allowing the Fi2000R to
take full advantage of its tuning abilities. Reinstall the triangular plastic cover over oxygen sensor connectors, be
sure plastic pin is installed correctly.
6. Clean off the top of the fuel pump tank and remove backing from supplied Velcro. Mount the Fi2000 on top of the
tank, see Figure 1. Lift up the tool tray / battery cover to access the negative post of the battery. Attach the
ground wire from the Fi2000 to the negative post. Reinstall the cover. Before reinstalling the seat, verify Fi2000
harness connections have been made properly.
7. Remove the door from the Fi2000 module to expose the LED's. NOTE: The Fi2000 base pot settings come
preset from the factory for the Stryker with full exhaust, if a slip-on is used change settings, to those in Figure 6.
Verify the wire connections by, (1), turning the ignition on while watching the 3 LED's. They will all light up for a
few seconds, and then go off. This is correct. If there are no lights visible, make sure the side stand is up, bike is
in neutral, clutch is in and handlebar engine switch is set to run. If there are still no lights visible, re-check that all
connectors are fully engaged and the ground wire is connected correctly. (2), after achieving a steady light from
all three LED's, start the motorcycle; the green light should now be the only LED on. If all three LED's are still on
after start up, verify the injector connectors are correctly attached. Reattach the access door when finished.
NOTE: Make sure the ignition is turned off before changing any connections.
* It is recommended that you always wear a helmet while riding. Please never operate your motorcycle while
under the influence of alcohol and/or drugs. Enjoy the new power of your motorcycle and please ride safely.
DOCUMENT NO. 0017 REV. A
06/11
® 23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180, Fax. 714.692.5016
module in the area under the seat, then feed the Fi2000 injector harness with the four
®
Application(s) >
YAMAHA STRYKER 1300
92-1770
1
www.fi2000r.com
2011
Page 1 of 3
