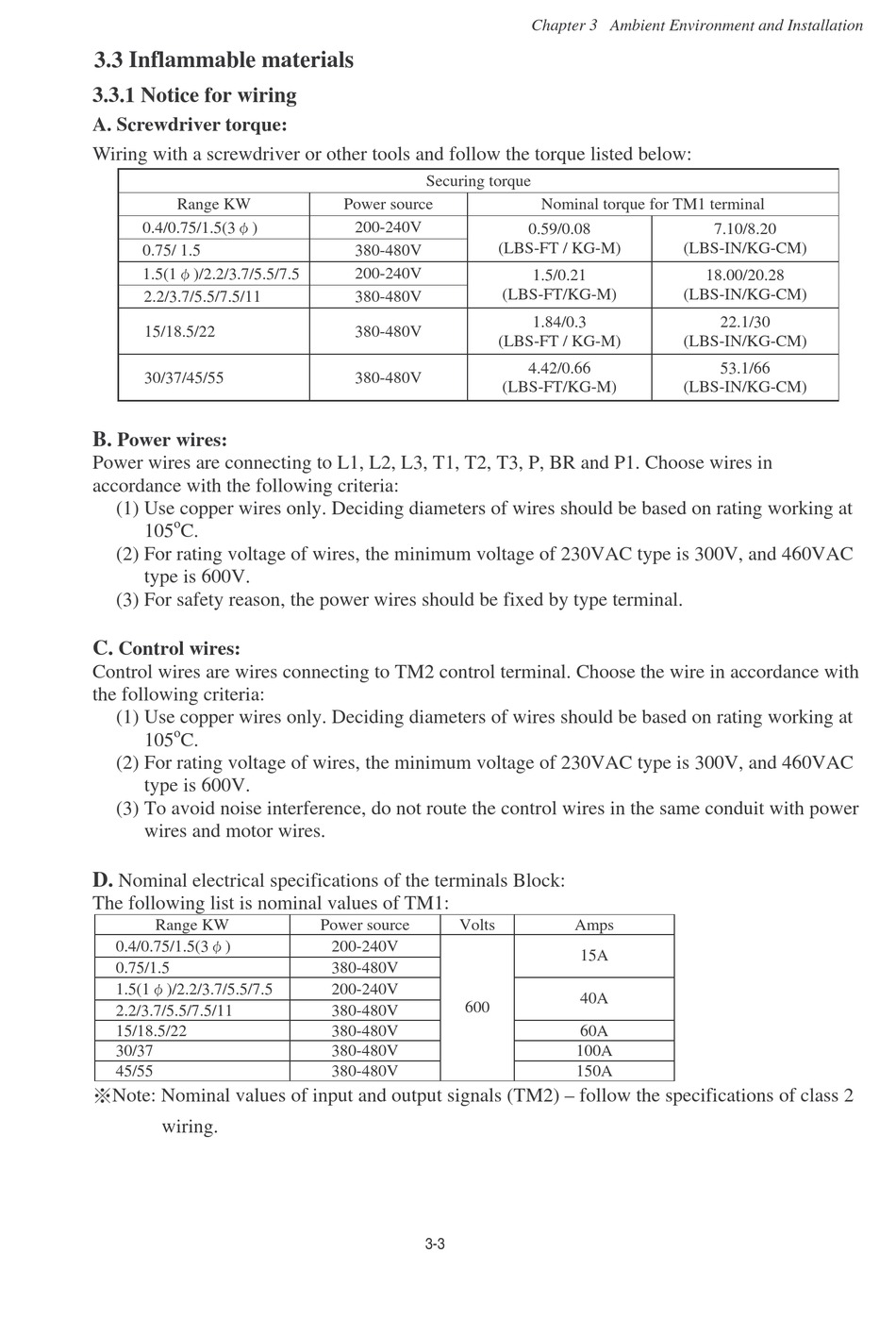

3.3 Inflammable materials

3.3.1 Notice for wiring

A. Screwdriver torque:
Wiring with a screwdriver or other tools and follow the torque listed below:
Range KW
0.4/0.75/1.5(3φ)
0.75/ 1.5
1.5(1φ)/2.2/3.7/5.5/7.5
2.2/3.7/5.5/7.5/11
15/18.5/22
30/37/45/55
B.
Power wires:
Power wires are connecting to L1, L2, L3, T1, T2, T3, P, BR and P1. Choose wires in
accordance with the following criteria:
(1) Use copper wires only. Deciding diameters of wires should be based on rating working at
o
105 C.
(2) For rating voltage of wires, the minimum voltage of 230VAC type is 300V, and 460VAC
type is 600V.
(3) For safety reason, the power wires should be fixed by type terminal.
C.
Control wires:
Control wires are wires connecting to TM2 control terminal. Choose the wire in accordance with
the following criteria:
(1) Use copper wires only. Deciding diameters of wires should be based on rating working at
o
105 C.
(2) For rating voltage of wires, the minimum voltage of 230VAC type is 300V, and 460VAC
type is 600V.
(3) To avoid noise interference, do not route the control wires in the same conduit with power
wires and motor wires.
D.
Nominal electrical specifications of the terminals Block:
The following list is nominal values of TM1:
Range KW
0.4/0.75/1.5(3φ)
0.75/1.5
1.5(1φ)/2.2/3.7/5.5/7.5
2.2/3.7/5.5/7.5/11
15/18.5/22
30/37
45/55
※Note: Nominal values of input and output signals (TM2) – follow the specifications of class 2
wiring.
Securing torque
Power source
200-240V
380-480V
200-240V
380-480V
380-480V
380-480V
Power source Volts
200-240V
380-480V
200-240V
600
380-480V
380-480V
380-480V
380-480V
3-3
Chapter 3 Ambient Environment and Installation
Nominal torque for TM1 terminal
0.59/0.08
(LBS-FT / KG-M)
1.5/0.21
(LBS-FT/KG-M)
1.84/0.3
(LBS-FT / KG-M)
4.42/0.66
(LBS-FT/KG-M)
Amps
15A
40A
60A
100A
150A
7.10/8.20
(LBS-IN/KG-CM)
18.00/20.28
(LBS-IN/KG-CM)
22.1/30
(LBS-IN/KG-CM)
53.1/66
(LBS-IN/KG-CM)
