8-13-3-1

Removal Procedure - Trackball Ring

NOTE: Removal of Trackball Ring and Cleaning does not require tools.
1.) Turn the ring counter clock-wise
2.) Lift trackball from OP Panel
8-54
3 DRAFT (J

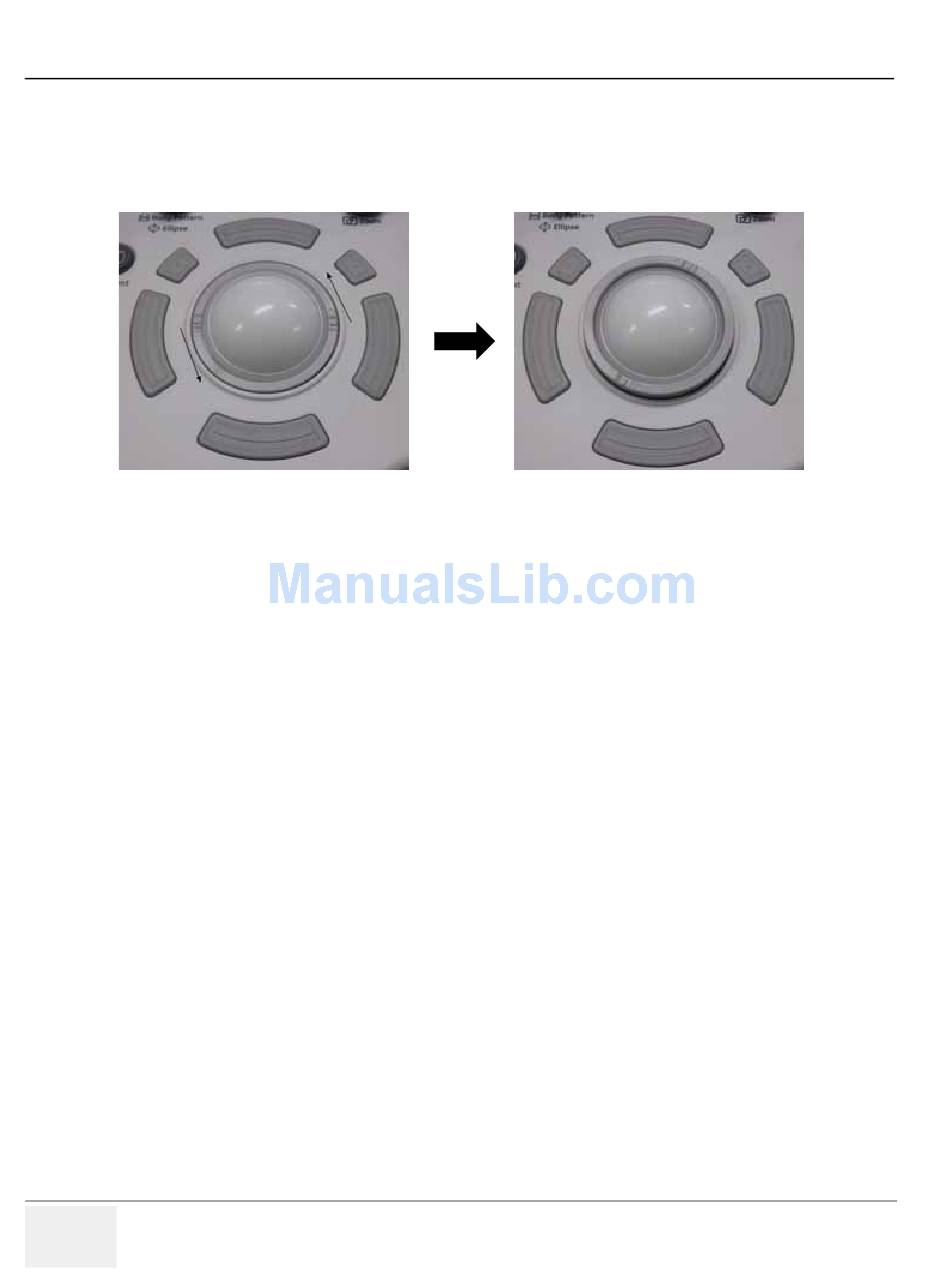

Figure 8-42 Trackball Ring
