INSTALLATION
INSTRUCTIONS
PARTS LIST

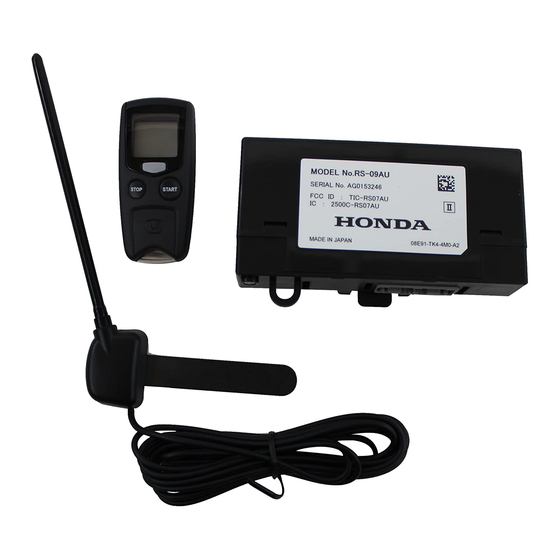

Remote Control Engine Starter Unit Kit
P/N 08E91-E22-101A
Transmitter
Control unit
Antenna
Key ring
Protective tape
Caution label
Fuse label
© 2011 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
REMOTE CONTROL
ENGINE STARTER
Accessory User's
Information Manual
Quick start guide
Remote Control Engine Starter Attachment Kit
P/N 08E92-SZA-100
Engine starter harness
Control unit bracket
Template
2
Flange nut
AII 46393 (1108)
Application
2012 PILOT
Relays
Publications No.
AII 46393
Issue Date
AUG 2011
1 of 21
08E92-SZA-1000-91
