INSTALLATION
INSTRUCTIONS

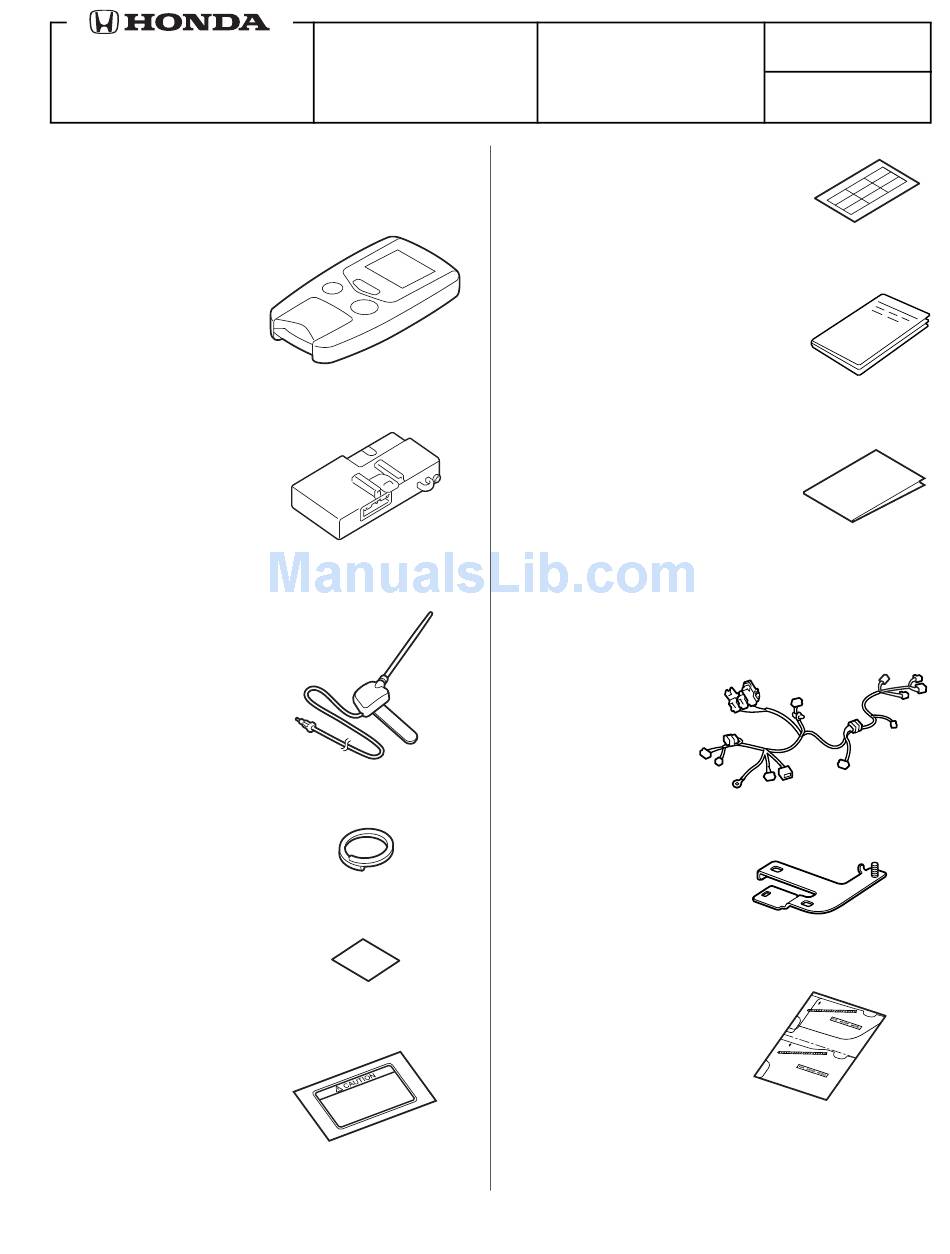

PARTS LIST

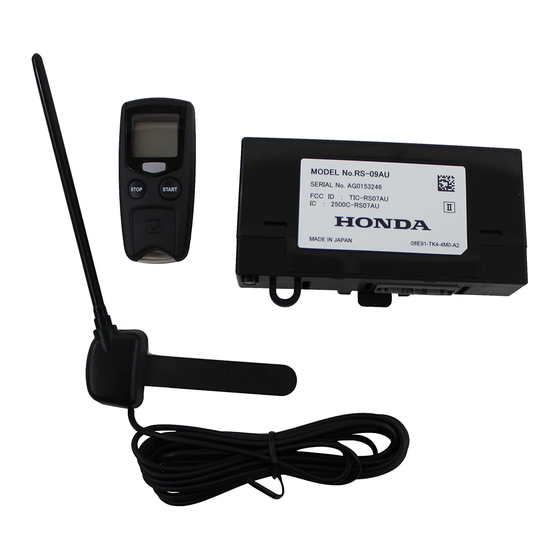

Remote Engine Starter Unit Kit
P/N 08E91-E22-101A
Transmitter
Control unit
Antenna
Key ring
Protective tape
Caution label
© 2011 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
REMOTE CONTROL
ENGINE STARTER
Fuse label
Accessory User's Information Manual
Quick start guide
Remote Control Engine Starter Attachment Kit
P/N 08E92-TA0-101
Engine starter harness
Control unit bracket
Template
AII 46522 (1108)
Application
2012 ACCORD
2-DOOR
(A/T ONLY)
08E92-TE0-1000-91
Publications No.
AII 46522
Issue Date
AUG 2011
1 of 23

Advertisement

loading

Related Manuals for Honda 08E91-E22-101A

Summary of Contents for Honda 08E91-E22-101A

  • Page 1 Remote Control Engine Starter Attachment Kit P/N 08E92-TA0-101 Antenna Engine starter harness Key ring Control unit bracket Protective tape Template Caution label 1 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108) 08E92-TE0-1000-91...

  • Page 2: Tools And Supplies Required

    Make sure you have the anti-theft code for the radio, then write down the radio station presets. Disconnect the negative cable from the battery. 2 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 3 SW:2 Trunk or Tailgate ----------------------> OFF SW:3 Smart Entry -----------------------------> OFF SW:4 Horn or Buzzer Answerback ------> OFF SW:5 Trunk Main SW -------------------------> OFF SW:6 Reserve ----------------------------------> ON 3 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 4 6 CLIPS 3 HOOKS HOOK WEATHERSTRIP 6D1805BY 10. Lower the tilt lever and pull the steering wheel out. LEFT FRONT DOOR SILL TRIM 711106BY 4 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 5 The upper screws are self-tapping screws. ROOF CONSOLE STEERING COLUMN SUNGLASS LOWER HOLDER 4 SCREWS COVER Open. 7215020Y SELF-TAPPING SCREWS SCREW 7111090Y 5 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 6 LEFT A-PILLAR 2 CLIPS TRIM HOLDER FLAT-TIP SCREWDRIVER Push and hold tab. Rotate WEATHERSTRIP towards the door. LEFT Push upward. SUNVISOR Turn rearward. 6D18070Y 6 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 7 23. Install the three relays into the engine starter relay blocks. 4-PIN RELAYS BOLT HANDS- FREELINK ENGINE CONTROL STARTER UNIT VEHICLE HARNESS BOLT 28-PIN 732903BY CONNECTOR RELAY BLOCKS 6D1802BY 7 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 8 A loose connector can cause the engine to stall. VEHICLE BRACKET BRAKE PEDAL BRACKET 6D1810AY 12-PIN/8-PIN/5-PIN CONNECTOR 8 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 9 12-pin connector into the turn signal switch. HARNESS ENGINE STARTER HARNESS 12-PIN CONNECTORS 8-PIN VEHICLE 12-PIN CONNECTORS CONNECTOR WIRE TIES 6D1816BY TURN SIGNAL SWITCH ENGINE STARTER HARNESS 6D18141Y 9 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 10 UNIT TIES ENGINE STARTER HARNESS VEHICLE HARNESS 20-PIN CONNECTOR VEHICLE HARNESS 20-PIN WIRE TIE ENGINE STARTER CONNECTOR VEHICLE 20-PIN HARNESS 6D1819EY CONNECTOR 6D1818AY 10 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 11 WIRE TIE CONNECTOR FUSE BOX Loosely secure. ENGINE STARTER HARNESS Push. Pull. Push. Lock Connector Unlock Connector 6D1823DY VEHICLE HARNESS ENGINE STARTER 6D1820AY HARNESS 11 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 12 VEHICLE 20-PIN DUMMY CONNECTOR CONNECTOR OTHER ENGINE STARTER ACCESSORY HARNESS CONNECTOR ENGINE STARTER HARNESS 20-PIN CONNECTOR 12-PIN CONNECTOR 6D1825AY ENGINE STARTER HARNESS 6D1822BY 12 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 13 HARNESS VEHICLE BOLT Discard. VEHICLE HARNESS GROUND ENGINE STARTER BOLT HARNESS GROUND TERMINAL WIRE TIES HOOD Attach loosely. OPENER VEHICLE HARNESS 6D18290Y 6D18270Y 13 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 14 ANTENNA CABLE 390 mm 20 mm 771013AB URETHANE TAPE 20 mm 620 mm ANTENNA CABLE Cut. URETHANE TAPE USE 1/2 URETHANE TAPE 7111110Y 14 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 15 VEHICLE PANEL ANTENNA CABLE TEMPLATE VEHICLE HARNESS PLATE ADHESIVE ANTENNA BACKING 771014AB Cut. URETHANE TAPE 6D18420Y 15 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 16 STARTER Loosely attached. HARNESS attached. 64. Secure the antenna cable to the engine starter harness with the four wire ties you loosely attached. 16 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 17 VEHICLE ENGINE STARTER FRAME HARNESS CLIP 28-PIN CONNECTOR CONTROL UNIT CONTROL UNIT BRACKET FLANGE CONTROL UNIT 6D1847BY 6D1849AY 17 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 18 Take care not to pinch the airbag with the clip during reinstallation of the A-pillar trim. Do not push excessively on the A-pillar trim. 18 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 19 HDS, then click the check button. Select “R/C ENG STARTER.” CHECK BUTTON 752504AS Input the VIN and other required CHECK BUTTON information. 752502AS 19 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
  • Page 20 The date of the HDS tester should also be the same. Input the PCM Code. Select “REGISTER REMOTE CONTROL CHECK BUTTON ENGINE STARTER UNIT.” 752506AS CHECK BUTTON 752509AS 20 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 21 “Check that the engine can be started by the Transmitter.” CHECK BUTTON 752511AS 13. Perform the function test on page 22, then disconnect the HDS. 21 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)

  • Page 22: Function Check

    Check the operation of the transmitter when the vehicle is 100 m to 150 m (325 ft. to 490 ft.) away and when the vehicle is in direct sight. 22 of 23 AII 46522 (1108) © 2011 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 23 Press and release the Stop button. 10. Perform the function check on both transmitters. NOTE: Only 2 remotes can be stored in the system’s memory. 23 of 23 © 2011 American Honda Motor Co., Inc. – All Rights Reserved. AII 46522 (1108)
