Sealey AK2932 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
‰
equipment, make sure you know where the nearest fire extinguisher is.
WARNING! Always wear approved eye / face protection when operating the torch.
‰
WARNING! Do not use the torch if you notice damage to the workpiece or if there could be a gas leak from it.
‰
WARNING! Butane gas is extremely flammable, handle with care.
‰
WARNING! Always point the torch away from the eyes and body when igniting and during operation.
‰
WARNING! Do not put the torch down when it is lit, do not leave it unattended.
‰
WARNING! The flame is not easily visible in the bright daylight.
‰
WARNING! Ensure the flame is completely extinguished after use. Do not use water to cool the torch down.
‰
WARNING! Only use in a well ventilated area.
‰
DO NOT use the torch in an area where paint fumes, solvents or other flammable solids, liquids or gases pose a potential
8
hazard. Keep flammable material away from the torch when operating.
DO NOT operate the torch when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT hold any workpiece by hand.
8
DO NOT touch the workpiece close to the heated area as it will be very hot. Allow to cool.
8
DO NOT operate the torch if it is damaged as this may cause failure and/or possible personal injury.
8
DO NOT touch the top of the torch during or immediately after use, as it will be very hot. Allow to cool.
8
DO NOT allow children to operate the torch.
8
After use, apply the safety lock and allow the torch to cool before storing it.
9
When not in use, store away from direct sunlight in a safe, dry, childproof location.
9
DO NOT store at over 40°C, such as in a car in hot weather.
8
2. INTRODUCTION
Heavy-duty butane powered heating and soldering torch. Fitted with piezoelectric ignition with anti-flare burner, ignition lock and continuous
flame switch. Produces an adjustable flame with a maximum temperature of 1300°C and will operate on a single fill for up to 75 minutes.
© Jack Sealey Limited

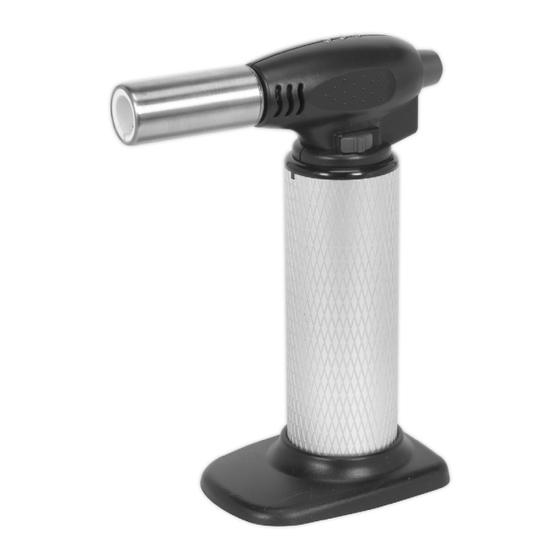

HEAVY-DUTY BUTANE SOLDERING TORCH
MODEL NO:
Wear protective
clothing
Original Language Version
AK2932
AK2932 Issue 2 14/04/23
