Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear eye
instruction
protection
manual
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this
equipment.
WARNING! Always wear approved eye or face protection when operating the torch.
WARNING! Butane gas is extremely flammable. Handle with care.
WARNING! Always point the torch away from the eyes and body when igniting and during operation.
WARNING! Ensure the gas controller knob is firmly closed and the flame completely extinguished after use.
WARNING! DO NOT puncture the cartridge or dispose of in a fire.
DO NOT operate the torch when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT hold the work piece by hand. Use clamps or a vice (not included) to secure the workpiece.
8
DO NOT operate the torch if any parts are damaged or missing as this may cause failure and/or possible personal injury.
8
DO NOT touch the workpiece close to the heated area as it will be very hot. Allow to cool.
8
DO NOT touch the burner tube during or immediately after use as it will be very hot. Allow to cool.
8
DO NOT leave the torch operating unattended.
8
DO NOT use this torch continuously for longer than one hour.
8
DO NOT allow children to operate the torch.
8
Disconnect the gas cartridge when not in use. Store cartridge away from direct sunlight in a safe, dry, childproof area, where the
9
temperature will not exceed 40
After use, allow the torch to cool before storing it.
9
IMPORTANT! Observe cautions on the gas cartridge label.
2. INTRODUCTION
Compact, high capacity burner head with push-button piezoelectric ignition. 1750°C Adjustable burner flame size gives wide application
possibilities. Ideal for occasional plumbing tasks where space may be limited. Accepts standard Butane self-sealing cartridges (not included).
© Jack Sealey Limited
MICRO BUTANE SOLDERING/HEATING
TORCHES
MODEL NO:
Wear protective
clothing
C (104
F).
o
o

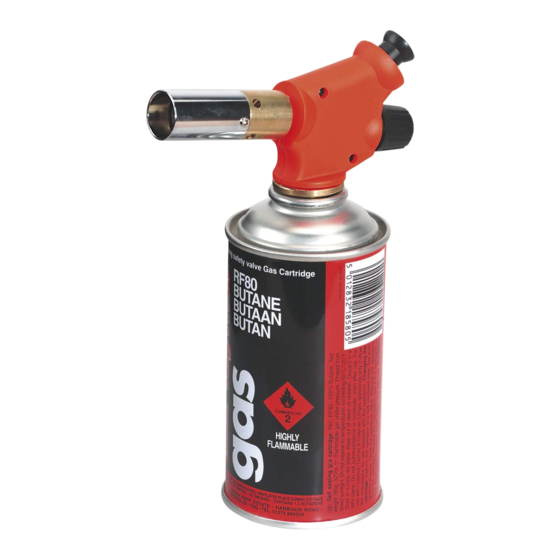

Burner tube
AK2955
Original Language Version
AK2955
Piezo electronic
ignition
Gas controller knob
Connector
Gas cartridge
AK2955
Issue 2 (H,F)
10/05/23
