Canopy Kit

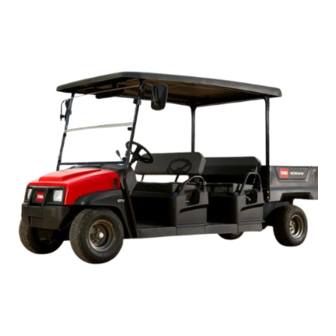

Multi-Passenger Workman
Model No. 07141—Serial No. 316000501 and Up
This product contains a chemical or chemicals known to the State of California to
Installation
1
Preparing the Machine
No Parts Required
Procedure
1. Park the machine on a level surface, set the parking
brake, shut off the engine, and remove the key from
the ignition switch.
2. Remove the rear seats.
3. Raise the cargo box to the dump position.
© 2016—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
WARNING
CALIFORNIA
Proposition 65 Warning
cause cancer, birth defects, or reproductive harm.
Register at www.Toro.com.
®
GTX Utility Vehicle
Original Instructions (EN)
All Rights Reserved *3406-327* A
Printed in the USA
Form No. 3406-327 Rev A
Installation Instructions
