Mounting, wiring, interfaces
13.2.5

Operator panel and operator panel with display

Operator panels are designed to be installed e.g. in the front panels of
motor control centers or in switchgear cabinet doors.
Install as follows:
Step
1 Make a cutout, e.g. in the front panel or switchgear cabinet door. Dimensions
(see Fig. 13-4 and 13-5).
2 Position the operator panel or the operator panel with display in the cutout.
3 Snap the four mounting brackets onto the operator panel
4 Lock the operator panel in position by tightening the four mounting bracket
screws.
Table 13-1: Sequence for installing the operator panel/operator panel with display
Operator panel
Cutout

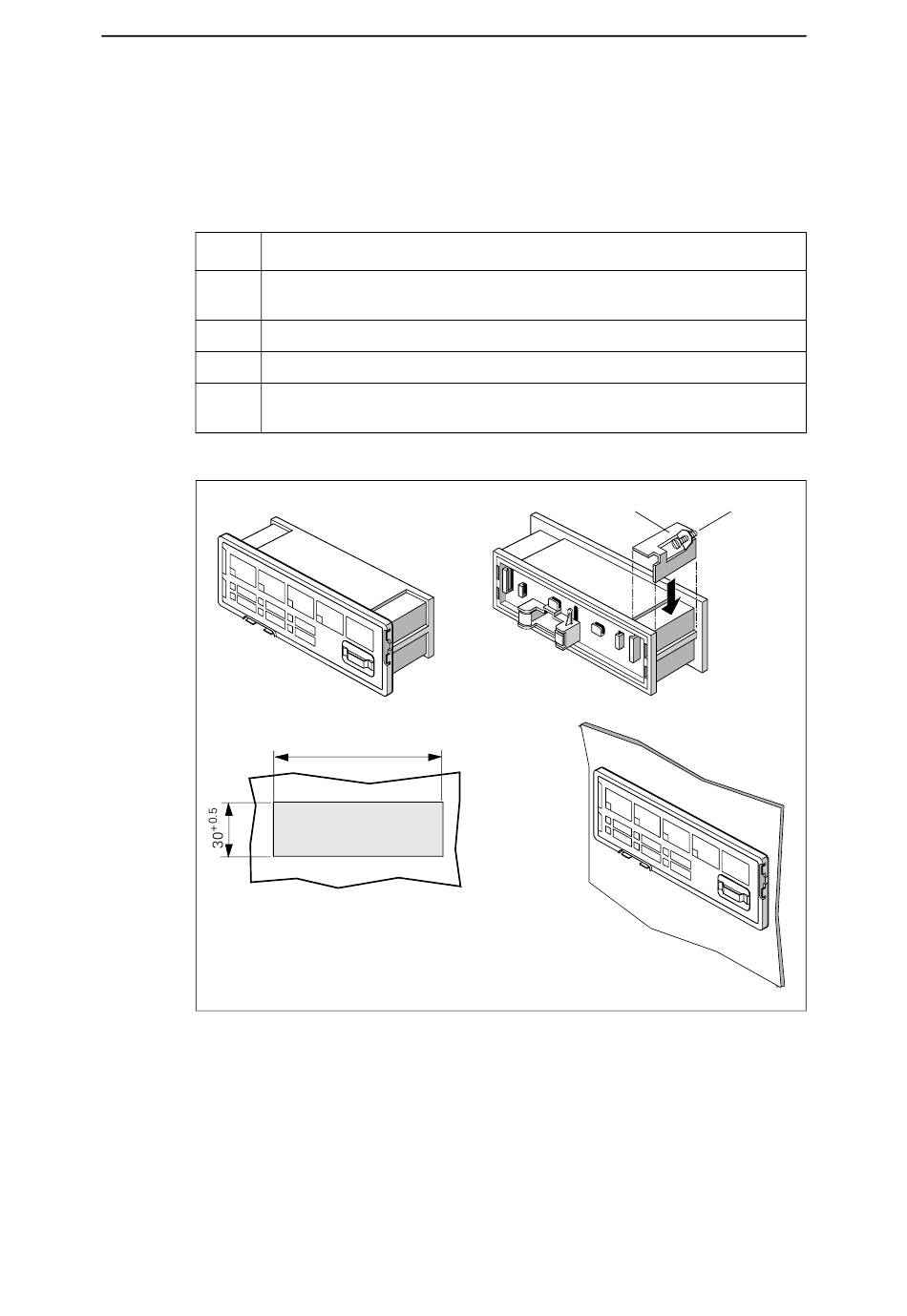

Fig. 13-4: Mounting the operator panel
13-8
Description
+0.5
90
Front panel
switchgear
cabinet door
etc.
Mounting bracket 4 x 0.15 + 0.05 Nm
SIMOCODE pro
