Commissioning and service
14.2

Commissioning

14.2.1

Sequence

Please observe the information in the previous Chapter
about commissioning and service" on Page
To commission SIMOCODE pro, proceed as follows:
Step
Description
1
Switch on the supply voltage. In a fault-free state, the following LEDS should
light up or flash green:
• "Device" (lights up)
• "Bus" if PROFIBUS DP is connected (lights up or flashes).
Continue with step 2.
Otherwise, carry out diagnostics according to the LED display.
You will find further information in Chapter
on the basic unit and on the operator
2
If you wish to make SIMOCODE pro available on the PROFIBUS DP , set the
PROFIBUS DP address. You will find further information about this in Chapter
"Setting the PROFIBUS DP address" on Page
3
Parameterize SIMOCODE pro or check the existing parameterization e.g. with
a PC via SIMOCODE ES software.
For this, connect the PC/programming device to the system interface with the
PC cable (see the figure below).
Notice
For basic unit 1 (SIMOCODE pro C), only use the front system interface!
4
Start SIMOCODE ES.
Table 14-1: Commissioning the basic unit

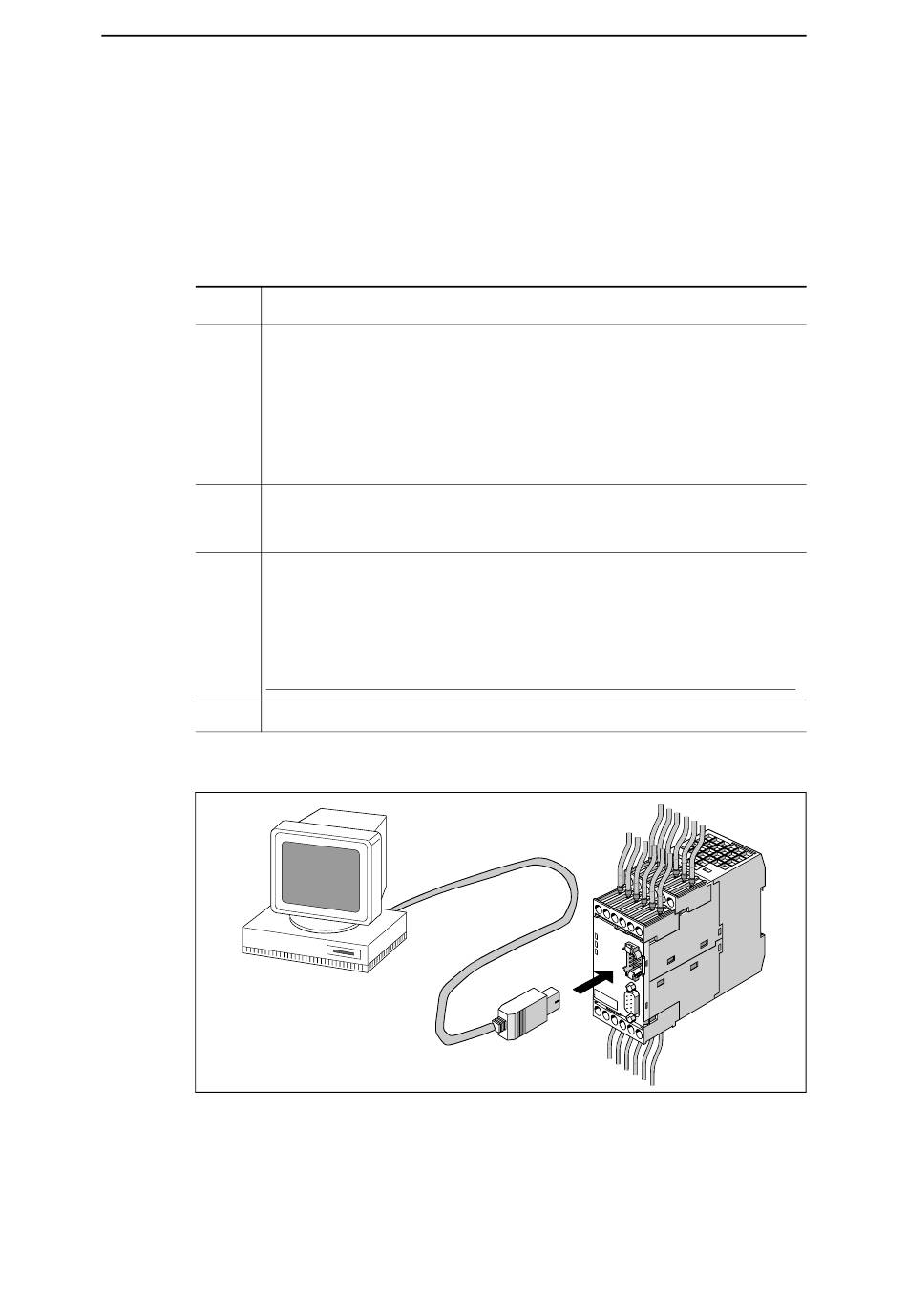

Fig. 14-1: Connecting a PC to the basic unit
14-4
14-2.
14.2.3 "Diagnostics via LED display
panel". Try to rectify the fault.
PC cable,
Order No. 3UF7940-0AA00-0
"General information
14-5.
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
