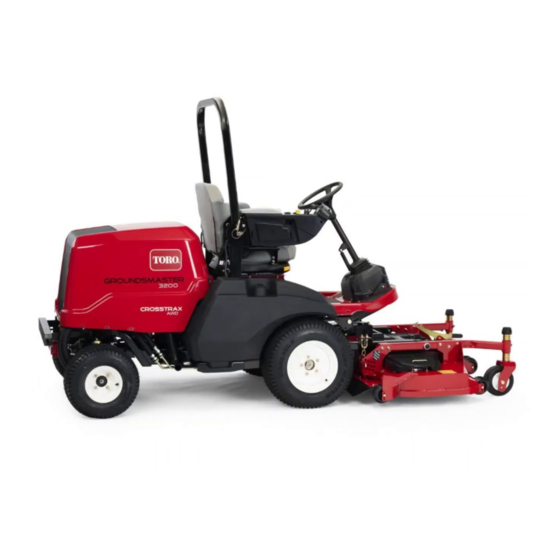

Toro Groundsmaster 3200 Series Installation Instructions
Hide thumbs
Also See for Groundsmaster 3200 Series:
- Service manual (274 pages) ,
- Operator's manual (44 pages) ,
- Installation instructions manual (24 pages)
Advertisement
Quick Links
Slow-Moving Vehicle Kit
Groundsmaster
Model No. 139-2339
Installation
1
Preparing the Machine
No Parts Required
Procedure
1.
Park the machine on a level surface.
2.
Engage the parking brake.
3.
Lower the cutting unit.
4.
Shut off the engine and remove the key.
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
3200 or 3300 Series Traction Unit
Installing the Sign
Parts needed for this procedure:
Procedure
Register at www.Toro.com.
2
1
Slow-moving vehicle sign
1
Sign mount
2
Bottom mount
5
Flat washer
7
Flange-head bolt (1/4 x 3/4 inch)
7
Locknut (1/4 inch)
1.
Remove 4 plastic rivets from the hood as shown
in
Figure
1.
Figure 1
1. Plastic rivets
Original Instructions (EN)
All Rights Reserved *3435-923* A
Printed in the USA
Form No. 3435-923 Rev A
Installation Instructions
g307903
Advertisement
Related Manuals for Toro Groundsmaster 3200 Series
Summary of Contents for Toro Groundsmaster 3200 Series
- Page 1 Shut off the engine and remove the key. Remove 4 plastic rivets from the hood as shown Figure g307903 Figure 1 1. Plastic rivets © 2019—The Toro® Company Register at www.Toro.com. Original Instructions (EN) All Rights Reserved *3435-923* A 8111 Lyndale Avenue South Printed in the USA...
- Page 2 Align the sign mount to the hood in the same Install the slow-moving vehicle sign as shown location as plastic rivets removed in step Figure (Figure Install the sign mount using 4 flange-head bolts (1/4 x 3/4 inch) on top of the hood, and 2 bottom mounts and 4 locknuts (1/4 inch) on the bottom of the hood (Figure...
