Mitsubishi Electric AE630-SW Instruction Manual page 15

●(E) Connector for BIF-CC connection
This connector is used for connection to BIF-CC.
Wiring connection is shown as below.
BIF-CC
●(F) IEC rail latch
This is used to attach the BIF-CON to a IEC mounting rail.
IEC rail installation is shown in
BIF-CON

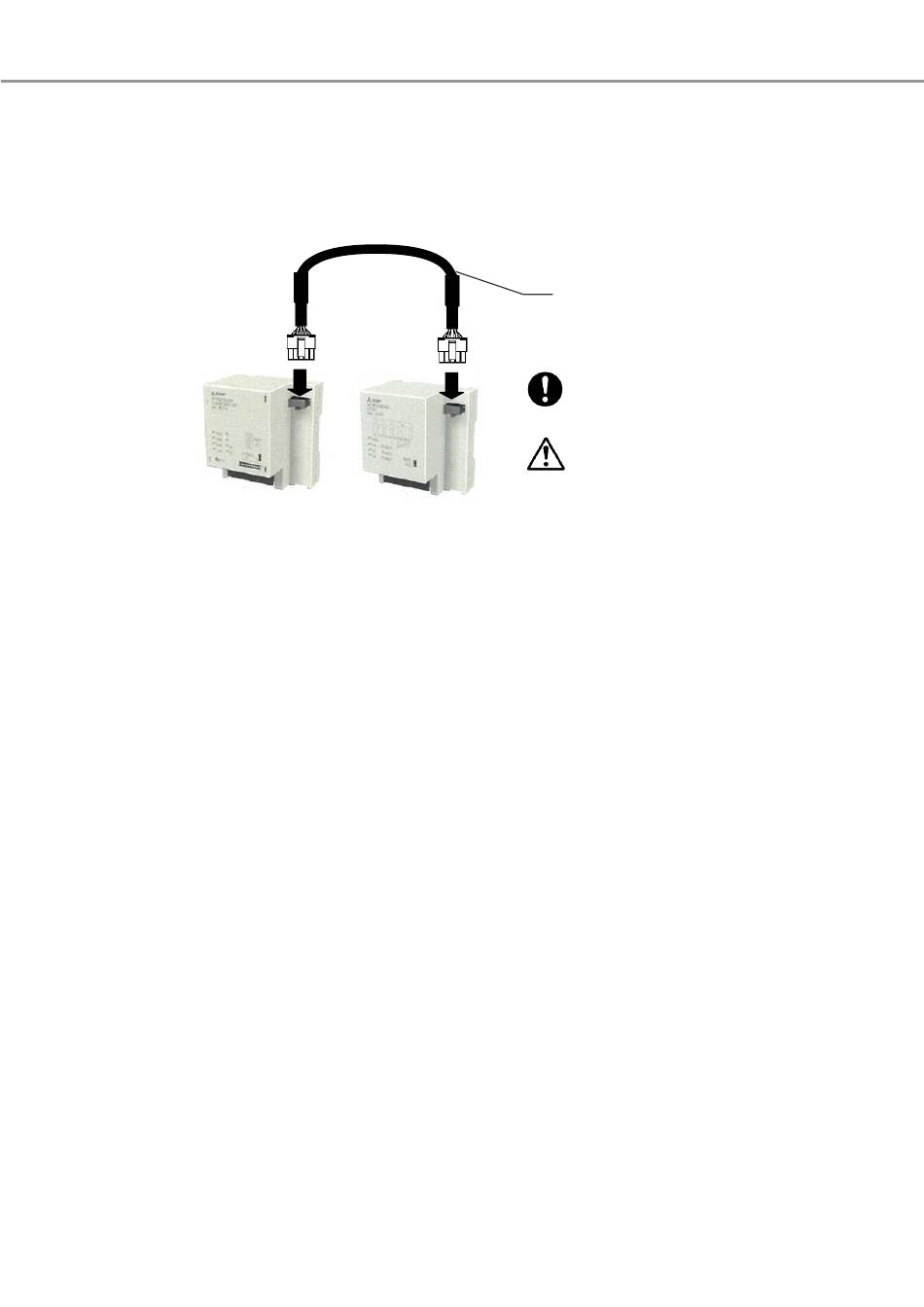

Fig 3.13 Wiring Connection
"4.1 IEC rail installation" .
E-15
BIF-CON cable (200mm)
(*attached to BIF-CON)
Keep distance more than
100mm from the power
distribution circuit.
Hot plugging is not
permitted
