Block Diagram

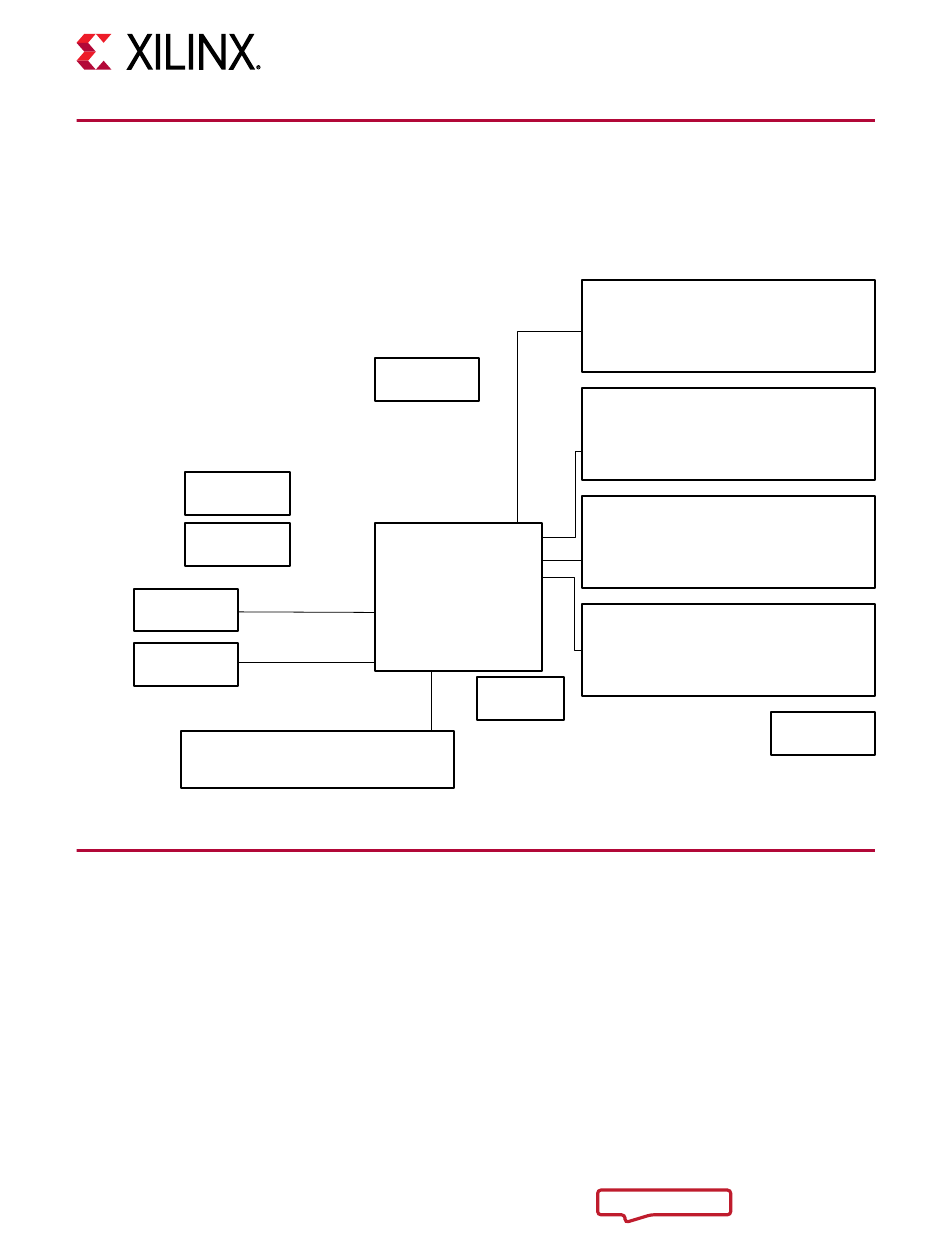

The block diagram of the Alveo U200/U250 accelerator card is shown in the following figure.
XADC
LEDs
QSFP #2
QSFP #1
PCIe GEN1/2/3 x 1/2/4/8/16

Card Features

The Alveo U200/U250 accelerator card features are listed in this section. Detailed information
for each feature is provided in
• Alveo U200 accelerator card:
Virtex UltraScale+ XCU200-2FSGD2104E FPGA
○
• Alveo U250 accelerator card:
Virtex UltraScale+ XCU250-2LFIGD2104E FPGA
○
UG1289 (v1.1.1) November 20, 2019
Alveo U200 and U250 Accelerator Cards
Figure 2: Card Block Diagram
Clocks
U200: XCU200 D2104
U250: XCU250 D2104
QSPI
Chapter 3: Card Component
Chapter 1: Introduction
288-pin DIMM interface
64-bit + ECC dual rank support
x4/x8 UDIMM support
PC4-2400 compatible
C0
288-pin DIMM interface
64-bit + ECC dual rank support
x4/x8 UDIMM support
PC4-2400 compatible
C2
288-pin DIMM interface
64-bit + ECC dual rank support
x4/x8 UDIMM support
PC4-2400 compatible
C3
288-pin DIMM interface
64-bit + ECC dual rank support
x4/x8 UDIMM support
PC4-2400 compatible
C1
Description.
